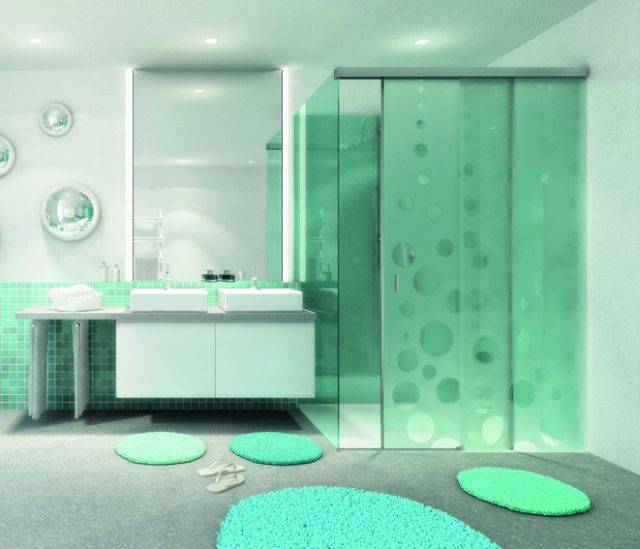

Banio 40 GF Glass Wall Mounting (Shower enclosure hardware)

Application

Suitable for sliding door combinations in locations such as:

  • Bathrooms.
  • All-glass shower cubicles in combination with fixed glass panels.
  • All-glass doors.
  • Private living areas.
  • Interior furnishings.

Description

Designed for one top-running all-glass door, weighing up to 40 kg. The glass is held at the top by two glass clamp shoes that are connected to the running gear. The running equipment moves inside a running track that is also equipped with a fixed glass holder. The soft closing is mounted invisibly in the running track.


Features and benefits:

  • Invisible technology and clean profiles create transparency.
  • Invisible soft close in opening and closing direction.
  • Integrated into running track.
  • Multiple hardware combinations are available.
  • Hygienic use – Sliding doors that pivot without the need for tools, spray and leak-proof closures.
  • Efficient and economical – Simple, quick assembly and installation.


Suitable for use with door panels:

  • Panel thickness: 8–10 mm.
  • Maximum panel width: 800 mm. 1200 mm glass wall.
  • Maximum panel height: 2200 mm. 2450 mm glass wall.
  • Maximum panel weight: 40 kg.


Components:

  • Quantities of each component may vary dependent on variant specified, consult manufacturer for details.
  • Fittings available individually or in set with track.
  • Spare parts available on request.
  • Clip-on panel, to obscure running track.
  • Set for glass wall mounting (clip-on panel).
  • Wall mounting set.
  • Corner connector.
  • Running track.
  • Bottom guide.
  • Panel.

General information

Finish

Anodized

Gloss

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Door track and running gear

P21/350 Door track and running gear

Product range

Glass Sliding Doors

Specification data - Door track and running gear Enhanced data

Material/ Finish

Anodized.

Gloss.
