Bailey System 5000 FR Self-Adhesive (Warm Roof)

Verified by manufacturer 22 days ago

Bailey

Flame retardant self-adhesive waterproofing system for flat roofs.

Jump to:
+4401403 261844 Website

Application

  • Suitable for refurbishment or new build.
  • Can be used for many types of roof, including flat, pitched and barrel vaulted.
  • May also be used on waveform roofs or those with a distinctive design and shape.

Description

Flame retardant torch-on waterproofing system for flat roofs.


Features and benefits:

  • Does not require the use of primer.
  • Secure, durable covering for flat roofs.
  • Manufactured with an untearable, spun bond polyester carrier, with an SBS modification giving it great flexibility.
  • Resistant to UV light.
  • Life expectancy in excess of 30 years.
  • Best suited to projects where a high performance product is a key requirement.

General information

Color

Black

Guidance for specification option:

Charcoal.

Finish

Mineral

Material

Bitumen

Guidance for specification option:

Spun bond polyester carrier, coated in polyalphaolefin (PAO) modified bitumen.

Shape

Rectangle

Length

6000 mm

Width

1000 mm

Height

4.0 mm

Warranty description

30 year

Guidance for specification option:

Consult manufacturer for details.

Uniclass

Ss_30_40_30_72 Reinforced bitumen membrane warm roof covering systemsPrimary

CAWS

J41/110 Built-up reinforced bitumen membrane warm deck roof covering

J41/10 Reinforced bitumen membrane warm deck roof covering

Specification data - Reinforced bitumen membrane warm roof covering systems

Classification data

Preparation

-

Horizontal work

Bailey self-adhesive membrane primer.

Guidance for specification option:

22 L cannister.

Skirtings and vertical work

Bailey self-adhesive membrane primer.

Guidance for specification option:

22 L cannister.

Air and vapour control layer

-

Type

Bailey Alpha-Bar aluminium cored-bitumen self-adhesive vapour barrier.

Attachment

Self-adhered.

Insulation

-

Type

Bailey Sure-Therm PIR glass tissue-faced flat board insulation, __ mm.

Guidance for specification option:

Insert requirements.

Bailey Sure-Therm PIR glass tissue-faced tapered insulation scheme, __ falls.

Guidance for specification option:

Insert requirements; .standard falls: 1:80, 1:60, 1:40.

Non-standard falls available.

Bailey Sure-Therm non-combustible mineral wool flat board, __ mm.

Guidance for specification option:

Insert requirements.

Bailey Sure-Therm non-combustible mineral wool tapered insulation scheme, __ falls.

Guidance for specification option:

Insert requirements; .standard falls: 1:80, 1:60, 1:40.

Non-standard falls available.

Fixing

Sure-Bond PU insulation adhesive.

Waterproof covering

-

Intermediate layer

-

Type

Bailey Universal 3 mm self-adhesive underlay.

Attachment

Self-adhered.

Top layer

-

Type

Bailey System 5000 FR self-adhesive mineral capsheet.

Attachment

Self-adhered.

Detail work

-

Flashings

Bailey Universal 3 mm self-adhesive underlay and System 5000 FR self-adhesive mineral capsheet.

Skirtings and upstands

Bailey Universal 3 mm self-adhesive underlay and System 5000 FR self-adhesive mineral capsheet.

Welted drips

System 5000 FR self-adhesive mineral capsheet.

Cover strips

System 5000 FR self-adhesive mineral capsheet.

Surface protection

Bailey 300 g/m² geotextile protection fleece.

System accessories

Not required.
Outlets - specified below.

Guidance for specification option:

See 'Outlets' for details.

Bailey Sure-flow stainless steel leaf guard - F-631-L.
Bailey Sure-flow stainless steel parapet leaf guard - F-632-LP.
Bailey Sure-flow stainless steel cylindrical leaf guard - F-633-LC.
Bailey Sure-flow stainless steel balcony leaf guard - F-634-LB.
Bailey Flow-therm standard retaining unit - 25–105 mm - F-652-25/105.
Bailey Flow-therm parapet leaf guard - 110 mm - F-663-110.
Bailey Flow-therm parapet leaf guard - 75 mm - F-663-75.
Bailey Flow-therm parapet connecting pipe - 110 mm - F-664-110.
Bailey Flow-therm parapet connecting pipe - 75 mm - F-664-75.

Execution

-

Manufacturer guidance

Bailey System 5000 FR should only be installed by approved or registered contractors, experienced and trained in the installation of torch-on products.

Outlets

Bailey Sure-flow stainless steel outlet - 40 mm (felt flange) - F-630–40.
Bailey Sure-flow stainless steel outlet - 50 mm (felt flange) - F-630–50.
Bailey Sure-flow stainless steel outlet - 62 mm (felt flange) - F-630–62.
Bailey Sure-flow stainless steel outlet - 70 mm (felt flange) - F-630–70.
Bailey Sure-flow stainless steel outlet - 75 mm (felt flange) - F-630–75.
Bailey Sure-flow stainless steel outlet - 95 mm (felt flange) - F-630–95.
Bailey Sure-flow stainless steel outlet - 110 mm (felt flange) - F-630–110.
Bailey Sure-flow stainless steel outlet - 145 mm (felt flange) - F-630–145.
Bailey Sure-flow stainless steel outlet - 160 mm(felt flange) - F-630–160.
Bailey Sure-flow stainless steel parapet outlet - 110 mm (felt flange) - F-635–110.
Bailey Sure-flow stainless steel parapet outlet - 50 mm (felt flange) - F-635–50.
Bailey Sure-flow stainless steel parapet outlet - 75 mm (felt flange) - F-635–75.
Bailey Sure-flow stainless steel roof vent (felt flange) - F-636.
Bailey Flow-therm standard outlet - 110 mm (felt flange) - F-650–110.
Bailey Flow-therm standard outlet - 160 mm (felt flange) - F-650–160.
Bailey Flow-therm standard outlet - 75 mm (felt flange) - F-650–75.
Bailey Flow-therm standard extension unit - 60 -220 mm (felt flange) - F-651-120/220.
Bailey Flow-therm standard extension unit - 80–160 mm (felt flange) - F-651-80/160.
Bailey Flow-therm parapet outlet - 110 mm (felt flange) - F-662-110.
Bailey Flow-therm parapet outlet - 75 mm (felt flange) - F-662-75.

Sustainability data

Contains Red List materials

No

Material

Bitumen

Guidance for specification option:

Spun bond polyester carrier, coated in polyalphaolefin (PAO) modified bitumen.

Literature

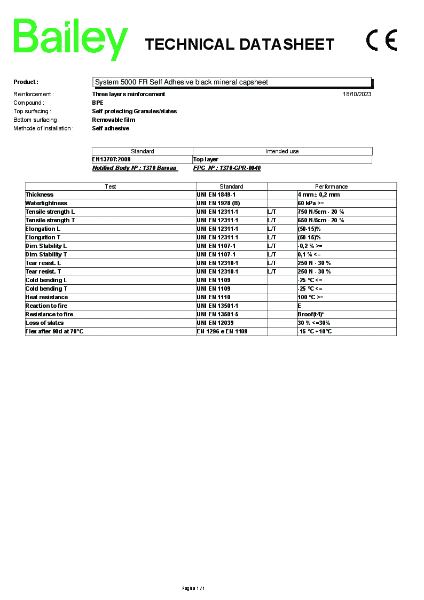

System 5000 FR Self Adhesive Black Mineral Capsheet
