Bailey Laser-Line™ Soffit/Fascia Carcassing Support System - Secondary support for eaves profiles
Verified by manufacturer 6 days ago
Pre-fabricated one-piece component eaves support.
Application
Suitable for use in combination with other Bailey products such as I-Line, Platinum Modular, Platinum Linear or V-Plank soffit systems and Bailey Rainwater Systems to create complete eaves features to meet both aesthetic and functional requirements.
Description
As a single component, often for the entire eaves installation, Laser-Line™ eliminates the use of separate rails, angles and channels, thus reducing the time taken to install secondary support and removing the problems of aligning separate components.

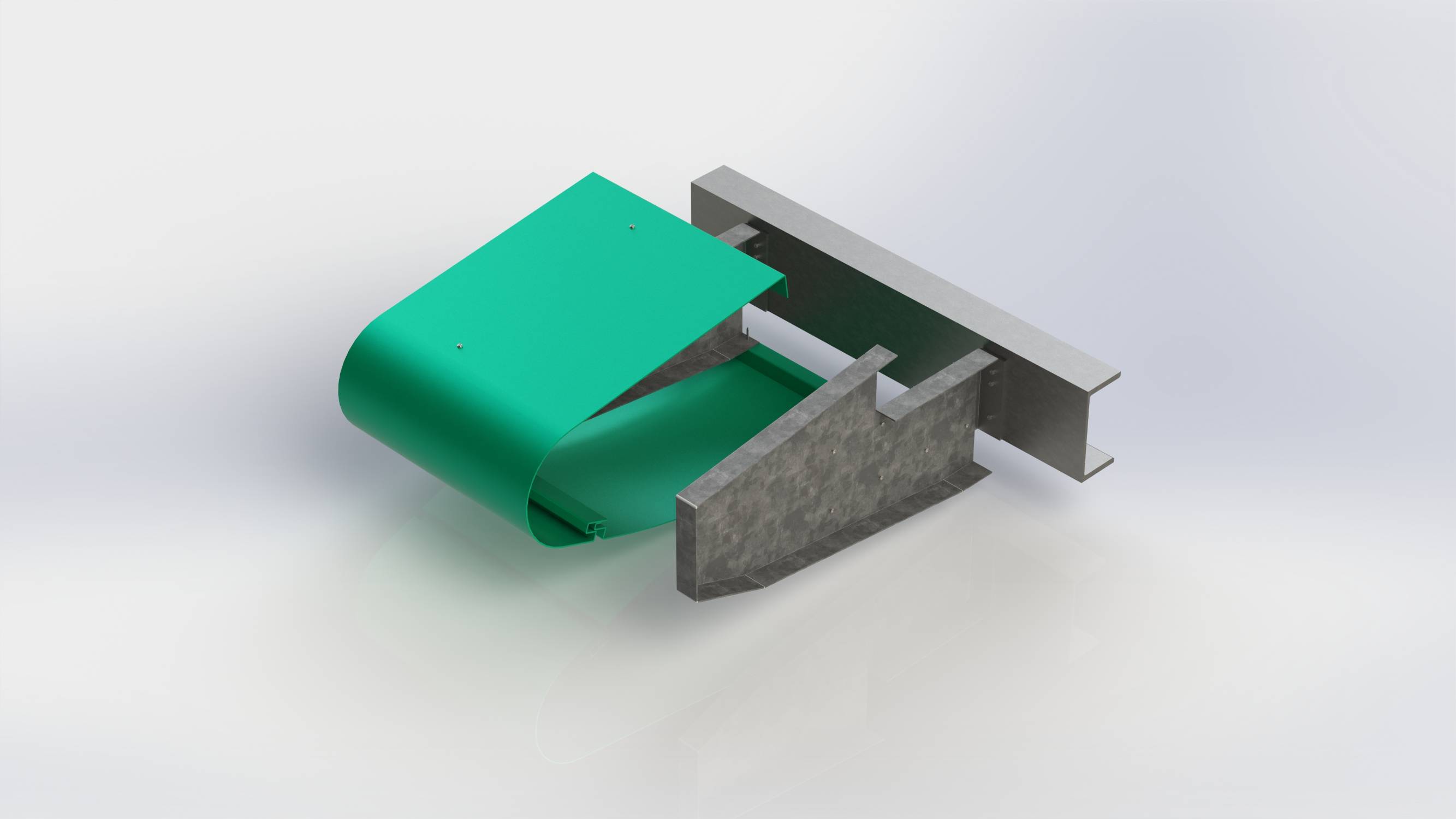

Laser-Line™ consists of a profiled support plate accurately
punched and folded from sheet metal and a bracket to attach it to a structure. Because manufacture takes place off site, accuracy of each component is more easily obtained, making overall on-site accuracy easier to achieve.
Features and benefits:
- Faster installation.
- More accurate.
- More cost effective.
General information
Color | Manufacturer guidanceProduct is supplied in a natural galvanised steel or Mill aluminium finish |
Finish | Galvanized |
Material | Steel |
Shape | Manufacturer guidanceThe product shape is designed to accommodate the external eaves profile required. |
Length | Bespoke Manufacturer guidanceLength refers to projection outwards from the building face. This is limited to 1m maximum. |
Width | Bespoke Manufacturer guidanceThis refers to the return flanges around the perimeter of the bracket, which are 50mm as standard. |
Height | Bespoke Manufacturer guidanceThis refers to the vertical dimension of the bracket and is variable up to 900mm maximum |
Uniclass | |
CAWS | H65/365 Eaves H62/365 eaves H62/47 Eaves H61/47 Eaves |
Product range |
Specification data - Galvanized steel brackets
Product Reference | Bailey Laser-Line™ |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Steel |
