Bailey Fleet™ Face Fixed Rainscreen Panel - ACM replacement cladding
Verified by manufacturer 6 days ago

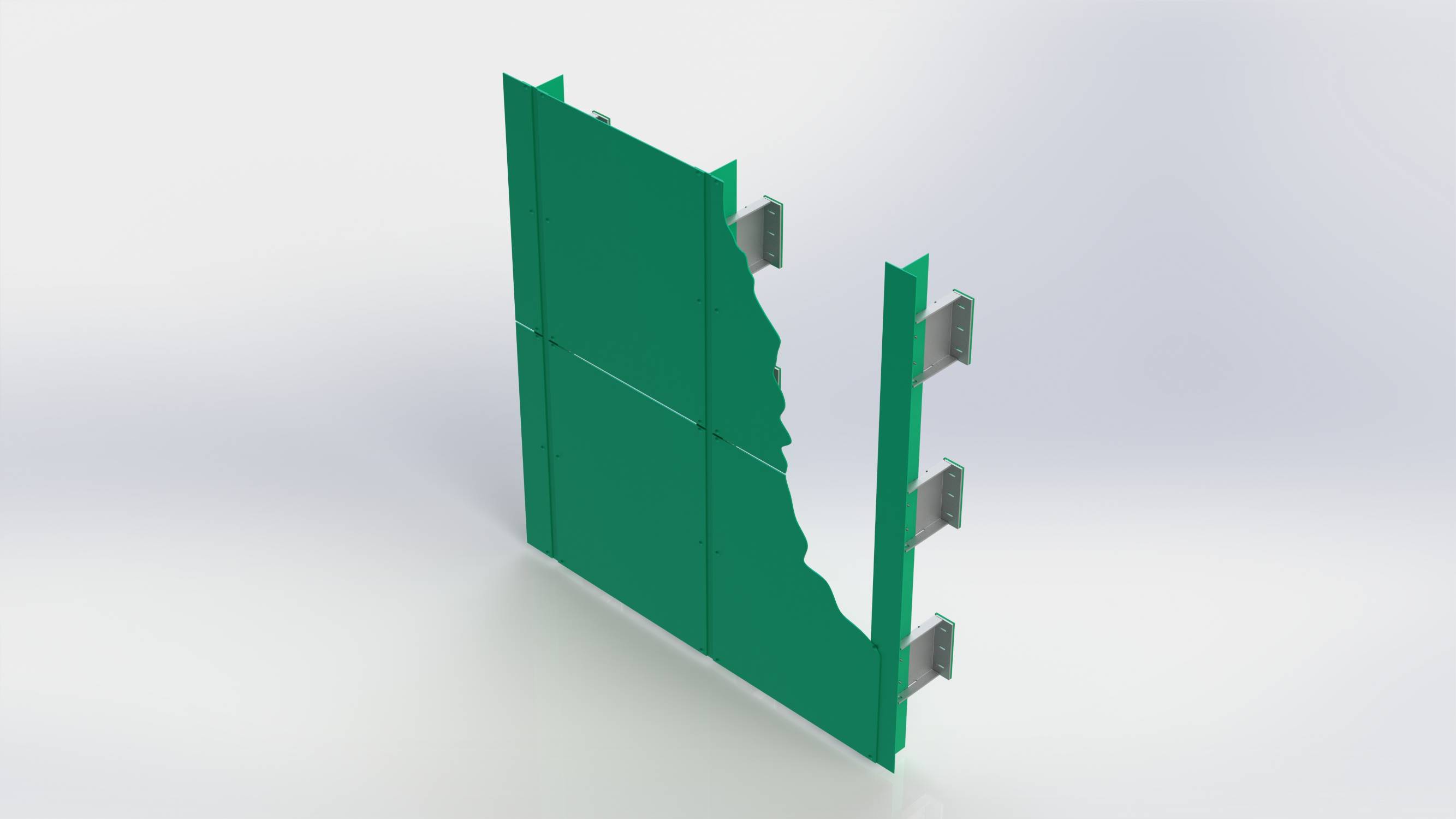

Curved or flat, face fixed system with design flexibility.
Application
- Direct replacement for non-compliant ACM cladding on fire regulation remediation projects.
- Used in conjunction with Bailey Samson® Helping Hand Brackets.
Description
A cost effective cladding system that can be applied to a wide range of sizes and materials. It has the flexibility to remain entirely flat or to gently curve around a building’s contours with relative ease. Its simple design allows the fastest possible installation and a crisp finish.
Features and benefits:
- Design and manufacture time can be reduced due to simplicity.
- Easy to install system.
- Most lightweight in our rainscreen range.
- Panel removal is also quick making panels easy to replace and without the need for 3D parts.
- Takes up a fraction of the site space of a folded system.
- Fire rated A2 - s1, d0 in any polyester powder coated finish.
General information
Finish | Anodized Powder-coated |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | 3 mm |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Product range |
Specification data - Drained and back-ventilated rainscreen cladding systems
Cladding panels | |
Material | Aluminium. |
System accessories | Not required.Mechanically fixed stiffeners.Fusion (aluminium honeycomb).Guidance for specification option: Aluminium honeycomb that is bonded to the back of the standard rainscreen systems to ensure flatness and robustness |
Material Finish | PPC. Anodized. Corten. |
Thickness | 40 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Aluminium |
Recyclability | 100% |
Expected Life | 30 year |
Literature
Fleet Rainscreen System
