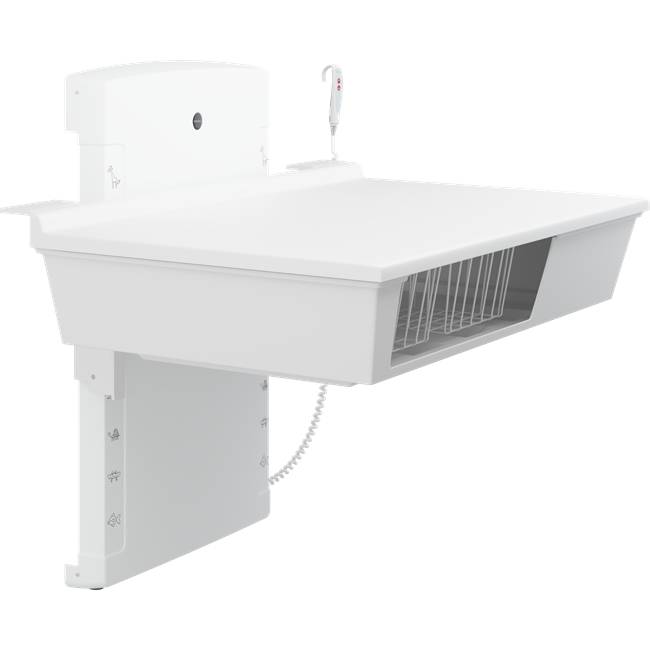

Baby and small child changing table, low start 800 x 1400 mm, electrically height adjustable R8662000 - Baby Changing Unit
Verified by manufacturer 27 days ago
UK Conformity Assessed (UKCA)
Certificate type
Baby and small child changing table. Low start, wallhung changing table, with a 75 kg safe working load (SWL). Height adjustable, with wired hand control and safety stop.
Application
Particularly suitable for use in daycare facilities and kindergartens.
Description
Baby and small child changing table, with a safe working load (SWL) of 75 kg.
Features and benefits:
- Low start - ergonomic.
- Wall hung changing table, 800 x 1400 mm.
- Safe working load (SWL) of 75 kg.
- Height adjustable from 300–1000 mm, with wired hand control and safety stop function.
- Provides safe working heights for carers/ assistants.
- Easy-to-clean surfaces ensure optimum hygiene.
- Integrated safety system prevents entrapment.
Mattress
- Mattress must be ordered separately.
- R8703000 white.
- R8703438 pastel blue.
- R8703432 medium grey.
- R8703378 navy blue.
Optional safety rail and end guard available.
General information
Color | White |
Finish | Powder-coated |
Material | Acrylonitrile butadiene styrene (ABS) Steel |
Shape | Rectangle |
Length | 1400 mm |
Width | 800 mm |
Height | Bespoke Manufacturer guidanceHeight adjustable from 300–1000 mm. |
Warranty description | Three year |
Uniclass | |
CAWS | N13/494 Baby changing units |
Specification data - Baby changing units
Form | Wall-mounted. |
Material | Moulded worktop in ABS plastics, synthetic acrylic and powder-lacquered steel. |
Finish and colour | White. |
Size (nominal) | 800 x 1400 mm. |
Integral accessories | Two wire baskets. |
Verification | |
Submittals | Guidance for specification option: Insert details. |
Timing | Guidance for specification option: Insert details. |
Height | 300–1000 mm, adjustable. |
Maximum weight | 75 kg. Manufacturer guidanceMaximum user weight (MUM) and safe working load (SWL). |
Speed | Downwards: 38 mm/s. |
Noise | 48 dB. |
Mains | 230 V, 50/60 Hz. |
Ingress protection (IP) rating | IPX0. |
Actuator | LA31 Deskline (Linak), 2500N, IPX1. |
Control | Control box: CBD6 (Linak), IP20. |
Power consumption | Maximum: 96 W. |
Weight | 65 kg. |
Accessories | Not required. Sanitary appliances. Pull-out shower head. Taps. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) Steel |
Third party certifications
UK Conformity Assessed (UKCA)
UKCA for R8662000
Literature

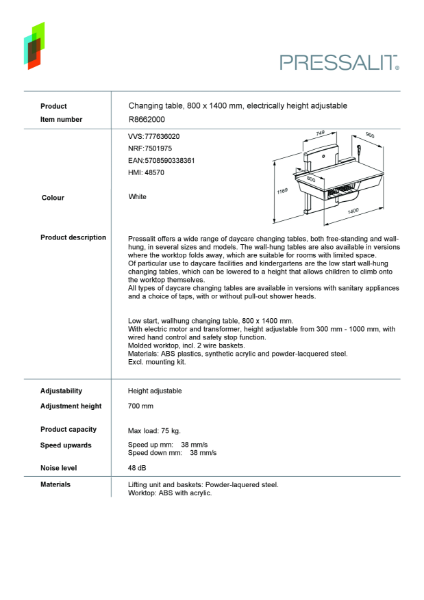

Baby and small child changing table, low start 800 x 1400 mm, electrically height adjustable - R8662000
