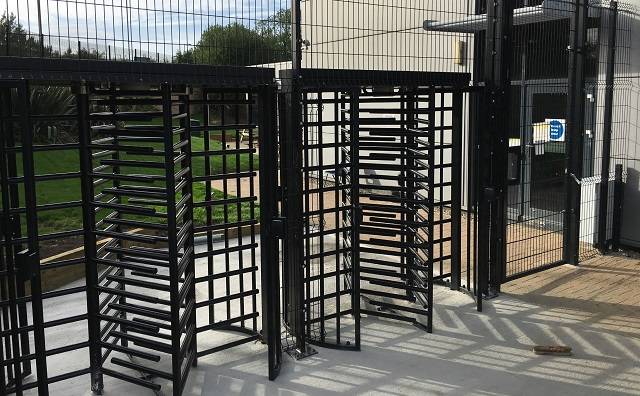

Entrance control/ full height turnstile.
Suitable for commercial and industrial locations (specifically unmanned perimeter security and employee controlled entrances). The heavy duty mechanism with continuously rated solenoids is designed for intensive use.
Full-height turnstile which is easy-to-use, rugged and reliable, and provides high-security pedestrian control. Available in a range of configurations, materials and finishes to match a wide variety of security levels, operational and aesthetic requirements.
Finishes include high quality polyester powder coatings in a wide range of colours and optional stainless steel rotors to withstand harsh external environments.
The rubber coupling between rotor and mechanism minimizes vibration, noise, bounce-back, and wear on the mechanism.
A solid state control unit interfaces to most available access control and membership systems. Key operated overrides allow passage during power failure and aid installation and diagnostics.
A special non-return sprocket assembly prevents unauthorised entry when the rotor is moving or locked.
Features and benefits:
Applications:
Suitable for commercial and industrial locations (specifically unmanned perimeter security and employee controlled entrances). The heavy duty mechanism with continuously rated solenoids is designed for intensive use.
Material | Frame: Flat and rolled hollow section rectangular hollow section (RHS) low carbon steel Straight arms: 38 mm diameter steel tube with polypropylene black end caps Trombone arms: 32 mm diameter steel tube Bearings: Triple sealed, heavy duty (marine grade lubricant) |
Uniclass 2015 | |
CAWS | Q50/160 Turnstile |
Product Reference | B700 |
Configuration | Double unitSingle unit |
Arms | 90 degree (four-arm)120 degree (three-arm)StraightTrombone |
Finish | - |
Pre-treatment | GalvanizedGalvanized and polyester powder-coated (PPC)Grit blast SA2.5 |
Primer | Interpon PZ790 |
Powder coating | Interpon D1036 |
Colour | The RAL range of colours available, insert requirements. |
Accessories | None‘Way mode’ indicators (red/ green lights)Battery back-upFree entry/ exit push buttonsStainless steel rotorsWalkway canopy with dust-till-dawn lighting |
Standard product features | Technical characteristics:
Material:
Certification:
|
