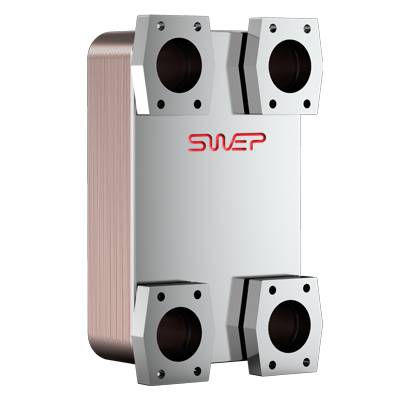

B35T - Plate heat exchanger

Application

Suitable for a large number of applications within district heating, heat recovery for industry and HVAC, combined heat and power, as well as engine oil cooling.

Description

Suitable for a large number of applications within district heating, heat recovery for industry and HVAC, combined heat and power as well as engine oil cooling. Heat transfer at low pressure drop in systems with up to 2½” piping and 50 m³/h water flow. Available with smaller ports for lower capacities, matching 2” connections on primary side only or on both sides. The B35T is capable of handling a water flow rate up to 50 m³/h.


Features and benefits:


  • Used for heat transfer at a low pressure drop.
  • Available with smaller ports.
  • Capable of handling a water flow rate up to 50 m³/h.



Links for calculations:

  • SSP Calculation Software: https://www.swep.net/support/ssp-calculation-software/.
  • International contact information: https://www.swep.net/company/contacts/.


General information

Shape

Rectangle

Color

Silver

Material

Stainless steel

Size

W x H.

243 x 393 mm

Uniclass

Pr_60_60_38_62 Plate heat exchangersPrimary

CAWS

T90/110 Heating system

T90/110 Heating system

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

3

2.0
Download now from NBS National BIM Library
