NBS Source
>B< Press XL

Application

Suitable for potable water; hydronic heating; chilled water; compressed air; non-medical gases; low pressure steam; vacuum.

Suitable for in wall installations.

Description

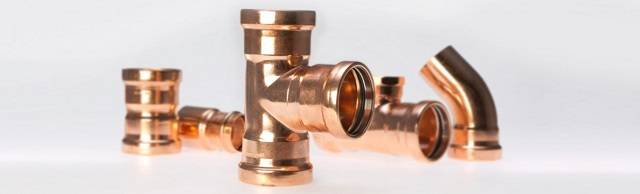

>B< Press XL fittings are quick and easy to install and are available in lead free copper and red brass.


Features and benefits:

  • Quick and easy to install, saving on labour costs.
  • Flame-free range, designed with an innovative three-point press system.
  • No hot works permit required.
  • Features a stainless steel grip ring for additional strength.
  • Leak before press indicator to ensure a secure, permanent leak-free joint that is suitable for multiple applications.
  • Suitable for use with hard, half-hard and soft copper tubes to ASTM B88.
  • Manufactured using high quality materials to applicable standards.
  • No soldering or brazing consumables required.
  • Comprehensive range of fittings - sizes from 1/2" to 2".
  • Compatible with commonly available press tools.
  • Tested and approved by national and international standard authorities.
  • Fifty-year limited warranty.

General information

Color

Copper

Material

Copper

Copper (EN 12165 CW024A) body.

Rubber

EPDM seal.

Stainless steel

Grip ring.

Shape

Dependent on type.

-

WarrantyDescription

25 year

 From the date of first purchase.

Uniclass 2015

Pr_65_52_63_18 Copper pipeline fittingsPrimary

CAWS

S90/110 Mains cold water supply

S90/120 Storage cold water supply

S90/110 Mains cold water supply

S90/130 Instantaneous hot water supply

S90/120 Storage cold water supply

S90/140 Direct hot water storage supply

S90/130 Instantaneous hot water supply

S90/150 Indirect hot water storage supply

S90/140 Direct hot water storage supply

S90/150 Indirect hot water storage supply

S90/160 Rainwater/ greywater recycling system

Specification data - Copper pipeline fittings Enhanced data

Standards

-

Press fittings

To BS 8537, EN 1254-7.

Operating parameters

16 bar at temperatures of up to 110°C.

Fittings

>B< Press XL - 90° Bend.

>B< Press XL - 90° Street Bend.

>B< Press XL - Female Straight Connector.

>B< Press XL - Male Straight Connector.

>B< Press XL - Straight Connector.

Show more

Diameter

Consult manufacturer's literature for options and insert requirements.

-

Third party certifications

  • WRAS
  • DVGW
  • KIWA
