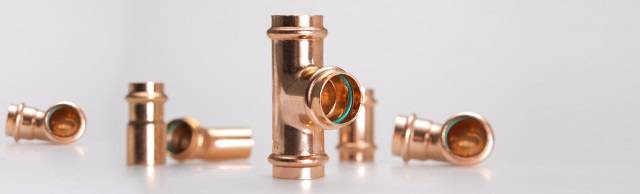

>B< Press Solar

Application

Thermal solar systems, high temperature heating systems.

Description

>B< Press Solar fittings are ideal for solar systems with vacuum and high vacuum tube panels as well as district heating systems and continuous temperatures above 100°C. Available in copper and red brass fittings, this flame-free range is designed with an innovative three-point press system which ensures a secure, permanent leak-free joint.


Features and benefits:

  • Reduced installation time and cost.
  • Flame-free connection - no hot works permit required.
  • Leak before press indicator assists identification of unpressed joints.
  • Corrosion resistant.
  • Three point press system up to 54 mm.
  • Suitable for use with hard, half hard and soft copper tubes to EN 1057.

General information

Color

Bronze

Material

Brass

Shape

Dependent on type.

-

Size

15–28 mm

WarrantyDescription

25 years

From the date of first purchase.

Uniclass 2015

Pr_65_52_63_18 Copper pipeline fittingsPrimary

CAWS

S90/110 Mains cold water supply

S90/120 Storage cold water supply

S90/110 Mains cold water supply

S90/130 Instantaneous hot water supply

S90/120 Storage cold water supply

S90/140 Direct hot water storage supply

S90/130 Instantaneous hot water supply

S90/150 Indirect hot water storage supply

S90/140 Direct hot water storage supply

S90/150 Indirect hot water storage supply

S90/160 Rainwater/ greywater recycling system

Specification data - Copper pipeline fittings Enhanced data

Standards

-

Press fittings

To BS EN 8537, EN 1254 -7; EN 1057.

Product Reference

>B< Press Solar - 45° Elbow

Available 15–28 mm.

>B< Press Solar - 45° Street Elbow

Available 15–28 mm.

>B< Press Solar - Connector with Flat Face

Available 15 x 3/4” to 22 x 1”.

>B< Press Solar - Elbow

Available 15–28 mm.

>B< Press Solar - Equal Tee

Available 15–28 mm.

Show more

Operating parameters

10 bar at operating temperatures of up to 140°C.

TemperatureRange

-15 to +140°C.

Third party certifications

  • SPF
