>B< Oyster

Application

Drinking water, hot and cold water systems, heating systems, oil-free compressed air.

Description

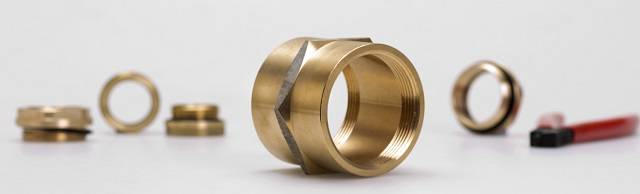

>B< Oyster is a transitional adaptor for threaded fittings and valves. A range that is simple in concept, but versatile and efficient in practice, it can be used in a wide range of applications. These flame-free fittings have two EPDM O-rings that seal against the tube and the fitting, which means a reliable joint is achieved - a fast, clean, economical installation without additional sealing material.


Features and benefits:

  • Flame-free connection - no hot works permit required.
  • No mess installation.
  • Multiple use adaptor.
  • Rotatable, demountable, reusable small fitting that can be installed in tight spaces.
  • Suitable for connecting to ISO 228, ISO 7-1 and EN 10226-1 parallel female threads.

General information

Material

Brass

Brass/ Red Brass, Nickel Plated Brass.


Copper

EPDM

black EPDM O-ring.

Size

10–54 mm

WarrantyDescription

25 years

 From the date of first purchase.

Uniclass 2015

Pr_65_52_63_18 Copper pipeline fittingsPrimary

CAWS

S90/110 Mains cold water supply

S90/120 Storage cold water supply

S90/110 Mains cold water supply

S90/130 Instantaneous hot water supply

S90/120 Storage cold water supply

S90/140 Direct hot water storage supply

S90/130 Instantaneous hot water supply

S90/150 Indirect hot water storage supply

S90/140 Direct hot water storage supply

S90/150 Indirect hot water storage supply

S90/160 Rainwater/ greywater recycling system

Specification data - Copper pipeline fittings Enhanced data

Product Reference

>B< Oyster

Avaliable 15mm - 54mm

>B< Oyster Expansion Coupler

Available 15–28 mm.

Special

ISO 228, ISO 7-1 and EN 10226-1, EN 1057, EN ISO 9001.

Operating parameters

16 bar at operating temperatures of up to 30°C, 12 bar at operating temperatures of up to 65°C, 10 bar at operating temperatures of up to 95°C.

Third party certifications

  • WRAS
