>B< ACR Series 9000
Compare variants

>B< ACR Series 9000

Conex Bänninger Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Copper and copper alloy end feed capillary brazing fittings.

Jump to:
+44 (0)121 557 2831 https://conexbanninger.com/en-gb/

Application

Air-conditioning, refrigeration.

Description

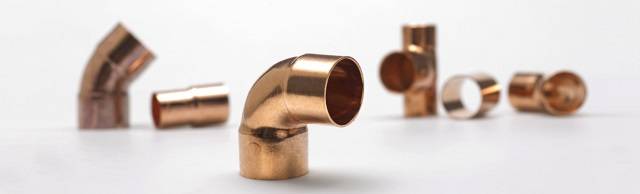

>B< ACR is a full range of copper and copper alloy end feed capillary fittings, specifically designed for the ACR market.

This range is manufactured from thick wall copper tubes to ensure minimum thickness and guarantee pressure resistance and durability. All >B< ACR fittings conform to Pressure Equipment Directives 2014/68/EU for use with high and low pressure.


Features and benefits:

  • High-pressure resistance.
  • Corrosion resistant.
  • Anti-microbial material.
  • Standards ANSI B16.22.
  • Sizes: From 1/4" to 4 1/8".

General information

Color

Copper

Material

Copper

Shape

Dependent on type specified.

-

Size

Dependent on type specified. From 1/4" to 4 1/8"

-

WarrantyDescription

25 year

When professionally installed, used and maintained in accordance with >B< ACR installation instructions, Conex Universal Ltd. guarantees that >B< ACR fittings supplied by Conex Universal Ltd. will be free of material defects resulting from errors in manufacture, for 25 years from the date of first purchase by an end user. For full terms and conditions please refer to the Product Guarantee Statement.

Uniclass 2015

Pr_65_52_63_18 Copper pipeline fittingsPrimary

CAWS

S90/110 Mains cold water supply

S90/120 Storage cold water supply

S90/110 Mains cold water supply

S90/130 Instantaneous hot water supply

S90/120 Storage cold water supply

S90/140 Direct hot water storage supply

S90/130 Instantaneous hot water supply

S90/150 Indirect hot water storage supply

S90/140 Direct hot water storage supply

S90/150 Indirect hot water storage supply

S90/160 Rainwater/ greywater recycling system

Specification data - Copper pipeline fittings Enhanced data

Standards

-

Capillary

ANSI B16.22.

Fittings

Insert requirements or drawing/ schedule reference number.

-

Diameter

Insert requirements or drawing/ schedule reference number.

-

Digital objects

Platform Compatible Version Certified to
Revit
-

1

1

Download now from NBS National BIM Library

Literature

K65 Technical Brochure

K65 Technical Brochure

Third party certifications

  • Quality Assurance - certficate : made to ASME B16.22
