Axim TC-9900 Series Concealed Overhead Transom Closer
Verified by manufacturer 6 months ago

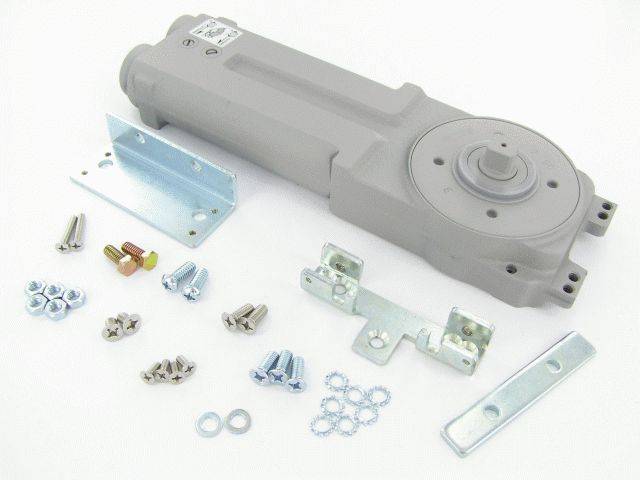

Axim TC-9901-00 Concealed Overhead Transom Closer
Axim TC-9901-00 Concealed Overhead Transom Closer
A range of universal concealed transom closers.
Application
Designed for use with commercial aluminum doors.
- Single or double action doors.
- Centre hung or offset pivot with special arm.
- Side load or end load fittings.
Description
A range of universal concealed transom closers, available in three strengths.
Features and benefits:
- Independent, fully adjustable closing and latching speed controls from fully open to 15° and 15° to closed, with captivated screws preventing accidental removal.
- Mechanical backcheck protects doors and closer when opening passed 105°.
- Designed to replace a range of closers fitted to existing doors without costly modifications to door or frame.
- 70 mm standard pivot point.
General information
Material | Cast iron |
Warranty description | Two year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
SKU Code | TC-9901-00, TC-9901-90, TC-9902-00, TC-9902-90, TC-9903-00, TC-9903-90, TC-9900-ADJ-00, TC-9900-ADJ-90, TC-9900 (Dummy), TC-9900 - 03 (Spacer bar), TC-9900 -23 (Closer bracket set) |
Specification data - Controlled door closers
Classification grades (minimum) | |
Door closer power size | 1. Guidance for specification option: Size 1, no hold open. |
Form | Overhead, concealed. |
Materials and finishes | |
Bodies | Cast iron. |
Arms | Cast iron. |
Colour | Grey. Guidance for specification option: Unseen. |
Weight | 100 kg. Manufacturer guidanceDoor weight maximum. |
Door width | Guidance for specification option: Insert requirements.
|
Unit | Required. Not required. Manufacturer guidanceTC-9900 Dummy body unit |
Sustainability data
Contains Red List materials | No |
Country of material origin | Taiwan |
Country of product manufacture | Taiwan |
Literature
Axim TC-9900 Series Concealed Overhead Transom Closer Brochure
