Axim LP-500 Series Letter Plate
Description

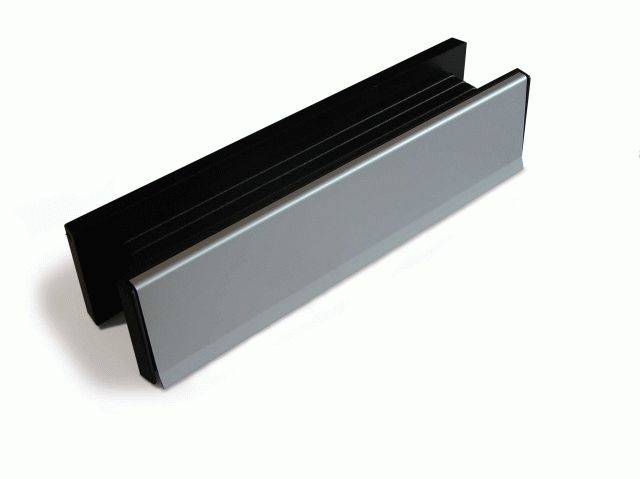

A range of fully weatherproofed aluminium letter plates, available in six finishes.

Features:

  • Full 180° opening to outside flap for easy operation when fitted to the bottom rail of a door or low stallriser.
  • Fully weatherproofed outside flap incorporating a drainage channel for optimum protection of mail.
  • Adjustable spring tension.
  • Blind fixings concealed behind outer flap for security.
  • Inner flap with rubber seal for quiet closing action.
  • Integral sleeve for 45 mm door rails with 10 mm cutting grooves enabling easy adjustment down to a 10 mm thick armour plate door or panel.
  • Complete with fixing screws.

General information

Features

Full 180° opening to outside flap for easy operation when fitted to the bottom rail of a door or low stallriser

Fully weatherproofed outside flap incorporating a drainage channel for optimum protection of mail

Adjustable spring tension

Blind fixings concealed behind outer flap for security

Inner flap with rubber seal for quiet closing action

Show more

Uniclass 2015

Pr_40_30_50_49 Letter platesPrimary

CAWS

P21/52 Letter plates

P21/730 Letter plates

Specification data - Letter plates

Product Reference

LP-500–AL Letter Plate

Silver anodized.

LP-500–BK Letter Plate

Black anodized.

LP-500–DU Letter Plate

Bronze anodized.

LP-500–ML Letter Plate

Mill finish.

LP-500–SS Letter Plate

Polished silver.

LP-500–WT Letter Plate

White powder coated.

LP-570-BK Extension sleeve

Required

Not required

Standard product features

Built-in sleeve:

Suitable for 10–46 mm thick doors.

Cut out:

285 x 50 mm.

Product Options

Product reference:

- Finish:

  • Anodized: Available in three colours.
  • Mill finish: For powder coating by others after purchase.
  • Polished: Available in silver anodized.
  • Powder coated paint: Available in white.

Extension sleeve:

Allows letter plate to be fitted in panels or stallrisers of up to 120 mm thick.
