Axim HD Series Tube Handle Set
Verified by manufacturer 4 months ago
Full height tubular handles.
Application
Designed for use with aluminium, steel and solid timber doors.
Description
Full height tubular handles, available in five finishes.
Features and benefits:
- 2500 x 40 mm tubular aluminium handles include extruded brackets.
- Minimum wall thickness of 5 mm deflection for rigidity.
- Capped tube ends for pleasing aesthetics.
- Quality products at an affordable price.
General information
Finish | Anodized Mill Powder-coated |
Material | Stainless steel |
Shape | Other |
Length | 2500 mm Bespoke Guidance for specification option: Tubes can be cut to suit requirements after door height has been determined. |
Width | 40 mm |
Warranty description | One year |
Uniclass | |
CAWS | P21/42 Pull handles P21/641 Pull handles |
Specification data - Pull handles
Form | Tubular handle. |
Diameter | 40 mm.Guidance for specification option: Tube wall thickness: 5 mm. |
Material and finish | Anodized aluminium.Mill finish aluminium.Polyester powder-coated, aluminium. |
Colour | Guidance for specification option: Consult manufacturer and insert requirements. |
Handles | HD080AMIL Tube Handle Set. Guidance for specification option: Mill finish. HD080BSVR Tube Handle Set. Guidance for specification option: Aluminium. HD080CBRZ Tube Handle Set. Guidance for specification option: Bronze. HD080DBLK Tube Handle Set. Guidance for specification option: Black. HD080EWHT Tube Handle Set. Guidance for specification option: White. |
Length | 2500 mm. Guidance for specification option: As standard. Bespoke. Guidance for specification option: Tubes can be cut to suit requirements after door height has been determined. |
Brackets | Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | Taiwan |
Country of product manufacture | Taiwan |
Literature

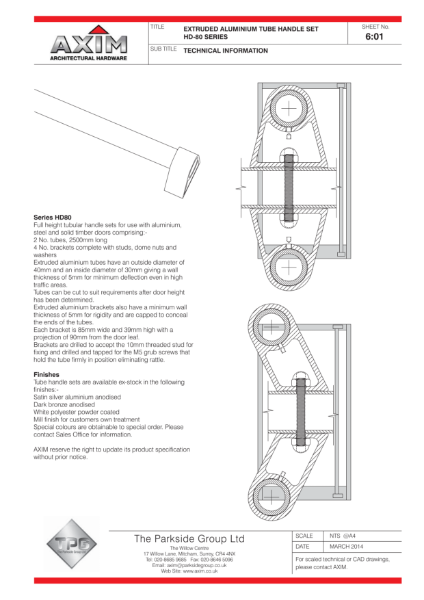

Axim HD Series Tube Handle Set
