Axim FS-4000 Series Floor Spring
Description

A range of universal floor springs designed for light weight doors, available in two strengths.

Features:

  • Suitable for left hand, right hand, single and double action doors.
  • Two separate valve screws control the closing and latching speeds independently.
  • 130° backcheck prevents damage to doors in windy conditions or where the door swing is limited to 90°.
  • The floor spring is fully adjustable for height, width, length and diagonally within the zinc plated cement box.

General information

Features

Suitable for left hand, right hand, single and double action doors

Two separate valve screws control the closing and latching speeds independently

130° backcheck prevents damage to doors in windy conditions or where the door swing is limited to 90°

The floor spring is fully adjustable for height, width, length and diagonally within the zinc plated cement box

Uniclass 2015

Pr_30_36_36_29 Floor springsPrimary

CAWS

P21/14 Floor springs

P21/450 Floor springs

Specification data - Floor springs

Product Reference

FS-4001-00-F Floor Spring

Size 1, no hold open, with spindle.

FS-4001-90-F Floor Spring

Size 1, hold open, with spindle.

FS-4002-00-F Floor Spring

Size 2, no hold open, with spindle.

FS-4002-90-F Floor Spring

Size 2, hold open, with spindle.

FS-4001-00-NS Floor Spring

Size 1, no hold open, without spindle.

FS-4001-90-NS Floor Spring

Size 1, hold open, without spindle.

FS-4002-00-NS Floor Spring

Size 2, no hold open, without spindle.

FS-4002-90-NS Floor Spring

Size 2, hold open, without spindle.

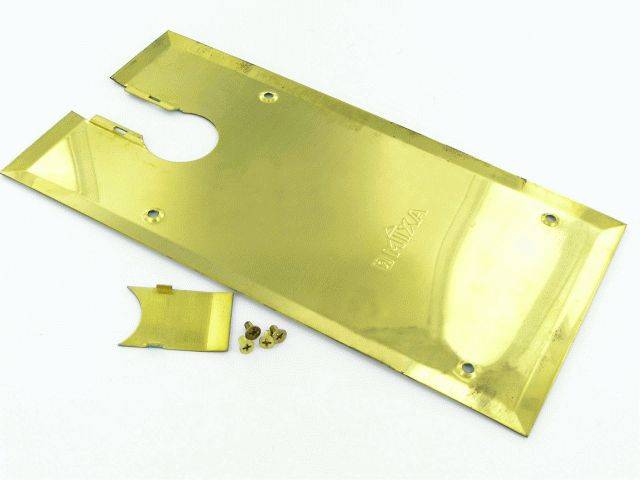

Coverplate

FS-4000-01

Stainless steel.

FS-4000-02

Bronze.

FS-4000-03

Satin brass.

Spindle insert

FS-6000-STD

Standard spindle.

FS-6000-125

12.5 mm spindle.

FS-6000-200

20 mm spindle.

FS-6000-250

25 mm spindle.

FS-6000-NT-DA

N.T. double action, standard.

FS-6000-NT-L

N.T. left hand.

FS-6000-NT-R

N.T. right hand.

FS-6000-NT-DA-13

N.T. 13 mm extended.

FS-6000-GDA

Gibbons.

FS-6000-SP

Speedy.

Top centre

FS-4000-0114

Standard duty.

FS-6000-0114

Heavy duty, frame part.

FS-6000-0104

Heavy duty, face part.

FS-6000-0115

Heavy duty, door part.

FS-7525-12

Heavy duty, door part (A.G. Rail).

Accessories

None

FS-4000-15 Additional cement box

Spindle insert extension, size ___

Standard product features

Size (l x w x d):

283 x 131 x 65 mm.

Door weight (maximum):

100 kg.

Door width:

  • Size 1 (light spring strength): Up to 914 mm (18 Nm closing force).
  • Size 2 (medium spring strength): 915–1200 mm (28 Nm closing force).

Product Options

Product reference:

- With spindle:

  • Floor spring with fixed flat spindle.
  • Complete with door strap and retractable top centre.
  • Cover plate not included.
  • Not always held in stock and are subject to special order and delivery.

- Without spindle:

  • Floor spring and cement box only.
  • Without spindle insert.
  • Will accept the Axim range of spindle inserts.
  • Stock item.

Spindle insert:

Available for Axim, N.T., Gibbons and Speedy fittings.

Top centre:

  • Standard duty: Retractable, single or double action.
  • Heavy duty: Retractable, centre hung.

Accessories:

Spindle insert extensions: Available up to 50 mm, suitable for all types of doors.
