Axim FC-1000 Series Surface Closer
Description

A range of universal, hydraulic surface mounted closers, available in two sizes.

Features:

  • Modern slimline design, with die-cast aluminium body.
  • Non-handed for standard, top jamb and parallel arm applications.
  • Parallel bracket supplied.
  • Suitable for doors opening onto adjacent walls.
  • Fixings for timber and metal doors concealed behind a slide-on anodized dress plate.

General information

Features

Modern slimline design, with die-cast aluminium body

Non-handed for standard, top jamb and parallel arm applications

Parallel bracket supplied

Suitable for doors opening onto adjacent walls

Fixings for timber and metal doors concealed behind a slide-on anodized dress plate

Uniclass 2015

Pr_30_36_59_15 Controlled door closersPrimary
Specification data - Controlled door closers

Product Reference

Axim FC-1020-P-AL Surface Closer

Size 2, silver.

Axim FC-1020-P-DU Surface Closer

Size 2, bronze.

Axim FC-1030-P-AL Surface Closer

Size 3, silver.

Axim FC-1030-P-DU Surface Closer

Size 3, bronze.

Axim FC-1030-P-BZ Surface Closer

Size 3, gold.

Flat top bracket

Axim FC-1000-12-AL

Silver.

Axim FC-1000-12-DU

Bronze.

Hold open arm

Axim FC-1000-121-AL

Silver.

Axim FC-1000-121-DU

Bronze.

Accessories

Axim FC-1000-102-AL

Slide arm with adjustable hold-open feature, silver.

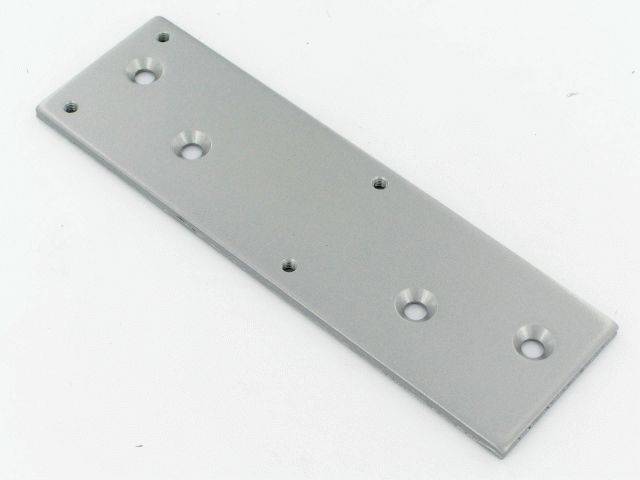

Axim FC-1000-14-AL

Top jamb bracket, silver.

Axim FC-1000-16-AL

Packing block, silver.

Axim FC-1000-SP-AL

Replacement slip plate, silver.

Axim FC-815-AL

Extra parallel bracket, silver.

Axim FC-815-DU

Extra parallel bracket, bronze.

Standard product features

Adjustment:

Full hydraulic control from 180–15° of closing and 15-0° of latching.

Closing force:

- Regular arm:

  • Size 2: 19 Nm.
  • Size 3: 14 Nm.

- Parallel arm:

  • Size 2: 23 Nm.
  • Size 3: 19 Nm.

Size (l x w x d):

  • 204.5 x 41 x 62 mm.

Door weight:

  • Size 2: 25–45 kg.
  • Size 3: 40-60 kg.

Door width (maximum):

- Regular arm (Size 2):

  • Interior: 900 mm.
  • Exterior (swing in/ out): 700/ 800 mm.

- Regular arm (Size 3):

  • Interior: 1050 mm.
  • Exterior (swing in/ out): 800/ 900 mm.

- Parallel arm (Size 2):

  • Interior: 800 mm.
  • Exterior (swing in/ out): 600/ 700 mm.

- Parallel arm (Size 3):

  • Interior: 900 mm.
  • Exterior (swing in/ out): 700/ 800 mm.

Fire performance:

Axim FC-1000 door closers have been included in successful fire tests to BS 476–22.

Product Options

Delete items that are not applicable.

Product reference:

  • Size 2 types are available in silver or bronze.
  • Size 3 types are available in silver, bronze and gold.

- Finishes:

Silver types are stock items - other finishes are not always held in stock and are subject to special order and delivery.
