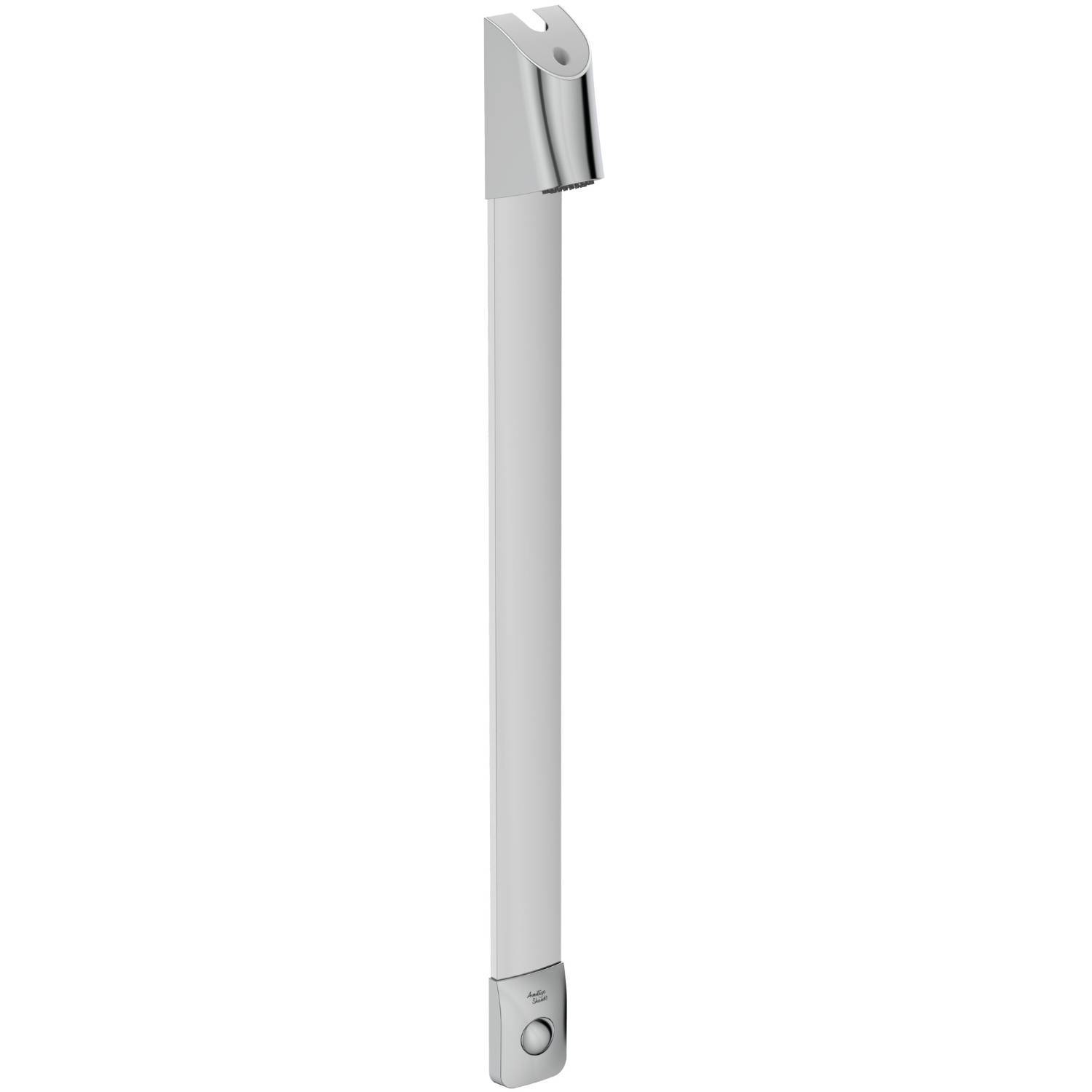

Avon 21 Self-Closing Shower Panel
Verified by manufacturer 4 days ago
UK Water Regulation 4
Certificate type
The pre-plumbed push button Avon 21 self-closing shower panel is user and installer friendly, its lightweight, modern design and no fuss functionality gives a timed flow of circa 30 seconds.
Application
Particularly suitable for commercial, retrofit, new build, communal or individual cubicle showing installations in a range of sectors including:
- Education.
- Sports and leisure.
- Anti-vandal.
- Water saving.
Description
The pre-plumbed push button Avon 21 self-closing shower panel is user and installer friendly, its lightweight, modern design and no fuss functionality gives a timed flow of circa 30 seconds. Giving anti-vandal and water efficient benefits.
Features and benefits:
- Push button design.
- Self-closing cartridge with 500 k cycle durability.
- Water-saving operation with timed flow of circa 30 seconds.
- Supplied pre-plumbed for connection to a single pre-mixed supply pipe.
- Fixed shower head with orientable jet with anti-limescale silicone nozzles.
- Supplied for top inlet installation, concealed installation feasible.
- 6 L per minute and 8 L per minute flow regulators supplied.
General information
Color | Silver |
Finish | Chrome |
Material | Metal |
Shape | Other |
Length | 107 mm |
Width | 80 mm |
Height | 1090 mm |
Uniclass | |
CAWS | N13/42 Shower mixer valves N13/40 Shower units N13/375 Shower units |
SKU Code | A7955AA |
GTIN/EAN | 4015413357180 |
Specification data - Shower fittings package
Classification data | |
Standards | |
Shower mixers | To EN 817 and EN 200. |
Showerheads | To EN 200. |
Approvals | NSF Reg4 certified. |
Form | Wall-mounted shower mixer valve, fixed shower head with orientable jet. |
Materials | |
Body | Metal. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 6 L/min at 3 bar. Guidance for specification option: Standard. 8 L/min at 3 bar. |
WorkingPressureRange | 1–5 bar. |
Sustainability data
Material | Metal |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
UK Water Regulation 4
Kiwa Regulation 4 Certificate
Literature
Avon 21 Press Shower Panel
