Description

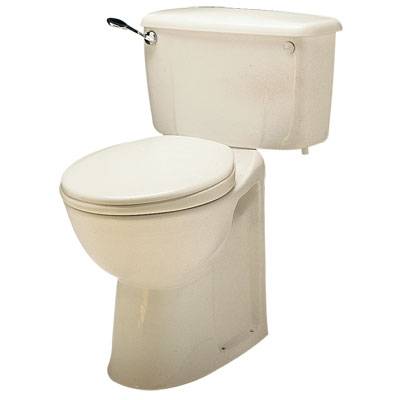

A close coupled horizontal outlet washdown WC suite with seat available with replacement rings to give four height possibilities and ergonomically designed cistern lever and for use in special needs, hospitals, care and retirement homes applications.

General information
Specification data
Product Reference

Avalon HO close coupled WC suite

Pan

AV1168WH

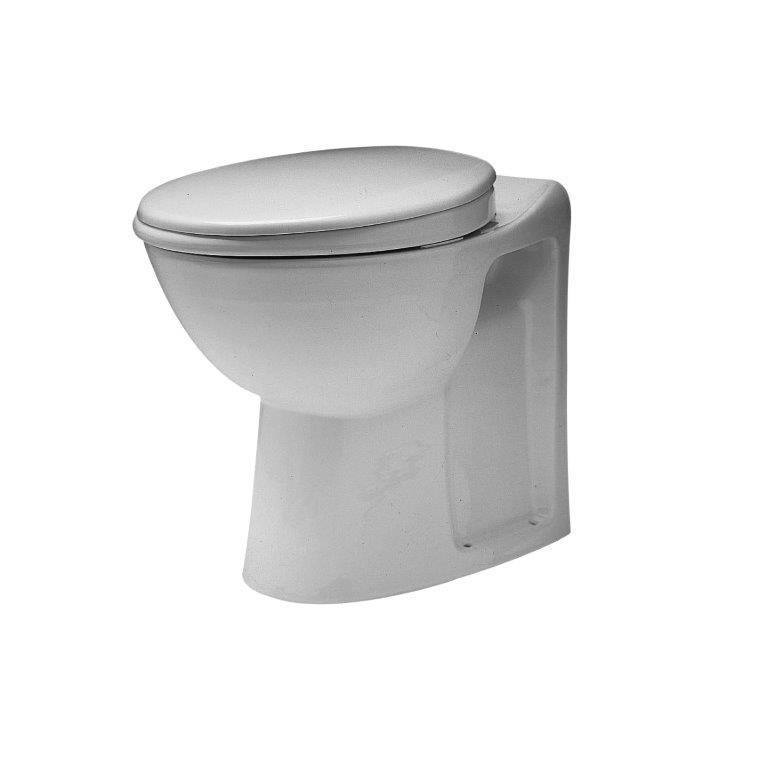

Avalon, horizontal outlet.

Seat and cover

AV7840WH

Avalon 25 mm seat and cover. Plastics seat and cover with chrome plated hinges.

Pan connector

WF1240WH

P trap outlet.

WF1241WH

S or P trap.

Cistern -
Type

AV2611WH

Avalon cistern BSIO.

AV2711WH

Avalon cistern white only BSIO, with cover clip.

Colour/ Finish

White WH

Lever handle

Chrome plated

Standard.

Accessories

AV7842WH

Cover only.

AV7881BE

25 mm high seat ring with chrome plated hinges.

AV7881WH

25 mm high seat ring with chrome plated hinges.

Standard product features

Pan material:

  • Vitreous china.
  • Colour: White.

Pan connector:

  • Standard: To BS 5627.
  • Colour: White.

Cistern material:

Vitreous china.

Flushing arrangement:

Valveless cistern siphon.

Lever handle:

Chrome plated - Standard for AV2611 cistern.

Water supply connection:

Bottom.

Flush volume:

6 L.
