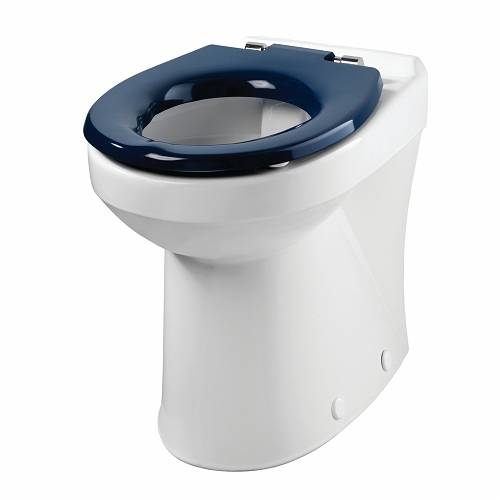

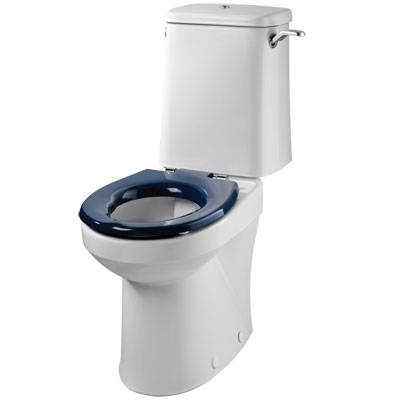

Avalon Rimfree WC Suite

Twyford Bathrooms

A back to wall or close coupled horizontal outlet washdown WC suite, rimless with seat.

Jump to:
+44 (0) 1926 516 800 Website

Application

Suitable for use in special needs, hospitals, care and retirement homes applications.

Description

Horizontal outlet washdown WC suite, rimless with seat.


Features and benefits:

  • Dual flush.
  • Close coupled or BTW

General information

Color

White

RAL 9003.

Material

Vitreous china

Shape

Other

Length

535 mm

Width

355 mm

Height

450 mm

WarrantyDescription

Accessories and fittings.

Uniclass

Pr_40_20_93_97 WC suitesPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Product range

WC suites

Specification data - WC suites

Approval

EN 997 WC pans and WC suites.

Standards

-

Pans

To BS 5627.

Form

Back to wall or close coupled WC pan and cistern.

Materials

-

Body

Vitreous china.

Finish and colour

White.

RAL 9003. WH.

Pan and Pan connector.

Sizes

-

Cistern capacity

6/4 L dual flush.

Pan

AV1968WH, Avalon rimless back-to-wall toilet pan.

Horizontal outlet.

Seat and cover

With stainless steel top fix hinges.

AV7886GY, Avalon toilet seat ring bar hinge top fix, grey.

AV7886WH, Avalon/ Sola toilet seat ring bar hinge top fix, white.

AV7886BE, Avalon/ Sola toilet seat ring bar hinge top fix, blue.

AV7886RD, Avalon/ Sola toilet seat ring bar hinge top fix, red.

Cistern

Material - Plastics.

CX9564XX, Concealed Cistern, Dual Flush, incl lever, SSIO, with DAIV, 6/4L (chrome plated lever up to 114mm duct).

  • SSIO.
  • Dual flush.
  • With DAIV.
  • Including lever.
  • 6/ 4 L (chrome plated lever up to 114 mm duct, with delayed action inlet valve).


CX9560XX, Concealed Cistern, Single Flush, incl lever, SSIO, 6L.

  • Single Flush, including lever.
  • SSIO.
  • 6 L .

CX9540XX, Concealed Cistern, Single Flush, incl lever, SSIO, with DAIV, 4L.

  • Single Flush, including lever.
  • SSIO.
  • With DAIV.
  • 4 L.

CX9561XX, Concealed Cistern, Single Flush, incl lever, BSIO, 6L.

  • Single Flush, including lever.
  • BSIO.
  • 6 L.

AV2661WH, Avalon/Sola Close Coupled Cistern, 6/4L, Complete with Lever.

Show more

Water supply

Side for SSIO cistern.

Bottom for BSIO cistern.

Flush pipe

Material - plastics.

Concealed.

Flushing arrangement

Valveless cistern siphon.

Operation

CF3018CP, Lever handle, chrome plated.

For wall thicknesses up to 225 mm.

CF3109CP, Spatula lever for 114 mm wall depth.

CF3017CP, Chrome plated extended duct lever handle.

For wall thicknesses up to 340 mm.

CF9002CP, Air button, dual flush, small button, chrome plated.

For 3–40 mm panel depth.

CF9032CP, Air button, dual flush, mini plate 80 x 124 mm chrome plated.

Minimum 65 mm panel depth.

Show more

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

1

1.3
Download now from NBS National BIM Library
