Automatic Swing Door - ASSA ABLOY SW200 B Balance Door

Verified by manufacturer 3 months ago

SW200 B-L (Left-hand opening) and SW200 B-R (Right-hand opening)

FAAC Entrance Solutions UK Variant:

A fully suspended automated balance swinging door system, for narrow entrances and/or exposed locations.

Jump to:
BOS
+44 (0)333 006 3443 Website

Application

Available for entrances to a range of building types.

Description

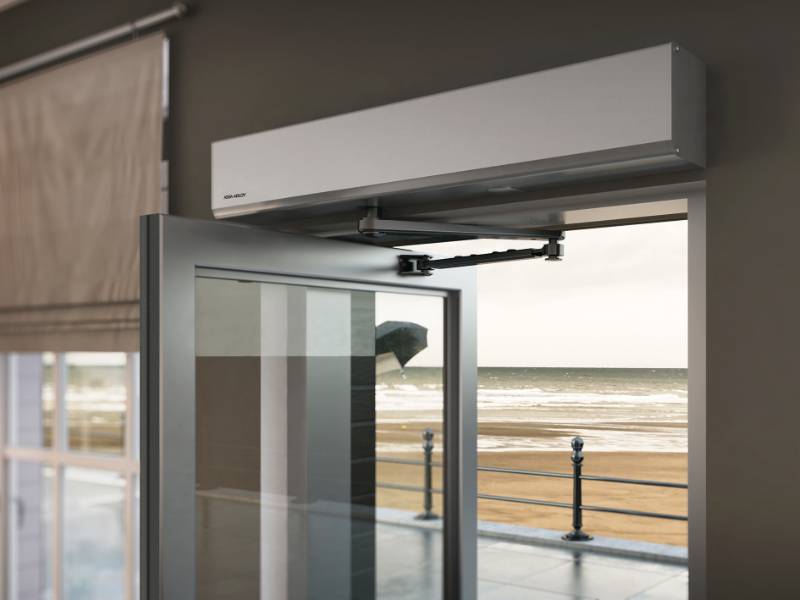

A fully suspended automated balance swinging door system, for narrow entrances and/or exposed locations. It is completely suspended and pivoted within the frame, does not require guide grooves in the floor; the system is equipped with finger guards fitted between the door leaf and jamb to reduce the risk of accidents. Tailor made to suit differing requirements and is delivered with door frame and glazed doors leaves.


Features and benefits:

  • Completely suspended and pivoted within the frame.
  • Multiple accessories available.
  • Various sizes.

General information

Color

Silver

Finish

Anodized

Material

Aluminium

Length

714 mm

Width

130 mm

Height

110 mm

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/490 Automatic doors

Specification data - Aluminium doorsets

Configuration

Right hand single.

Left hand single.

Doorset size

Guidance for specification option:

Consult manufacturer and insert requirements.

Frame

-

Material

Aluminium.

Perimeter seals or inserts

Finger guards to the pivot stiles.

Finish

-

Coating

Anodized.

Colour

Silver.

Door leaf

-

Thickness

48 mm.

Panel details

8 mm laminated glass, 22 mm glass double glazed unit.

Material

Anodized aluminium.

Glazing

-

Type

8 mm laminated glass, 22 mm glass double glazed unit.

Finish

-

Coating

Anodized.

External colour

Silver.

Internal colour

As External.

Accessories

None.

Activation unit.

Door opener and arm system.

Door position indicator.

Electro-magnetic lock.

Espagnolette lock.

Mechanical hook bolt lock on the door leaf.

Midrail.

Programme selectors.

Safety barriers.

Perimeter seals or inserts

Finger guards to the pivot stiles.

Outer dimensions

45 x 114 mm.

Frame width

852—1190 mm.

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

Minimum-maximum.

Height

2090—2740 mm.

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

Minimum-maximum.

Controller

Surface mounted.

Guidance for specification option:

  • Cover - Silver anodized aluminium, other paint finishes optional.
  • Length 716 mm.
  • Height 110 mm.
  • Depth 130 mm.

Concealed.

Guidance for specification option:

  • Cover - Silver anodized aluminium, other paint finishes optional.
  • Length min.750 mm.
  • Height 152 mm.
  • Depth 152 mm.

Manufacturer guidance

Swing Door Operator ASSA ABLOY SW200.


Control unit CU-200 with EXU-SI and EXU-SA included - with possibility to connect manual and automatic activation units, position switches, el. locks, presence sensors, battery, kill, open/close etc.

Power supply

100—240 VAC +10/-15%, 50/60 Hz.

Guidance for specification option:

Mains fuse max 10A (building installation).

Manufacturer guidance

Swing Door Operator ASSA ABLOY SW200.

Power consumption

300 W.

Manufacturer guidance

Swing Door Operator ASSA ABLOY SW200.

Maximum.

Voltage

24 V DC, max. 700 mA.

Manufacturer guidance

Swing Door Operator ASSA ABLOY SW200.

Auxiliary voltage.

Ambient temperature

-20 °C to +45 °C.

Manufacturer guidance

Swing Door Operator ASSA ABLOY SW200.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1
