Automatic Sliding Door Operator

Automatic Sliding Door Operator

KONE plc

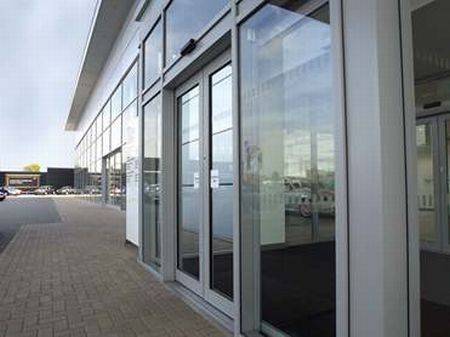

Powerful, fully automatic door operator, suitable for single, double, telescopic, curved and prismatic doors.

Jump to:
+44 (0)845 199 9999 www.kone.co.uk

Description

Automatic sliding door operator suitable for all commercial environments facilitating efficient and safe people flow. Manufactured from aluminium with 160 mm high rail, supplied with an integrated running rail, clamped in low noise rubber and a control unit, motor and carriers. Adjustable door speed, time and width via control unit.

Features

  • Electronic safety reverse, highly sensitive reverse settings in both open and close directions.
  • Finger trap safety.
  • Door speed safety, automatically adjusted based on door weight and resistance.
  • Fire alarm functions, door closes while the photocell is switched off and radar sensor remains active, manual operation and sequence doors setting can be cancelled.
  • Electronic lock activated by the program switch.
  • Battery backup an option in case of power failure.

TUV approved and meets all the international CE standards and safety regulations.

General information

Features

Electronic safety reverse, highly sensitive reverse settings in both open and close directions

Finger trap safety

Door speed safety, automatically adjusted based on door weight and resistance

Fire alarm functions, door closes while the photocell is switched off and radar sensor remains active, manual operation and sequence doors setting can be cancelled

Electronic lock activated by the program switch

Show more

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

L20/490 Automatic doors

Specification data - Door track and running gear

Product Reference

SD 20S

SD 35S

SD Full glass

Type

Double sliding door

Double sliding door with side or fixed panels

Single telescopic door

Curved sliding door

Prismatic sliding door

Cover

Aluminium, mill finish

Standard.

Anodized aluminium, RAL

Insert details.

Silver anodized aluminium

Operation

Electronic program switch

Electronic program switch with LED display

Entrance control system

Infrared motion detector

Photo cells

Push button

Radar detector 1 way

Radar detector 2 way

Safety sensors

Wireless program switch

Accessories

None

Battery back-up

Eco Drive

To reduce warm or cold air loss and reduce temperature oscillations in buildings.

External connectors with four inputs and four outputs

Fire alarm functions

Standard product features

Suspension

Two 3D adjustable carriers per door leaf.

Power

230 V, 50 Hz, 2 A, single phase, 80 W.

Control unit

Computerized self monitoring.

External connectors

Four programmable inputs and one programmable output.

Draught prevention

Totally sealed with brushes and rubber gaskets.

Product Options

Product reference

SD 20S

  • Tight, round and slim view design suitable for single, double and telescopic doors with toughened glass 10 or 12 mm thick.
  • Opening (w x h, maximum): 1400 single door, 2200 double door x 2300–2500 mm, depending on glass thickness.

SD 35S

  • Tight, round and slim view design suitable for single, double, telescopic and prismatic doors with laminated, isolated and toughened glass 8–20 mm thick.
  • Opening (w x h, maximum): Varies dependent on glass type, please refer to manufacturer's literature for exact details.

SD Full glass

  • Slim view design suitable for single and double doors with toughened glass 10 or 12 mm thick.
  • Opening (w x h, maximum): 1400 single door, 2200 double door x 2200–2400 mm, depending on glass thickness.
