Application

Suitable for usage in areas with high traffic and where shopping trolleys are passing in and out.

Description

A rugged framed sliding door solution. Most models can be supplied with or without side screens and over-lights, and are suitable for beam or wall mounting installations. Can be supplied as bi-parting and single sliding where required. All models can be tailored to suit contract specific requirements. Standard features include; integrated weather seals and flush glazing for maximum opening width. Options include the provision of thermally broken profiles and various glazing types on request.

Features and benefits:

  • Includes integrated weather seals and flush glazing.
  • Range of accessories available.
  • Wall or beam mounted.

Application:

Suitable for usage in areas with high traffic and where shopping trolleys are passing in and out.

General information

Finish

Anodized or RAL finish

Material

Aluminium with laminated glazing

Size

Size depends on arrangement

Uniclass 2015

Pr_30_59_24_80 Sliding door and partition setsPrimary
Specification data - Sliding door and partition sets

Product Reference

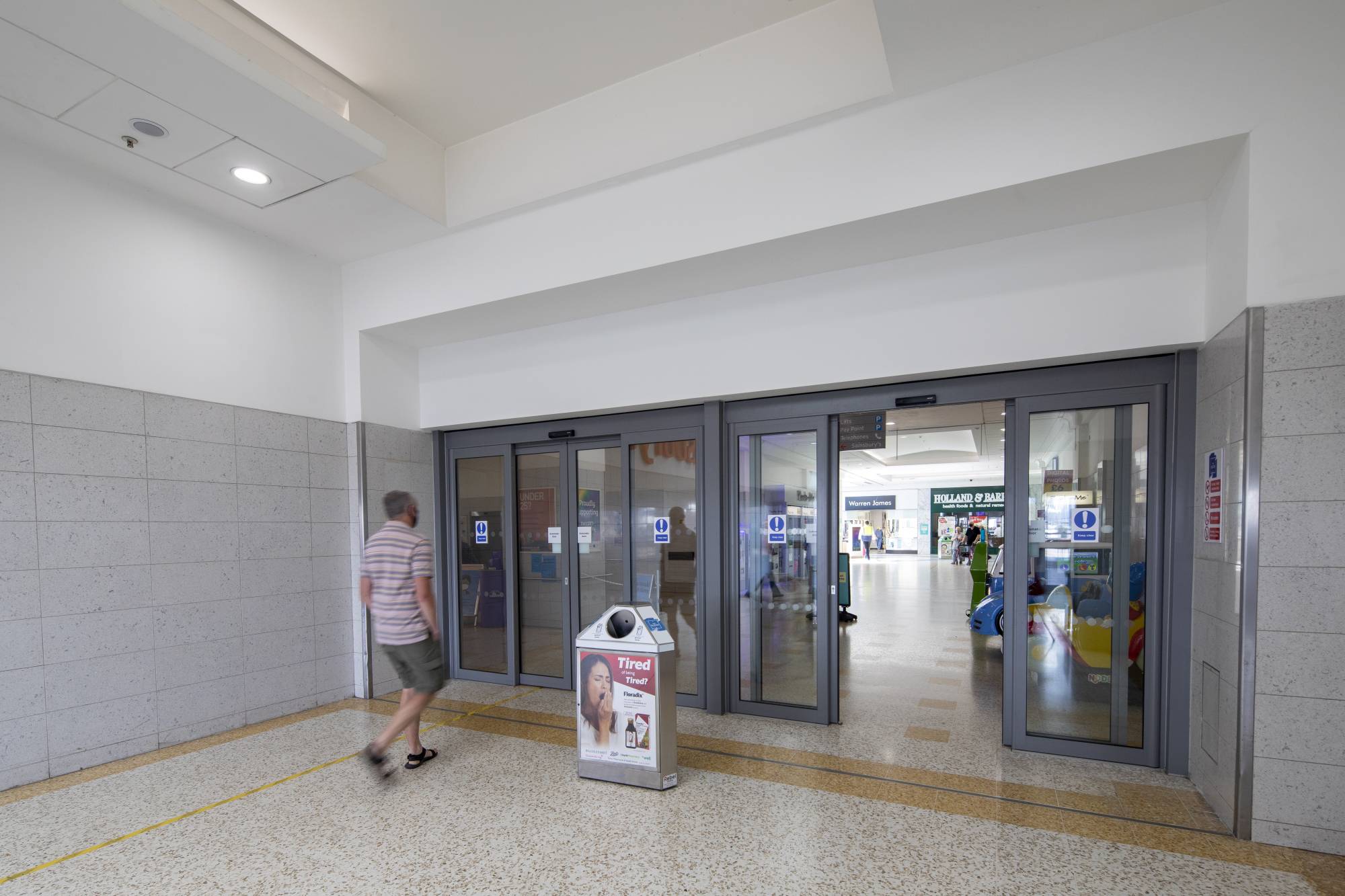

Automatic Sliding Door - ASSA ABLOY SL500 F

Arrangement

Beam mounted bi-parting with side screens

Beam mounted single sliding with side screen

Wall mounted Bi-parting door leaves only

Wall mounted Single sliding door leaf only

Wall mounted bi-parting with side screens

Wall mounted single sliding with side screen

Door leaves

-

Construction

Aluminium with laminated glazing

Finish and colour

Anodized

ASSA ABLOY Standard RAL

Consult manufacturer and insert details.

Non-standard RAL

Consult manufacturer and insert details.

Operation

Automatic opener motor and control system

Hardware

Electromechanical locking devices

Mechanical lock

Accessories

None

Activation and threshold presence sensor

Additional sidelights

Electronic emergency opening or closing unit

Emergency button

Interlocking between two openers

Key switch

Overlights

Beam mounted doors only.

Pocket screens

For maximum safety.

Programme selectors

Side screen presence detection

Standard product features

Colour:

Range of colours available.

Features:

Includes integrated weather seals and flush glazing, range of accessories available and wall or beam mounted.

Finish:

Anodized or RAL finish.

Material:

Aluminium with laminated glazing.

Size:

Size depends on arrangement.
