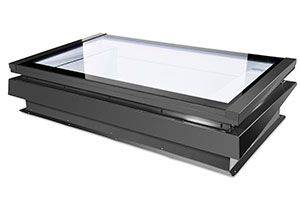

Automatic Opening Vent (AOV)
Verified by manufacturer 2 months ago
Automatic opening vent (AOV) to reduce smoke and heat, with a choice of glazing types.
Application
To reduce smoke and heat in the case of fires, and to enable escape.
Description
Features and benefits:
- In addition to effective air flow when operational, the automatic opening vents resist weather penetration and provide appropriate thermal insulation when closed.
- Can be used with simple control systems linked to smoke detectors, networked systems or centralized control panels.
- Manufactured in accordance with EN 12101-2.
- High performance U-value.
- Can be with exposed actuators or concealed actuators.
- Wide range of bespoke sizes from 700x600mm to 1500x2500mm.
Operation and ventilation options include;
- 140° opening AOV (1500mm maximum span/opening width).
- Electrically operated.
Glazing options (Developed U-Values shown) include;
Glass
- Double Glazed Glass Overall 1.0 W/m²K
- Triple Glazed Glass (Argon filled) 0.6 W/m²K/ Overall 0.78 W/m²K
- Triple Glazed Glass (Low E inner and outer Air filled) 0.8 W/m²K/ Overall 0.92 W/m²K
- Double Glazed Glass (Low E, Argon Filled 1.2 W/m²K/ Overall 1.2 W/m²K
- Double Glazed Glass (Low E, Air Filled 1.4 W/m²K/ Overall 1.3 W/m²K
Polycarbonate Domes
- Quad Skin Polycarbonate 1.4 W/m²K/ Overall 1.4 W/m²K
- Triple Skin Polycarbonate 1.8 W/m²K/ Overall 1.7 W/m²K
Insulated Solid Lid
- Insulated Solid Lid (double skin aluminium with 20mm insulation in-between) 1.4 W/m²K/ Overall 1.4 W/m²K
- Insulated Solid Lid (single skin aluminium with 16mm structured polycarbonate) 2.2 W/m²K/ Overall 1.9 W/m²K
Various fixing/foot types depending on application available as splayed or vertical include;
- Type A Foot – to suit flat board insulation
- Type B Foot – To suit laid to falls
- Type C Foot - Direct to deck – no insulation
- Type D - Adaptor kerb – Fixing to a builders kerb or upstand
- Type E Foot - Fixing to new timber ground
- Type F – Sleeve Over existing kerb
- Type G - for fixing to an existing kerb or plinth
Pitch
- On flat roof with 0° pitch (glass, polycarbonate or insulated solid lid) or 3° pitch (glass only).
Thermally insulated AOVs will have an X3 kerb
Non-thermal insulated AOVs will have an X5 kerb
General information
Color | White Other |
Finish | Powder-coated Guidance for specification option: (PPC ) |
Material | Aluminium Polycarbonate Glass |
Shape | Square Rectangle |
Length | 700 mm 800 mm 900 mm 1000 mm 1100 mm |
Width | 600 mm 700 mm 800 mm 900 mm 1000 mm |
Height | 300 mm |
Warranty description | Guidance for specification option: Available on request |
Uniclass | |
CAWS | L10/490 Roof ventilators |
Specification data - Natural smoke and heat exhaust ventilators
Standard | To EN 12101-2: 2003. |
Mounting | Roof mounted, single pitched.Guidance for specification option: Vent can open to 90º or 140º. Can be supplied with an insulated kerb for fixing directly to the roof deck. The roofing membrane is dressed up the outside of the kerb to provide weathering. Alternatively, if a kerb is constructed as part of the roofing system, a kerb adapter can be supplied. Both kerb and kerb adaptors are manufactured from folded galvanized steel or aluminium, and can be thermally broken. Roof mounted, double pitched.Guidance for specification option: Both pitches of the vent open to 90º. Can be supplied with an insulated kerb for fixing directly to the roof deck. The roofing membrane is dressed up the outside of the kerb to provide resistance to weathering. Alternatively, if a kerb is constructed as part of the roofing system, a kerb adapter can be supplied. Both kerb and kerb adaptors are manufactured from folded galvanized steel or aluminium, and can be thermally broken. |
Aerodynamic free area | Cv= 0.40.Guidance for specification option: According to EN 12101-2:2003, Annex B, B.1. |
Reliability classification | Re 1000. |
Snow load classification | SL 600. |
Low ambient temperature classification | T (-15). |
Wind load classification | WL 1500. |
Resistance to heat classification | B 300. |
Arrangement | Glazed.Guidance for specification option: Insulated aluminium lid. Select glazing material below. |
Dimensions | |
Length | 600 mm.700 mm.800 mm.900 mm.1000 mm.1100 mm.1200 mm.1300 mm.1400 mm.1500 mm.1600 mm.1700 mm.1800 mm.1900 mm.2000 mm.2100 mm.2200 mm.2300 mm.2400 mm. |
Width | 600 mm.700 mm.800 mm.900 mm.1000 mm.1100 mm.1200 mm.1300 mm.1400 mm.1500 mm. |
Height | Minimum 300 mm above finished roof level. |
Controls | 24 V d.c. actuator.Guidance for specification option: 'Power open/ power close' actuator, which must be operated by a CE-certified, battery backed control panel. |
Initiation | Automatic. |
Materials | |
Ventilator | |
Frame | Aluminium. |
Glazing | Insulating glass units.Guidance for specification option: Flat. Polycarbonate – single skin, dome.Polycarbonate – single skin, pyramid.Polycarbonate – triple skin, dome.Polycarbonate – triple skin, pyramid.Solid metal panel.Guidance for specification option: Flat. |
Finish | Polyester powder coated. |
Colour | White.Guidance for specification option: Standard. RAL.Guidance for specification option: Insert requirements. |
Integral upstands | |
Material | Aluminium. |
Finish | Polyester powder coated. |
Colour | White.Guidance for specification option: Standard. RAL.Guidance for specification option: Insert requirements. |
Seals | To achieve air permeability rating of 3 m³/h/m² at 50 pascals. |
Guards | Not required.Guard rail.Guidance for specification option: Available on request; consult manufacturer. |
Execution | Installing ventilators. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium Polycarbonate Glass |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | kg CO₂ eq/m² Self declared Guidance for specification option: Meets BRE EN 15804:2012+A1:2012 |
Recyclability | 95% |
