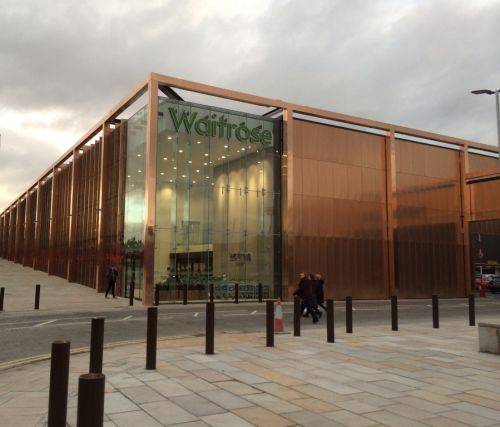

Aurubis Copper Intalok ® (Interlocking Reveal Rainscreen Facade Panel) - Interlocking Rainscreen Facade Panel
Verified by manufacturer 6 months ago
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type
EPD
Certificate type
Copper interlocking panel for use on rainscreens and soffits
Application
- Typically fixed back to timber or metal sub frames with a pressure-equalized, ventilated cavity.
- The Intalok ® reveal panel is also suitable for use as a soffit system.
Installation:
A list of approved installers is available on request by postcode.
Email:
gaynor@metalsolutions.uk.com
Description
Self-supporting copper reveal panels pre-formed on two sides can be used vertically, horizontally or diagonally to give a linear, striated appearance. Various shapes and sizes are available. Installation is straightforward, one panel interlocking into the next with a concealed fixing. Can be utilised as a rainscreen facade; a soffit plank and also suitable for a dormer fascia covering.
Features and benefits:
- Manufactured from lightweight corrosion resistant phosphorus deoxidized copper (Cu-DHP, 99.9% pure) which complies with EN 1172.
- Material - A1 Fire rated.
- Exceptional, indefinite lifespan demonstrated over hundreds of years.
- Suitable for situations where traditional metal roofing is preferred but with a requirement for a flatter appearance than standing seam type systems.
- Can be manufactured in various widths/ shadow gap combinations.
- Panels can be installed horizontally, vertically or diagonally.
- Bespoke Intalok ® reveal panels design is also available, consult manufacturer for details.
- A standard range of details are also available, consult manufacturer for details.
General information
Finish | Copper |
Material | Copper |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | H20/155 Sheet cladding (attached to timber battens) G20/99 Fascias/ barges/ soffits H20/10 Sheet cladding G20/950 Fascias/ barges/ soffits H92/120 Rainscreen cladding H20/150 Sheet cladding (attached to metal support systems) |
Specification data - Copper long strips
Standards | |
Sheet, strip and plate | Interlocking facade panel manufactured from coil. |
Material designation | Manufacturer guidanceCladding. |
Identification | Manufacturer guidanceSee manufacturer's information for guidance. |
Dimensions | Manufacturer guidanceLength up to 333 mm; insert requirements. |
Temper | Manufacturer guidanceSee manufacturer's information for guidance. |
Thickness | 1.0 mm. |
Factory finishes | Aurubis Nordic Standard.Guidance for specification option: Traditional 'bright' mill finish. Aurubis Nordic Brown, Light.Guidance for specification option: Pre-oxidized; minimizes hand and other construction marks that may occur during installation. Aurubis Nordic Brown, Dark.Guidance for specification option: Pre-oxidized; minimizes hand and other construction marks that may occur during installation. Aurubis Nordic Brass.Guidance for specification option: Copper/ zinc alloy with distinctive yellow colour which darkens to a dark brown over approx. a year when exposed to the atmosphere. Aurubis Nordic Brass WeatheredAurubis Nordic Bronze.Guidance for specification option: Copper/ tin alloy. Initially colour is similar to Nordic Standard; changes to a dark chocolate brown when exposed to the atmosphere. Aurubis Nordic Green.Guidance for specification option: Pre-patinated (mineral based). Special finishes can be requested; consult manufacturer for details. Aurubis Nordic Blue.Guidance for specification option: Pre-patinated (mineral based). Special finishes can be requested; consult manufacturer for details. Aurubis Nordic Royal.Guidance for specification option: Alloy of copper with aluminium and zinc. Rich gold colour, with a thin protective oxide layer. Matt finish. |
Reaction to fire | |
External face | To EN 13501-1, A1. |
Internal face | Manufacturer guidanceSee manufacturer's standard. |
Standards | To EN 1172:1997. |
Product Reference | Aurubis Reveal Panel |
Orientation | Horizontal. Vertical. Diagonal. Guidance for specification option: Insert required angle. |
Joint width | Manufacturer guidance0–20 mm; insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Finland |
Country of product manufacture | United Kingdom |
Material | Copper |
Manufacturing plant location | |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 4.19 kg CO₂ eq/kg |
Recyclability | 99% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 97 % |
Third party certifications
Third party certifications
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Aurubis - Fire Accreditation
EPD
Aurubis - Nordic Brass EPD
EPD
Aurubis - Nordic Bronze EPD
EPD
Aurubis - Nordic Brown EPD
EPD
Aurubis - Nordic Green EPD
EPD
Aurubis - Nordic Royal EPD
EPD
Aurubis - Nordic Standard Antique EPD
EPD
Aurubis Sustainability Report 2023
