Audley Red Mixture Stock - Clay Facing Brick
Verified by manufacturer 14 days ago
Sandfaced facing brick.
Application
Brickwork applications.
Description
Sandfaced facing brick.
Features and benefits:
- Brick pallet quantity (500).
- Brick packs supplied banded (plastic) packaged.
- Brick voids (7-12).
- EAN number (5036335033999).
- Factory: PAR.
General information
Color | Red |
Finish | Sandfaced |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102 mm |
Height | 65 mm |
Uniclass | |
CAWS | F1/304 Facing bricks Q10/130 Clay brick F10/110 Clay facing brickwork Q1/320 Clay brick pavers Q10/20 Clay brick F10/5 Facing brickwork |
SKU Code | A3022A |
GTIN/EAN | 5036335033999 |
Specification data - Clay bricks
Classification data | |
Description | Sandfaced facing brick. |
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Work size (length x width x height) | 215 x 102 x 65 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | 15 N/mm². |
Durability designation | F2. |
Density | |
Gross dry | 1840 kg/m³. |
Tolerance | T2, R1. |
Water absorption | 13 %. Guidance for specification option: Suction rate (1.6 Kg/m².min). |
Configuration | Single frog. |
Thermal conductivity | 1.0 W/m·K. |
Water vapour permeability | 50/100 µ. |
Bond strength | 0.15 N/mm². |
Reaction to fire | Class A1 to BS EN 13501-1. |
Type | Stock. |
Weight | 2.4 kg. |
Active soluble salts | S2. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Clay |
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
Brick Product Guide
Case studies

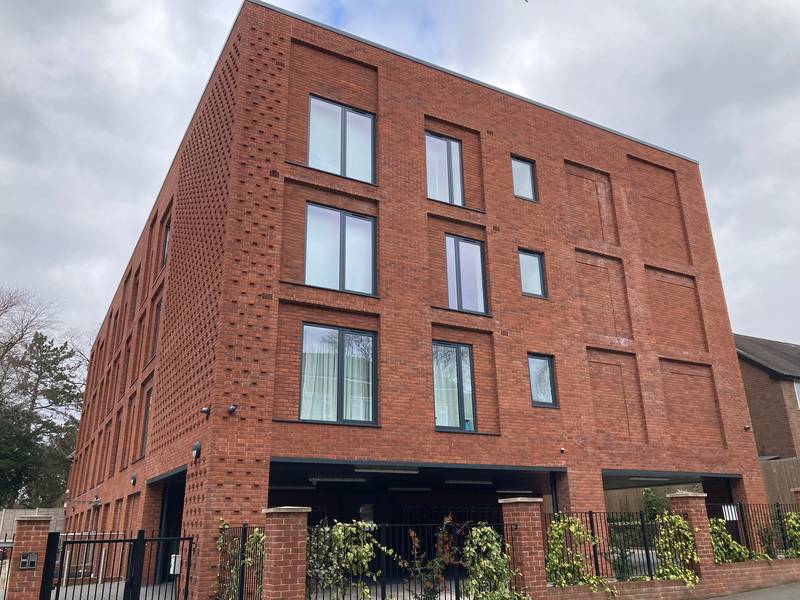

Davenport Park Apartments, Stockport
