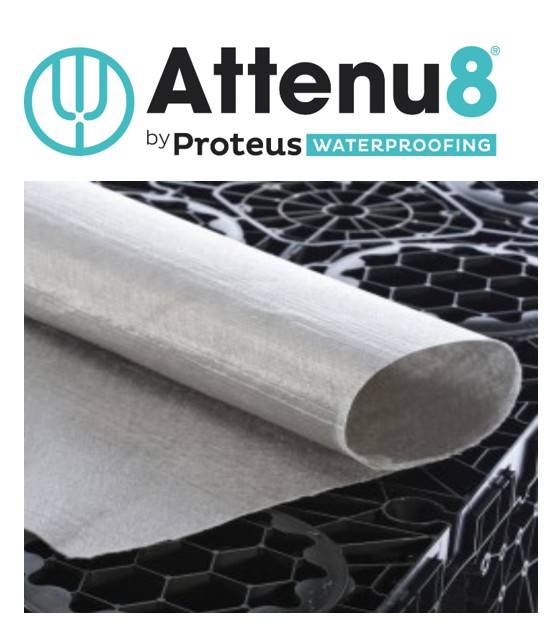

Attenu8® Filtration Layer - Non-Woven Polypropylene Sheet
Verified by manufacturer 26 days ago
Non-woven polypropylene sheet.
Application
For use within the Attenu8® blue roof system.
Description
Attenu8® Filtration Layer is a non-woven sheet composed of continuous filaments, mechanically bonded.
Features and benefits:
- 100% UV-stabilised polypropylene.
- Can be used on a range of blue roof build ups including inverted, warm or uninsulated systems.
Should be installed in accordance with the requirements of BS 6229, BS 8217, BS 8000-0 and BS 8000-4.
See manufacturer's literature for full installation instructions.
General information
Color | Silver |
Material | Polypropylene |
Shape | Rectangle |
Length | 100000 mm |
Width | 1830 mm |
Height | 1 mm |
Warranty description | Other Guidance for specification option: Defects arising from lack of maintenance or abnormal use may fall outside of the cover of the Proteus Waterproofing guarantee. |
Uniclass | |
CAWS | Q37/325 Slip layer Q37/360 Filter membrane |
SKU Code | A8AFL183 |
Specification data - Plastics sheets
Classification data | |
Product reference | Attenu8® Filtration Layer. |
Material | Polypropylene. |
Purpose | Filtration layer. |
Performance characteristics | |
Tensile strength (minimum) | Machine direction: 9 kN/m. Cross direction: 10 kN/m. |
Elongation to break | Machine direction: 90%. Cross direction: 65%. |
UV stabilization | 100% UV-stabilized. |
Form | Non-woven. |
Physical properties | |
Colour | Silver. |
Weight (minimum) | 27.5 kg. |
Dimensions | |
Thickness (minimum) | 1 mm. |
Width (minimum) | 1.83 m. |
Roll length (minimum) | 100 m. |
Mass | 140 g/m². Manufacturer guidanceMass per unit area. |
CBR puncture resistance | 1500 N. |
Permeability | 115 L/m²·s. Manufacturer guidanceVertical. |
Opening size | 105 µm. |
Sustainability data
Contains Red List materials | No |
Material | Polypropylene |
