Atlas Rimless 500 Back-to-Wall or Close Coupled WC Pan (4/2.6L)
Verified by manufacturer 18 hours ago
Back to wall or close coupled WC pan.
Application
Suitable for use in care and other commercial application.
Description
This smooth sided back to wall WC features a rimless design. It is suitable for use with the lever concealed cisterns BTWLEVCI and BTWPHACI, or push button concealed cisterns BTWPBCI and BTWCOMPACT2.
Can be converted into a close coupled pan using the Atlas Close Coupled Lever Cistern, SCWHPCI. Lord Soft Close Seat, STWHSCLORD available.
Features and benefits:
- CE compliant.
- Rimless design.
- Lifetime ceramic guarantee.
General information
Color | White |
Finish | Glazed |
Material | Vitreous china |
Shape | Other |
Length | 500 mm |
Width | 373 mm |
Height | 389 mm |
Warranty description | Lifetime Guidance for specification option: Ceramic guarantee. |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Product range |
Specification data - WC pans
Form | Back to wall. |
Pan height | 389 mm. |
Materials | |
Body | Vitreous china. |
Finish and colour | Glazed white. |
Water supply, outlet and seat holes | |
Water supply | Horizontal inlet. |
Outlet | Horizontal back outlet. |
Seat holes | Two seat holes. |
Sustainability data
Material | Vitreous china |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature

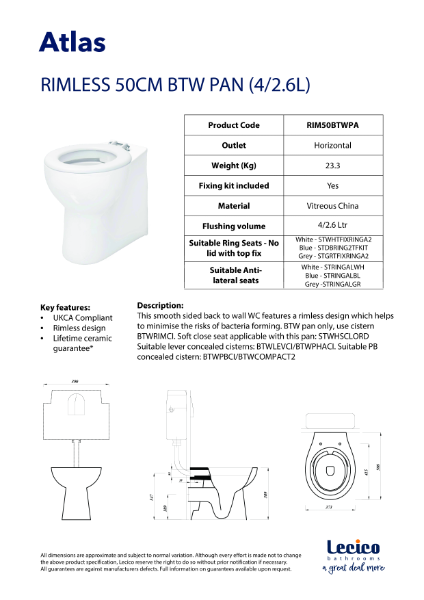

Atlas Rimless 500 Back-to-Wall or Close Coupled WC Pan (4/2.6L)
Atlas Range from Lecico Bathrooms
