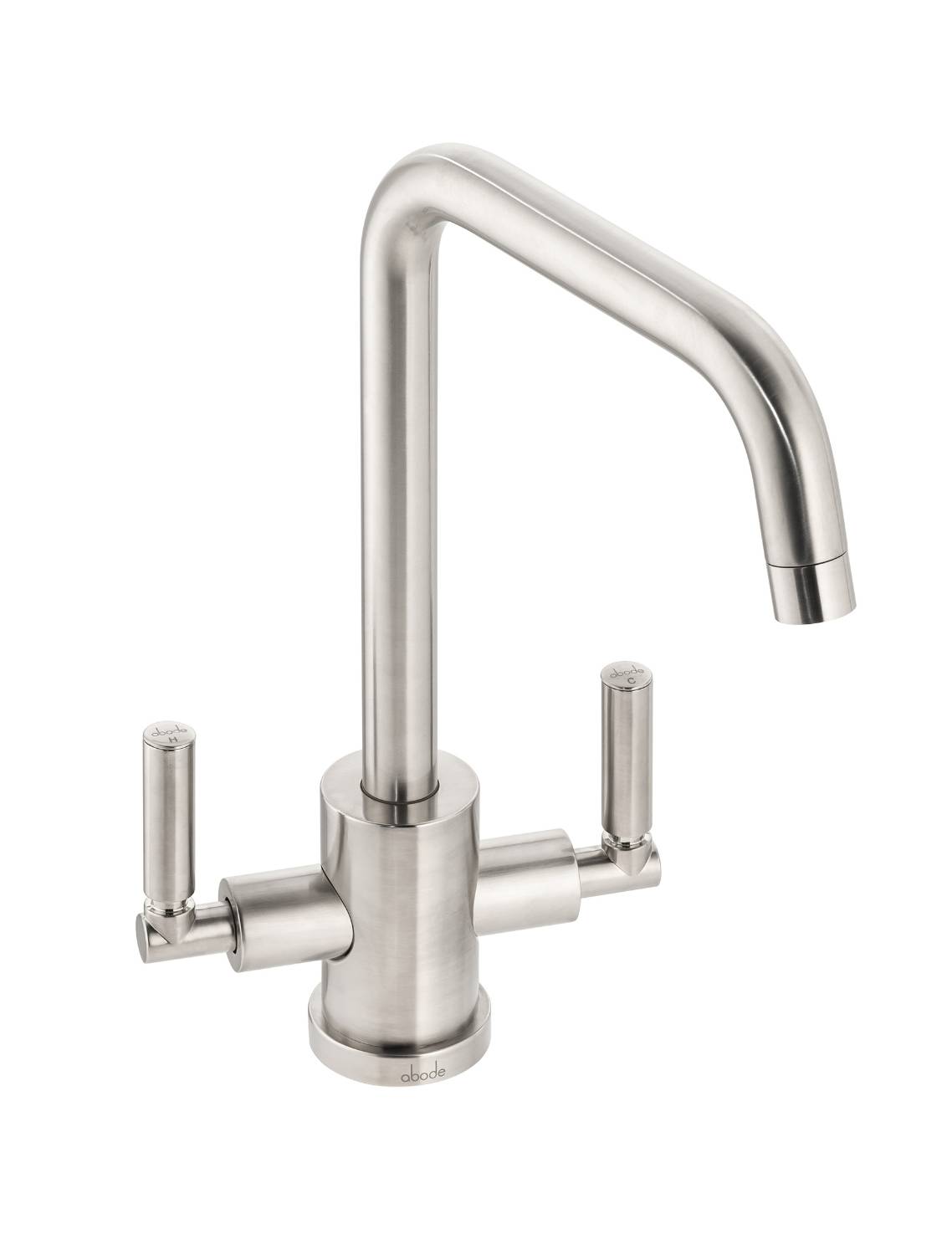

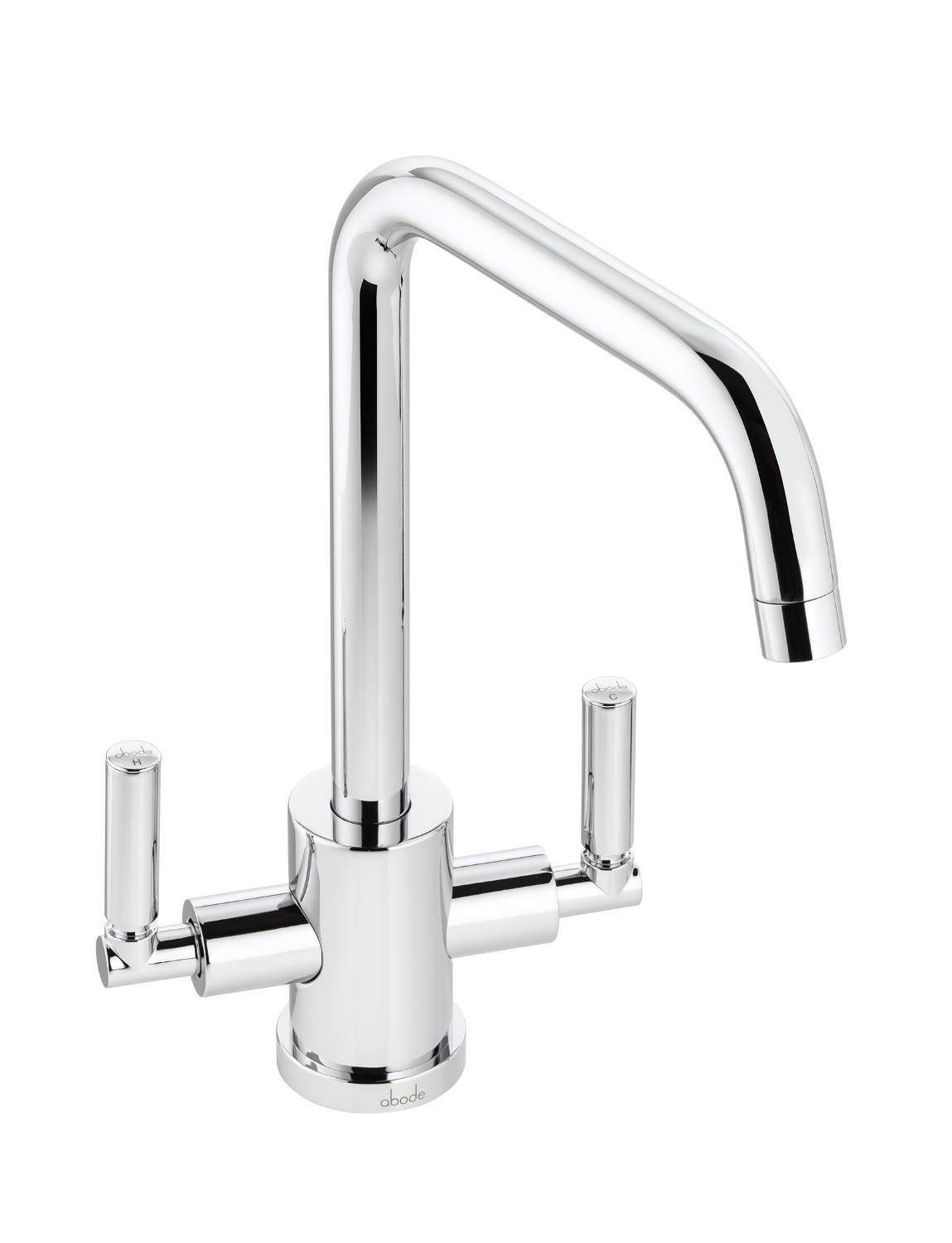

Atlas Quad Monobloc - Contemporary Kitchen Mixer Tap - Kitchen Monobloc Tap
Verified by manufacturer 4 months ago
Chrome: AT2166
Chrome: AT2166
Contemporary kitchen mixer tap.
Application
Deck-mounted tap suitable for both sink and worktop mounting.
Description
The sturdy and stylish Abode Atlas is a combination of sophistication and solid geometric forms with an added contemporary feel to maximise both style and performance.
British designed and Italian made with careful craftmanship that is comprised of a sturdy brass construction. Overflowing with inspiring design and detail, the Abode Atlas will be sure to suit any kitchen style.
Available in Brushed Brushed Brass, Brushed Nickel, Chrome and Matt Black.
General information
Color | Silver Grey Black Gold |
Finish | Brushed Chrome Matt |
Material | Brass |
Length | 201 mm |
Width | 60 mm |
Height | 391 mm |
Warranty description | Five year Guidance for specification option: Materials and workmanship defects and valves and working parts warranted for five years. Surface warranty defects and O-rings, hoses and gaskets warranted for one year. |
Uniclass | |
CAWS | N11/30 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes |
Product range |
Specification data - Sink taps
Approval | Water Regulations Advisory Scheme (WRAS)-approved. |
Form | Mixer taps. |
Materials | |
Body | Brass. |
Finish and colour | Chrome. |
Flow rate (maximum) | 16.67 L/ min at 3 bar. |
Water supply temperature (maximum) | 70°C. |
Integral accessories | 2 mm and 2.5 mm a/f Allen key.Guidance for specification option: SCO 06028. |
Water pressure | 0.20–5.50 bar. |
Non-return valve | Not required. |
ConnectionType | Grub screw. |
InletConnectionSize | M12. |
OutletConnectionSize | 1/2" BSP Female. |
Type/ pipe diameter | Flexible stainless braided hose. |
Weight | 2.03 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
