ATK103 FLH-R Rainscreen Subframe System Stainless Steel - Minor Support System

Aluminium rainscreen system for concealed fixing with stainless steel wall holder for energy efficiency, load transfer and non-combustibility.

Features and benefits:

• They are used for vertical load transfer of the occurring loads and pass them on to the next subframe elements.
• The vertical profiles are connected to the other substructure elements with system rivets.
• Together with the wall holders and their projection length, the geometry of the vertical profile determines facade offset.
• This system also enables the compensation of structural tolerances of the building substrate.
• Direct fixing of facade panels to the vertical profiles can be visibly riveted/ screwed or invisibly glued.
• In addition, the profiles can be used as a distance substructure and as a base structure (e.g. for horizontal systems with concealed fixings).
• Different geometries allow applications for all cladding materials.
• The profiles are available in 6 m lengths as standard.
• The vertical profiles allow multifunctional use for direct fixings, as a spacer substructure or as a base construction.
• The combination of wall holder and vertical profile ensures optimum compensation of tolerances in the building substrate.
• The geometry of the vertical profile enables optimized load transfer.
• The surfaces are available in uncoated or black.
• The various available geometries are specially adapted to the individual application.

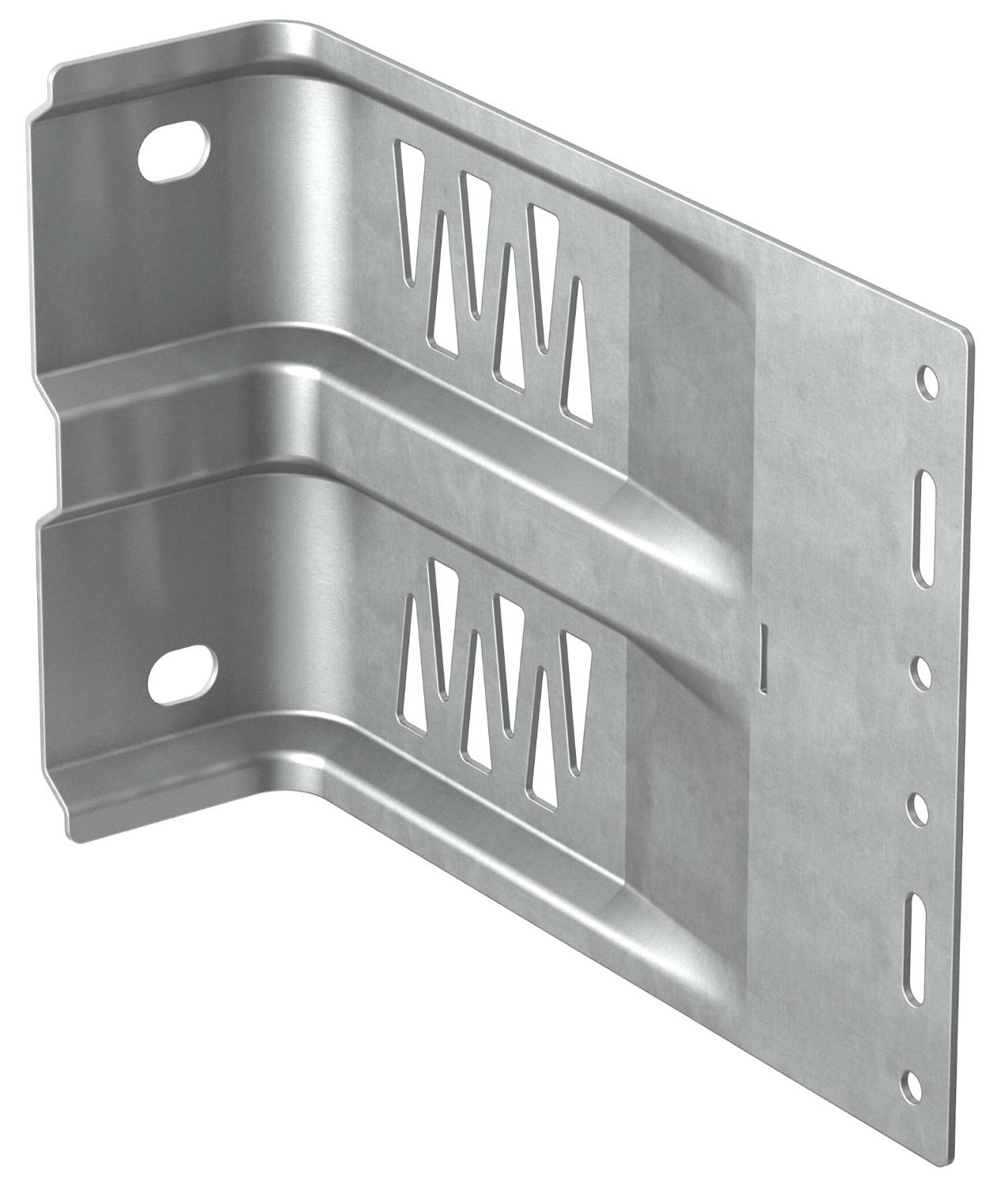

Stainless steel wall brackets:

• Optimal reinforcement due to profiling.
• No thermal separating element necessary for optimal values.
• 10.5 mm slotted holes for anchors and bolt anchors.
• Designed for excellent thermal efficiency.
• Stainless steel: non-combustible, high corrosion-protection class (CRC III).
• Projection lengths from 120 to 340 mm.
• Holes for fixed and sliding points.
• Slot for optional installation of helping hand clip.
