ATK103 Rainscreen Subframe System Aluminium - Minor Support System

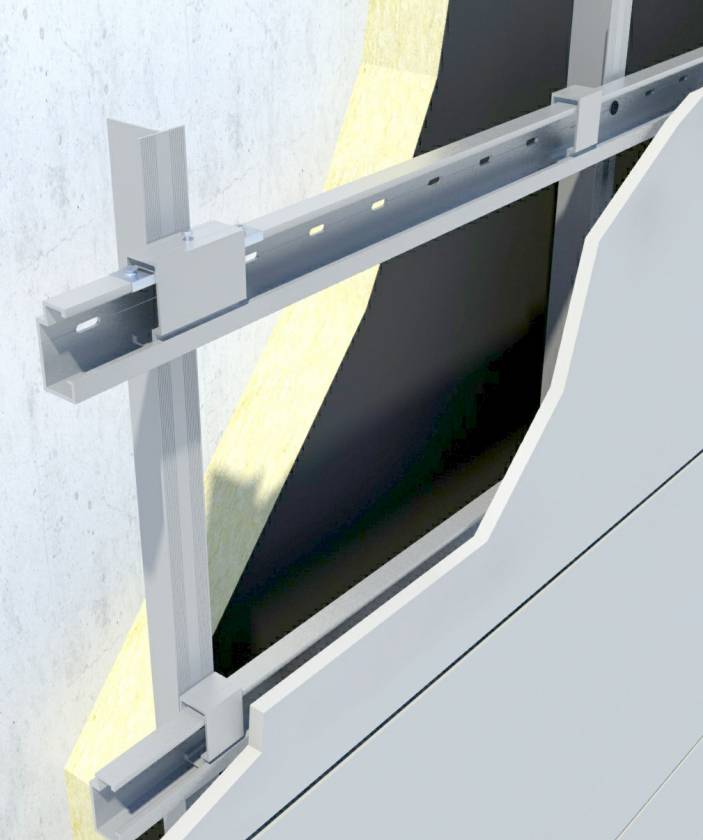

ATK103 system is an additional series of horizontal rails and clasps for use with the ATK100 system* to make it suitable for concealed fixed panel system such as undercut panel anchors.

For use as a subframe to support cladding as part of back-ventilated and drained rainscreen cladding systems on masonry, concrete and steel-frame external walls of new or existing domestic and non-domestic buildings.

*Specified separately.

Features and benefits:

• They are used for vertical load transfer of the occurring loads and pass them on to the next subframe elements.
• The vertical profiles are connected to the other substructure elements with system rivets.
• Together with the wall holders and their projection length, the geometry of the vertical profile determines facade offset.
• This system also enables the compensation of structural tolerances of the building substrate.
• Direct fixing of facade panels to the vertical profiles can be visibly riveted/ screwed or invisibly glued.
• In addition, the profiles can be used as a distance substructure and as a base structure (e.g. for horizontal systems with concealed fixings).
• Different geometries allow applications for all cladding materials.
• The profiles are available in 6 m lengths as standard.
• The vertical profiles allow multifunctional use for direct fixings, as a spacer substructure or as a base construction.
• The combination of wall holder and vertical profile ensures optimum compensation of tolerances in the building substrate.
• The geometry of the vertical profile enables optimized load transfer.
• The surfaces are available in uncoated or black.
• The various available geometries are specially adapted to the individual application.
