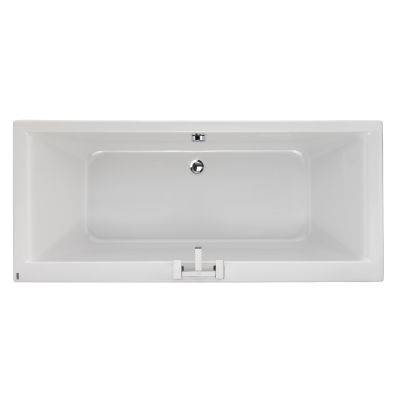

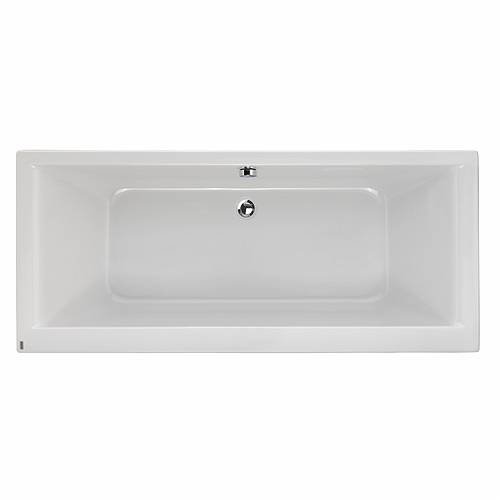

Athena Bath 1700
Verified by manufacturer over a year ago
AH8500WH, Athena Bath 1700 x 750, 0T, No Grip, Encapsulated
AH8500WH, Athena Bath 1700 x 750, 0T, No Grip, Encapsulated
A square shaped double ended bath.
Application
Suitable for a folding or fixed bath screen.
Description
Square shaped double ended bath.
Features and benefits:
- Modern design.
General information
Color | White |
Finish | Smooth |
Material | Acrylic |
Shape | Rectangle |
Length | 750 mm |
Width | 1700 mm |
Height | 395 mm |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Product range |
Specification data - Baths
Form | Square, single ended bath. |
Standards | To BS EN 14516, EN 263. |
Materials | Acrylic.Guidance for specification option: 4 mm acrylic sheet reinforced with glass fibre. |
Colour | White. |
Size | 1700 x 750 mm. |
Volume to overflow (maximum) | 195 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Waste | WF5369CP, Bath pop up waste and overflow.WF5650CP, Bath chain waste 1.5" and overflow. |
Support frame | Supported on wooden frame with steel cradle and adjustable feet. |
Integral accessories | Clips provided for securing to wall. |
Bath End Panel | Not required. PP2183WH, Endurance end panel, twin skin, 750 mm. |
Bath Front Panel | Not required. PP2181WH, Endurance front panel, twin skin, 1700 mm. |
