This product is no longer available

AT 200 Aluminium Entrance Door
Description

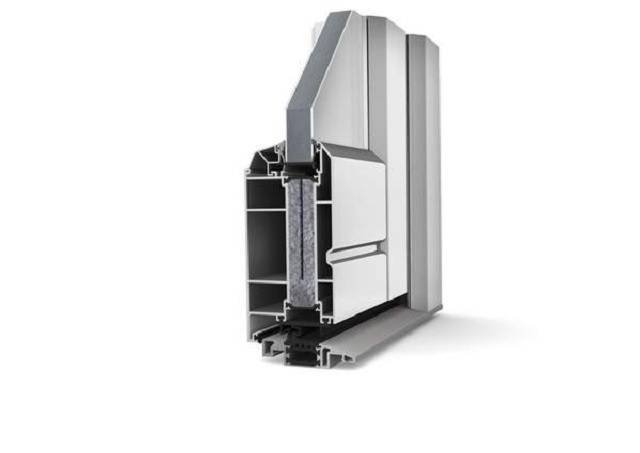

Aluminium entrance door, featuring a profiled door leaf inside and outside which can optionally be manufactured square-edged. Burglary protection is provided by standard multi-point locking with hook bolts and the extremely strong door leaf. The three-chamber frame profile and foam insulation core ensures high thermal insulation. The door hinges are three-dimensionally adjustable, construction depth is 80 mm. Up to ten-year warranty - consult manufacturer for details.

General information
Size

As drawing

Insert reference.

As schedule

Insert reference.

Material

Aluminium with foam insulation core for high thermal insulation

Uniclass 2015
Pr_30_59_24_52 Metal doorsetsPrimary
Specification data - Metal doorsets
Product Reference

AT 200 Aluminium Entrance Door

Size

As drawing

Insert reference.

As schedule

Insert reference.

Type

AT200-17-061

AT200-17-065

AT200-17-068

AT200-17-075

AT200-17-077

AT200-17-087

AT200-17-088

AT200-17-089

Design style

Ambiente

Home Pure

Home Soft

Door leaf profile

Profiled

Standard.

Square edged

Locking

EE

Half-motoric.

EV-E, EV-C

Fully-motoric.

MV

Standard, mechanical.

MV-AM

Automatic.

Glazing

Insert requirement, consult manufacturer's literature for information.

Handle

Insert requirement, consult manufacturer's literature for information.

Colour/ Finish

Insert requirement, consult manufacturer's literature for information.

Accessories

Insert requirements, consult manufacturer's literature for information.

Standard product features

Material:

Aluminium with foam insulation core for high thermal insulation.

Frame profile:

Three-chamber profile.

Construction depth:

80 mm.

Gasket:

Triple gasket.

Hinges:

Exposed, three-dimensionally adjustable.

Locking:

Multi-point locking.

Threshold:

Low threshold, thermally broken.

Performance:

  • Thermal insulation: As low as 1.2 W/m²K.
  • Sound reduction: Up to 40 dB.
  • Security: Up to RC2.

Product Options

Type:

Different styles are available to suit different applications with various viewing panel options; consult manufacturer's literature for more information.

Colour/ Finish:

A wide range of colour options are available, including timber effect and metallic colours. Consult manufacturer's literature for more information.

Handle:

Many options are available dependent on type, consult manufacturer's literature for information.
