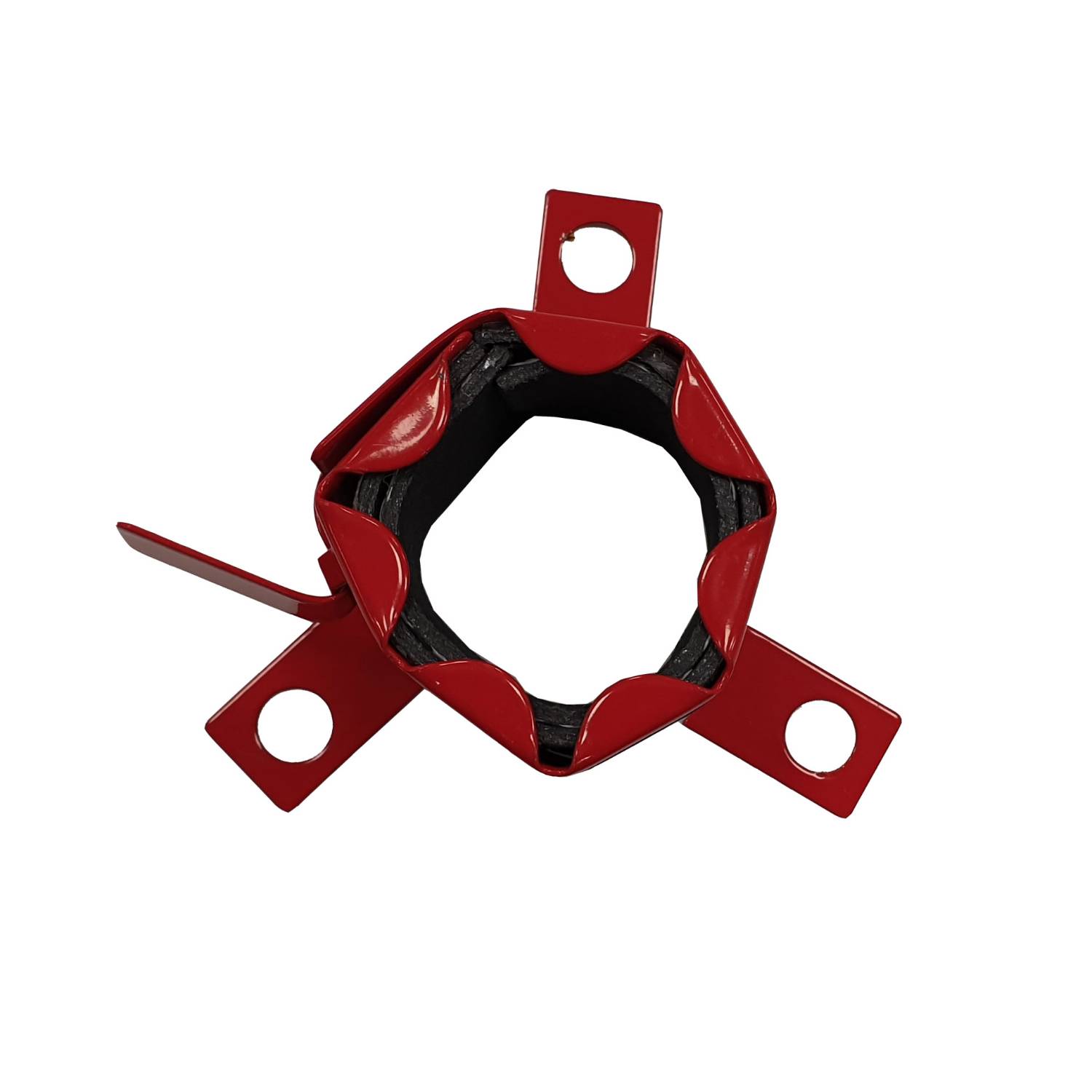

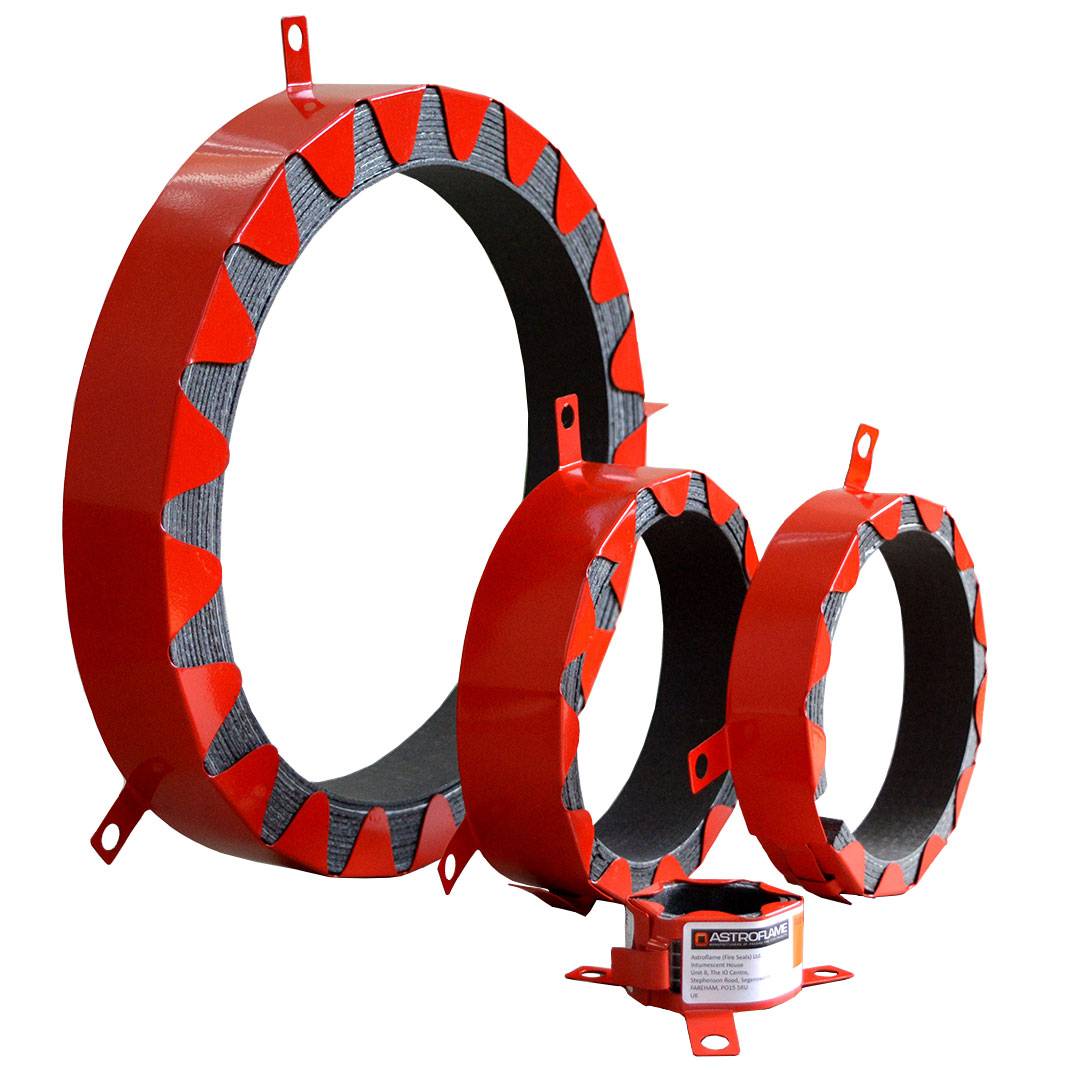

ASTRO X SERIES CE PIPE COLLAR

Name: ASTRO X SERIES CE PIPE COLLAR
Brand: Astroflame Fireseals Ltd
SKU: 2CXzGMLJKJNjS4BkcHgfx6

Verified by manufacturer 5 days ago

AFPC32X/CE - Diameter 32 mm

Astroflame Fireseals Ltd

Product certifications:

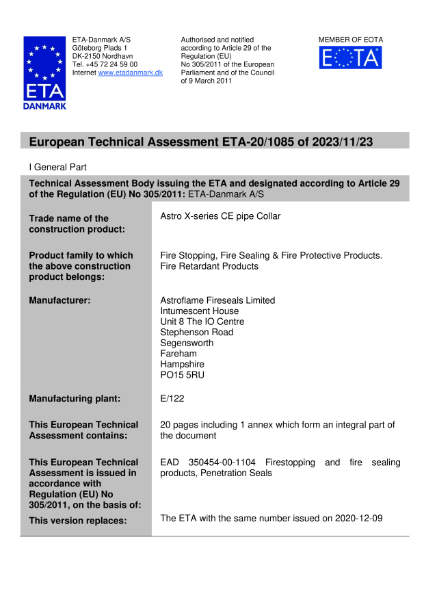

European Technical Approval (ETA)
Certificate type

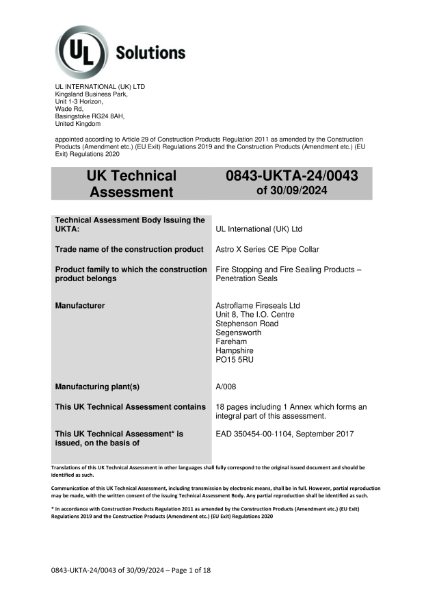

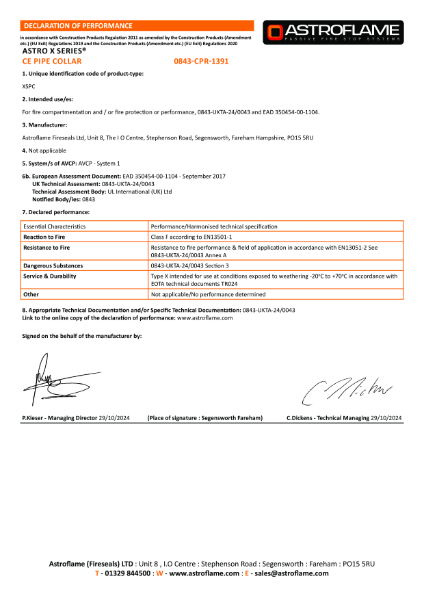

UK Technical Assessment (UKTA)
Certificate type

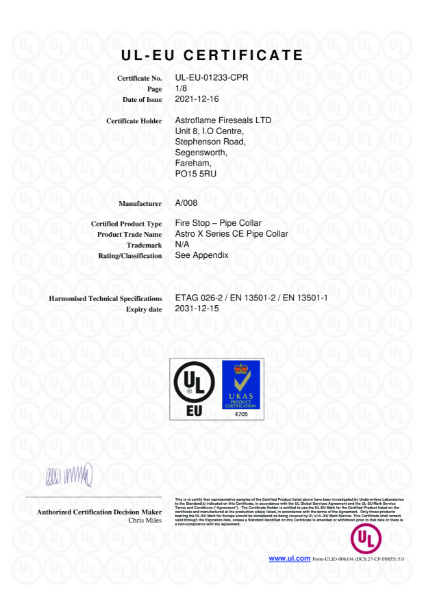

UL-EU Certified
Certificate type

Intumescent CE and UKCA marked pipe collars.

Jump to:

+44 (0)1329 844500 Website

Application

Suitable for use internally around pipes for fire sealing and compartmentation of fire.

Description

Astro X Series CE Pipe Collars are designed and tested to seal service penetration apertures containing plastic pipes, using thermoplastic composites based on graphite intumescent technology.

Developed to provide a high volume expansion and pressure seal during a fire. The X Series CE Collar offers EI120 and EI240 tested in accordance with EN 1366-3: 2009, the maximum diameter being 250 mm, the ultra thin design of Astro X Series Collar shell gives a depth of 30 mm and 40 mm ensuring that they can be installed into the tightest of locations.

Astro X Series Pipe Collar can be installed on flexible or rigid wall and rigid floor constructions. It can also be used with Astro Batt systems.

They are compatible with polypropylene (PP), polyethylene (PE) and polyvinyl chloride (PVC) pipes. X Series Collar is tested with end capping configurations that cover U/U, C/U, U/C and C/C pipes.

Astro X Series CE Pipe Collar is used around combustible pipes to form a penetration seal used to reinstate the fire resistance performance of wall and floor constructions, where they have been provided with apertures for the penetration of combustible pipe services.

Astro X Series CE Pipe Collar include an intumescent component incorporated into a mild steel case to close any gaps and joints and provide a closure of combusting pipes when heated and to prevent the passage of fire.

Astro X Series CE Pipe Collars are supplied in assembled form, without fixings. The collar is wrapped around the pipe at the soffit or both faces of walls, depending on application.

*For specific details please refer to the test certification.

Features and benefits:

CE and UKCA marked.
UL-EU accreditation.
Tested in accordance with EN 1366-3 : 2009.
Pipe Collar size range 32–250 mm, please refer to the test certification.
Compatible with PP, PE, PVC-U, ABS, SAN+PVC pipes, please refer to the test certification.
Three fixing tabs.
End capping – Uncapped U/U and Capped U/C & C/U pipes, please refer to the test certification.
New design with reduced height for tight installations.
For internal use.

General information

Color	Red
Finish	Gloss
Material	Steel Graphite
Shape	Circle
Length	32 mm 40 mm 55 mm 63 mm 75 mm 82 mm 90 mm 110 mm 125 mm 140 mm 160 mm 200 mm 250 mm Show more Manufacturer guidance Diameter
Height	30 mm 40 mm Manufacturer guidance Depth

Uniclass	Pr_65_52_61_86 Surface-mounted intumescent pipe collarsPrimary
CAWS	J41/480 Pipe collars J40/370 Preformed collars for pipes, ducts, cables, etc. P12/370 Pipe collars P12/43 Pipe collars

SKU Code	AFPC32X/CE

Specification data - Surface-mounted intumescent pipe collars

Classification data

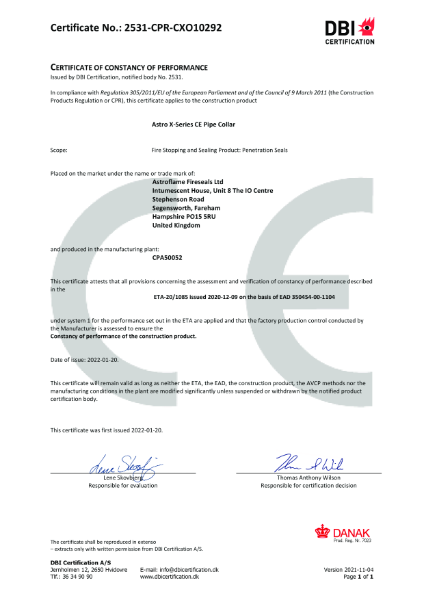

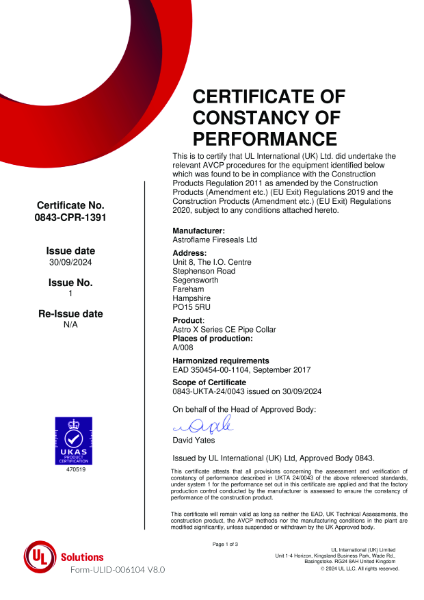

Third-party certification	UKCA: 0843-UKTA-24/0043, 0843-CPR-1391. CE: CE-ETA-20-1085, CE-2531-CPR-CXO10292.
Sizes	Diameter 32 mm.
Fire performance	To EN 13501-1, Class E. Guidance for specification option: See manufacturers literature for resistance to fire.
Expansion	Manufacturer's standard. Guidance for specification option: Developed to provide a high volume expansion and pressure seal during a fire. The X Series CE Collar offers EI120 and EI240 tested in accordance with EN 1366-3 : 2009, the maximum diameter being 250 mm, the ultra thin design of Astro X Series Collar shell gives a depth of 30 mm and 40 mm ensuring that they can be installed into the tightest of locations.
Durability	Type X. Guidance for specification option: Intended for use at conditions exposed to weathering -20°C to +70°C in accordance with EOTA technical documents TR024.
