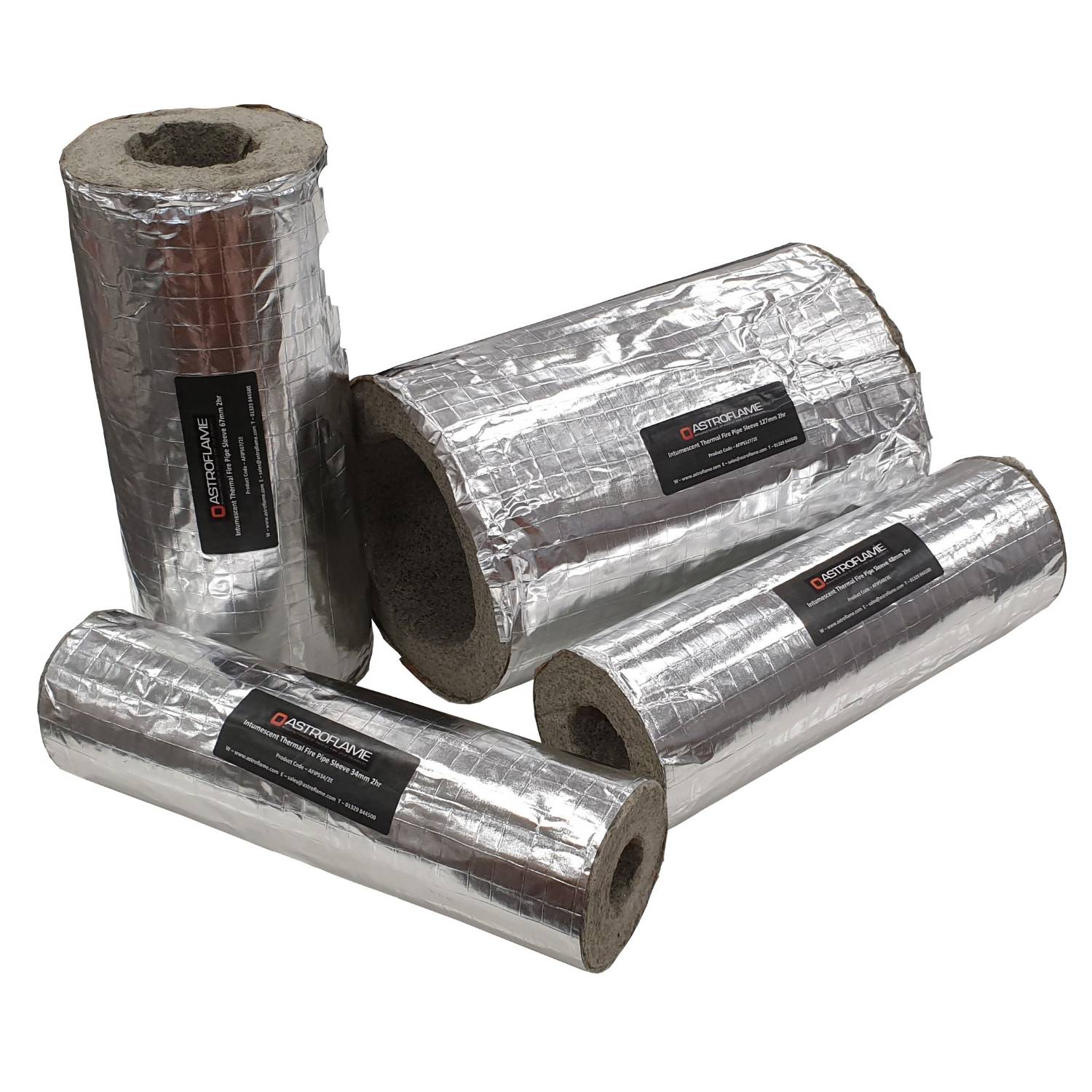

ASTRO THERMAL FIRE PIPE SLEEVE

Verified by manufacturer 6 months ago

Astroflame Fireseals Ltd Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

Thermal fire pipe sleeve.

Jump to:
+44 (0)1329 844500 Website

Application

Suitable for both metal and plastic pipes.

Description

The Astro Thermal Fire PS are a range of passive fire protection penetration seals designed to firestop insulated metal and combustible plastic pipes. The Fire Sleeves offer Fire, Acoustic, Thermal and Vapour seal performance to a range of pipes passing through various wall or floor constructions.


The CE Marked range are fire tested in accordance with EN 1366-3 with additional testing and assessments to BS 476 Part 20. The Astro Thermal Fire PS are manufactured from a unique, low smoke, zero halogen intumescent material. The Fire Sleeves are supplied pre-formed and ready to install to suit a variety of pipe diameters.

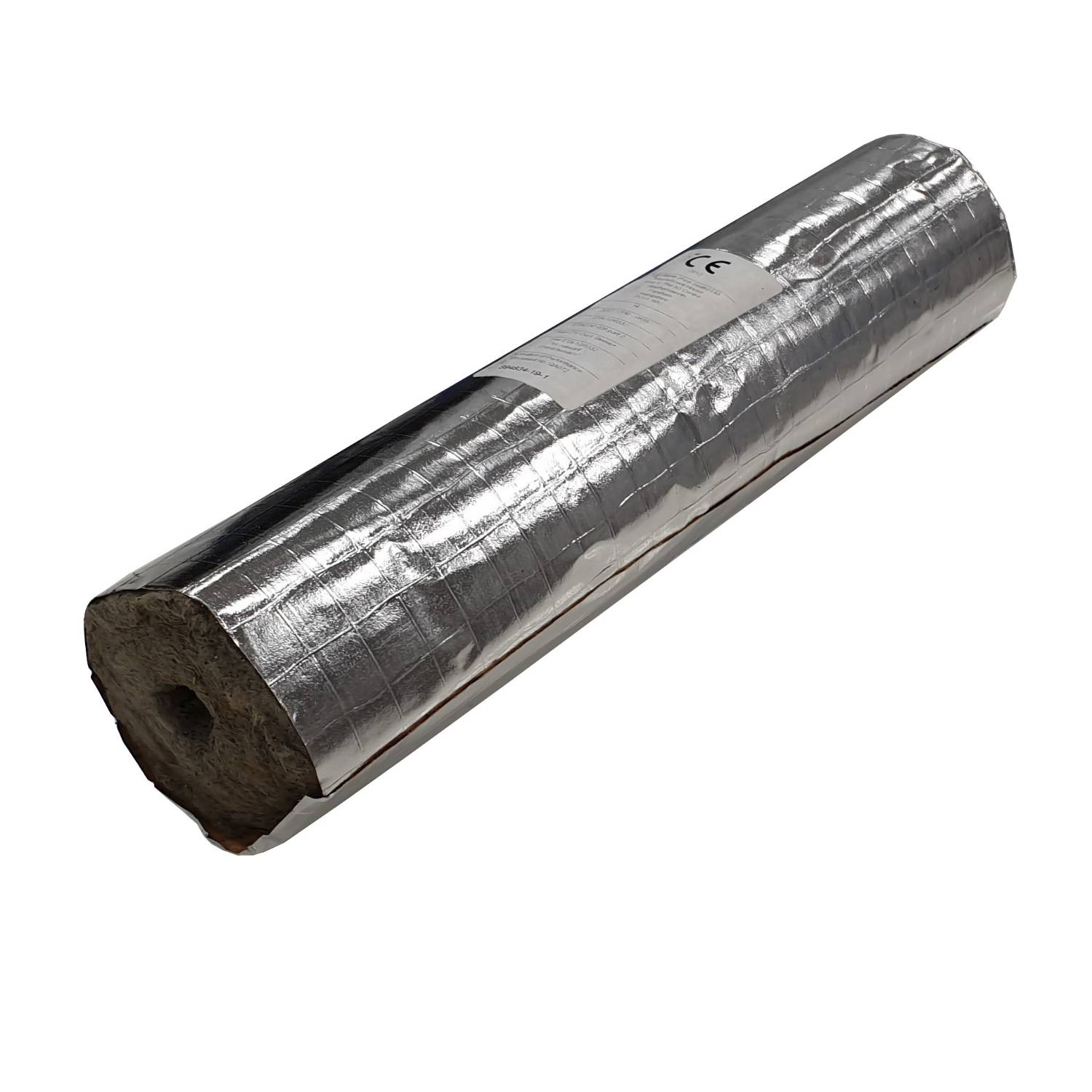

With a nominal thickness of 25mm, the compressible intumescent sleeve is supplied wrapped in a reinforced aluminium foil allowing it to be cut down its length and retro-fitted around the pipes. This provides an effective fire, smoke and acoustic seal whilst also allowing for some thermal movement. Fire Ratings of EI30, EI60, EI90, EI120 or even up to EI240 minutes are offered depending on the construction type.


Features and benefits:

  • CE Marked.
  • 4-in-1 Solution – Fire, Acoustic, Thermal and Vapour Seal.
  • Up to EI120 Minutes Fire Rating in Gypsum Walls and Solid Floors.
  • Up to EI240 Minutes Fire Rated in Solid Walls.
  • Suitable for both Metal and Plastic Pipes.
  • Simple & quick to install, no fixings or sleeving required.
  • Available to suit pipe diameters of 15mm to 169mm.
  • 1 length of Fire Sleeve can replace two fire collars.
  • Lubrizol Approved.
  • Cost effective, can be cut to length.

General information

Color

Silver

Finish

Foil

Shape

Circle

Width

17 mm

21 mm

27 mm

34 mm

42 mm

Show more

Manufacturer guidance

Diameter

Uniclass

Pr_65_52_61_63 Pipe sleevesPrimary

CAWS

P12/330 Flexible intumescent gap sealer

P12/35 Flexible intumescent gap sealer

P31/30 Pipe sleeves

Specification data - Pipe sleeves

Material

A unique, low smoke, zero halogen intumescent material.

Form

AFIPS17/2E Astro Thermal Fire Pipe Sleeve 17 mm (diameter).

AFIPS21/2E Astro Thermal Fire Pipe Sleeve 21 mm (diameter).

AFIPS27/2E Astro Thermal Fire Pipe Sleeve 27 mm (diameter).

AFIPS34/2E Astro Thermal Fire Pipe Sleeve 34 mm (diameter).

AFIPS42/2E Astro Thermal Fire Pipe Sleeve 42 mm (diameter).

AFIPS48/2E Astro Thermal Fire Pipe Sleeve 48 mm (diameter).

AFIPS54/2E Astro Thermal Fire Pipe Sleeve 54 mm (diameter).

AFIPS60/2E Astro Thermal Fire Pipe Sleeve 60 mm (diameter).

AFIPS67/2E Astro Thermal Fire Pipe Sleeve 67 mm (diameter).

AFIPS76/2E Astro Thermal Fire Pipe Sleeve 76 mm (diameter).

AFIPS80/2E Astro Thermal Fire Pipe Sleeve 80 mm (diameter).

AFIPS89/2E Astro Thermal Fire Pipe Sleeve 89 mm (diameter).

AFIPS102/2E Astro Thermal Fire Pipe Sleeve 102 mm (diameter).

AFIPS108/2E Astro Thermal Fire Pipe Sleeve 108 mm (diameter).

AFIPS114/2E Astro Thermal Fire Pipe Sleeve 114 mm (diameter).

AFIPS127/2E Astro Thermal Fire Pipe Sleeve 127 mm (diameter).

AFIPS140/2E Astro Thermal Fire Pipe Sleeve 140 mm (diameter).

AFIPS159/2E Astro Thermal Fire Pipe Sleeve 159 mm (diameter).

AFIPS169/2E Astro Thermal Fire Pipe Sleeve 169 mm (diameter).

Fire resistance

Fire Ratings of EI30, EI60, EI90, EI120 or even up to EI240 minutes are offered depending on the construction type.

Third-party certification

CE: CE-ETA - 20-1337, CE-2812-CPR-0555.

Third party certifications

European Technical Approval (ETA)

European Technical Approval (ETA)

Astro Thermal Fire PS (ETA)

Literature

Astro Thermal Fire PS (PDS)

Astro Thermal Fire PS (PDS)

Astro Thermal Fire PS (SDS)

Astro Thermal Fire PS (SDS)

Astro Thermal Fire PS (DoP)

Astro Thermal Fire PS (DoP)

Astro Thermal Fire PS (CoC)

Astro Thermal Fire PS (CoC)

Astro Thermal Fire PS (TDS)

Astro Thermal Fire PS (TDS)
