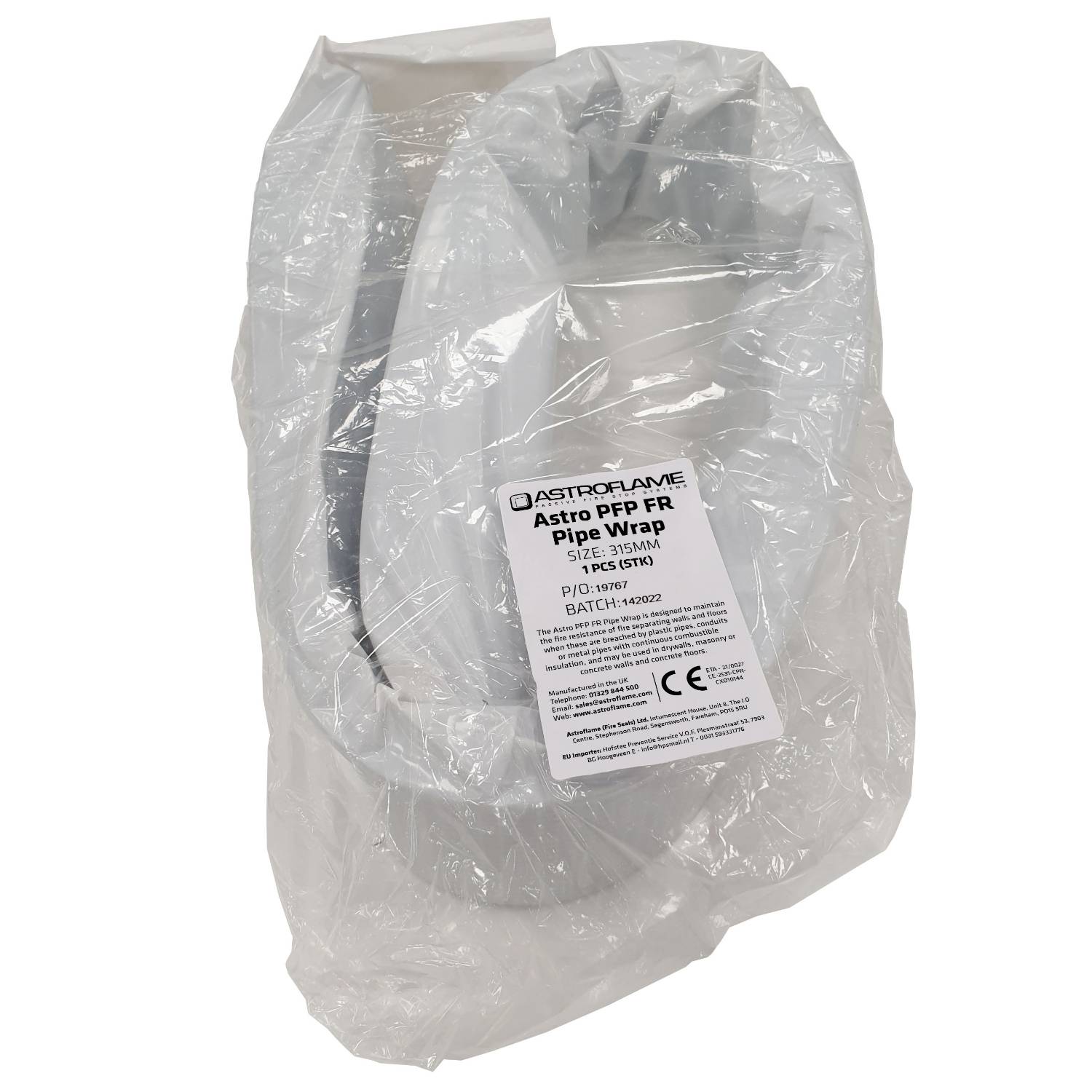

ASTRO PFP FR PIPE WRAP
Verified by manufacturer 4 days ago
AFPFPPW 55 - Astro PFP FR Pipe Wrap 55 mm
AFPFPPW 55 - Astro PFP FR Pipe Wrap 55 mm
European Technical Approval (ETA)
Certificate type
Intumescent pipe wraps, CE marked.
Application
For use where Plastic pipe work passes through Compartment walls and floors.
Description
The Astro PFP FR Pipe Wrap is designed to maintain the fire resistance of fire separating walls and floors when these are breached by plastic pipes, conduits or metal pipes with continuous combustible insulation, and may be used in drywalls, masonry or concrete walls and concrete floors.
Each pipe wrap consists of a graphite based reactive intumescent strip, which reacts to heat and closes the opening left by the softening plastic pipe or pipe insulation in a fire. The pipe wrap is installed completely around the pipes or insulation and secured with the self adhesive tab. The annular space around the pipe wrap is sealed with Astro PFP FR EX Mortar or Astro PFP FR Boards.
Features and benefits:
- For plastic pipe sizes from smallest pipes available to Ø315 mm with a wide range of pipe wall thicknesses.
- For metal pipes with continuous combustible pipe insulation.
- For plastic pipes with cables (conduits).

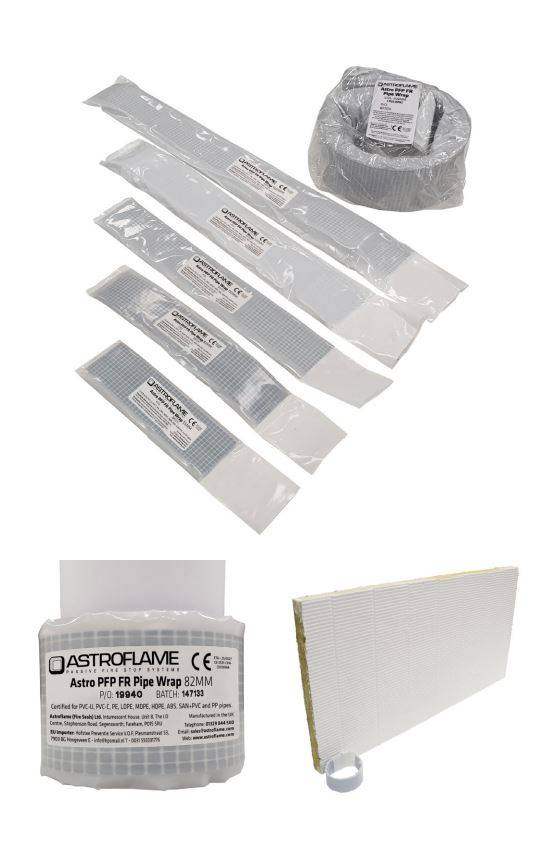

- Pipe wraps comes ready made for most common diameters.
- Fire classifications up to 240 minutes for both integrity and insulation.
- Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC and PP pipes.
- Tested and certified for U/U pipe end applications.
- Simple to install in both Astro PFP FR Board and Astro PFP FR EX Mortar.
- For internal use.
- CE marked.
General information
Color | White |
Material | Graphite |
Shape | Circle |
Length | 55 mm 82 mm 110 mm 125 mm 160 mm |
Uniclass | |
CAWS | P12/35 Flexible intumescent gap sealers P12/330 Flexible intumescent gap sealers |
SKU Code | AFPFPPW 55 |
Specification data - Flexible intumescent gap seals
Classification data | |
Third-party certification | CE: ETA - 21/0027 and CE-2531-CPR-CXO10144. |
Size | 55 mm. |
Fire performance | Up to 240 minutes (Application dependent refer to ETA for fire Performance details). |
Expansion | Expansion ratio 28:1. Expansion pressure 55 N. Normal expansion time Less than 10 minutes. Minimum expansion temperature 150°C. |
Durability | Z2 intended for use in internal conditions with humidity classes other than Z1, excluding temperatures below 0°C. |
Sustainability data
Material | Graphite |
Product certifications

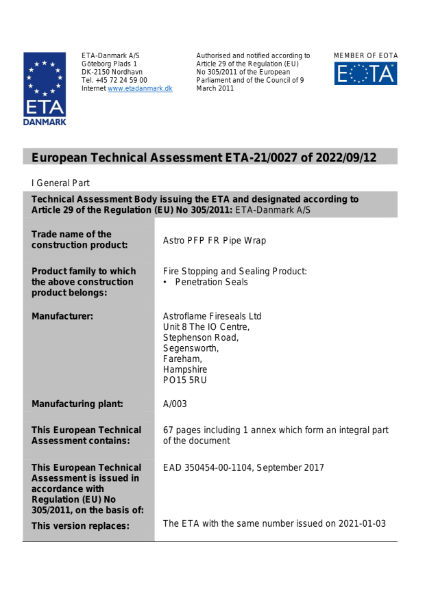

European Technical Approval (ETA)
PFP FR PIPE WRAP (ETA)
Literature
Literature type
Astro PFP FR Pipe Wrap (PDS)
Astro PFP FR Pipe Wrap (DoP)
Astro PFP FR Pipe Wrap (SDS)

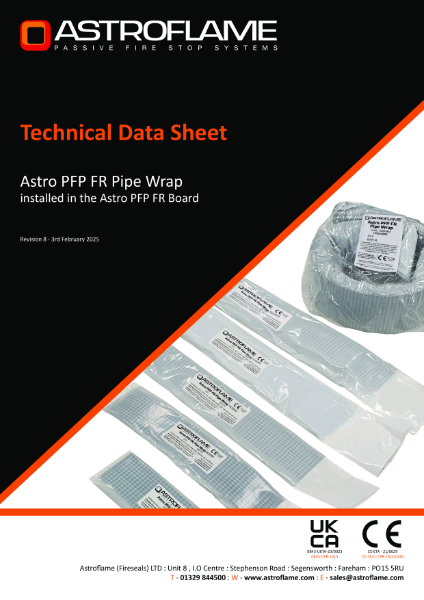

Astro PFP FR Pipe Wrap (TDS - Astro PFP FR Board)
Astro PFP FR Pipe Wrap (TDS - Astro PFP FR EX Mortar)

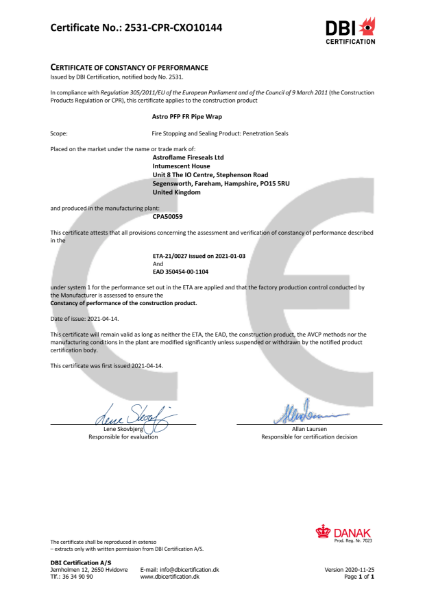

Astro PFP FR Pipe Wrap (CoC)
