ASTRO PFP FR EX MORTAR

Verified by manufacturer 6 months ago

Astroflame Fireseals Ltd Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

Fire resistant mortar.

Jump to:
+44 (0)1329 844500 Website

Application

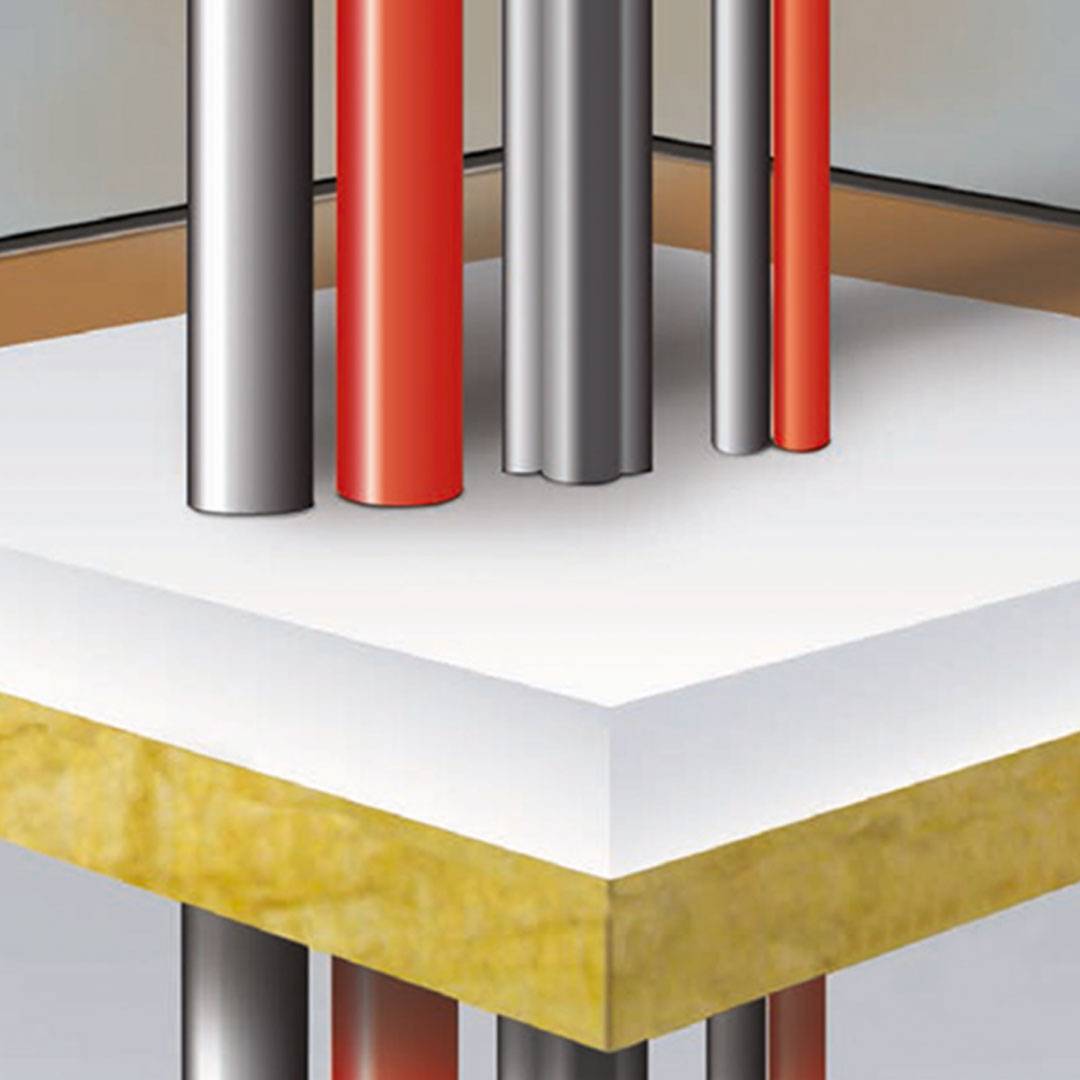

Classified in walls and floors of concrete, brick, gypsum etc.

Suitable for cables, bundled cables, cable racks, cable trays, steel, copper, alupex and plastic pipes. Also suitable for most surfaces, included concrete, bricks, Leca, steel, plastic etc, but not suitable to fitting of doors or in service openings that involve movement.


Please Note: NOT Suitable for Pizza Ovens, BBQ Bases, any types of ovens, fire places etc.

Description

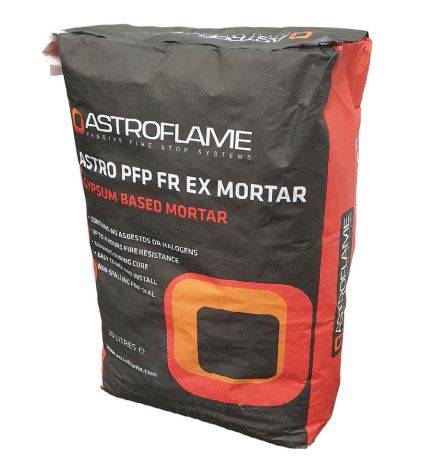

Astro PFP FR EX Mortar is a dry white powder consisting of inorganic compounds and perlite. When mixed with water, the compounds form a highly thermally insulating fire sealing compound to prevent the spread of fire and smoke through openings in fire rated walls and floors, including openings formed around building service penetrations.


Astro PFP FR EX Mortar will also maintain the acoustic design performance in walls and floors. Astro PFP FR EX Mortar expands approx. 1% by hydraulic action during curing ensuring a very tight seal around the service penetrations and the surrounding opening apertures.

Astro PFP FR EX Mortar is easy to sand or drill. The compound dries to an off-white colour which may be painted.


Features and benefits:

  • Classified in walls and floors of concrete, brick, gypsum etc.
  • Suitable for cables, bundled cables, cable racks, cable trays, steel, copper, alupex and plastic pipes.
  • Simple to apply leaving a very smooth finish.
  • Please Note: NOT Suitable for Pizza Ovens, BBQ Bases, any types of ovens, fire places etc.
  • No priming necessary prior to application in most building material substrates however metal services in contact with the seal must be corrosion protected.
  • Suitable for most surfaces, included concrete, bricks, Leca, steel, plastic etc, but not suitable to fitting of doors or in service openings that involve movement.
  • The product is certified for use in walls but it is recommended to use PFP FR Boards for these applications.
  • Fully set within 1 hour.
  • The fire performance specification of the compound has been derived when the seal has been left to cure for 1 month.
  • Extended shelf life to 18 months stored in unopened bags or pails.

General information

Color

White

Shape

Formless

Uniclass

Pr_20_31_53_43 Intumescent mortarsPrimary

CAWS

P12/342 Fire-resisting mortar

P12/37 Intumescent mortar

P12/340 Intumescent mortar

Specification data - Intumescent mortars

Material

Inorganic compounds and perlite.

Fire resistance

120 minutes.

180 minutes.

240 minutes.

Manufacturer guidance

Varies depending on construction, consult datasheet for details.

Sound insulation

Up to Rw 64 dB, depending on construction.

Reaction to fire

Class A1.

Dry density

~ 900 kg/m³ after full cure.

Durability

Class Z2.

ThermalConductivity

0.051 W/mK.

Curing

Totally hardened: Up to 30 days depending on thickness and temperature.

Third-party certification

UKCA: 0843-UKTA-23/0024, 0843-CPR-1316.
CE: CE-ETA - 21/0028, CE-2531-CPR-CXO10145.

Third party certifications

European Technical Approval (ETA)

European Technical Approval (ETA)

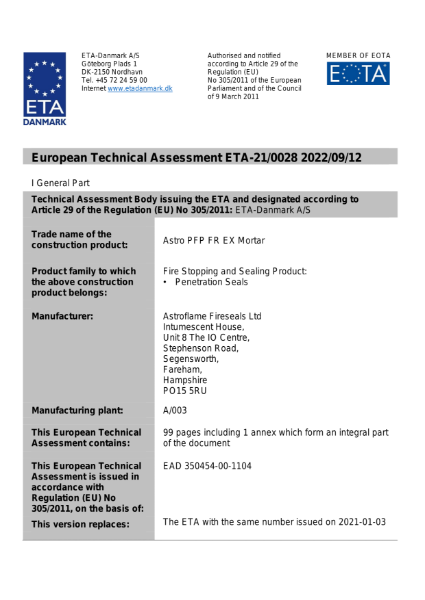

Astro PFP FR EX Mortar (ETA)

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

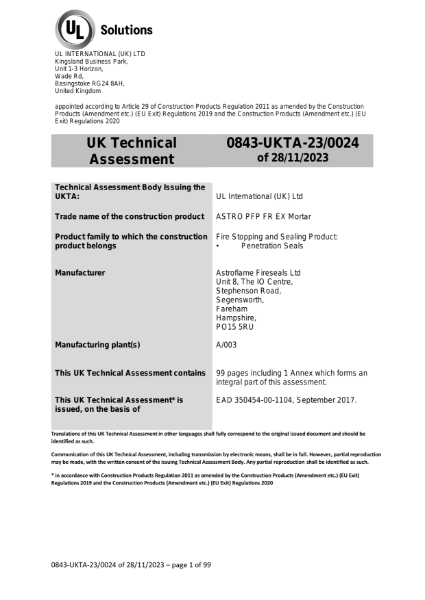

Astro PFP FR EX Mortar (UKTA)

Literature

Astro PFP FR EX Mortar (PDS)

Astro PFP FR EX Mortar (PDS)

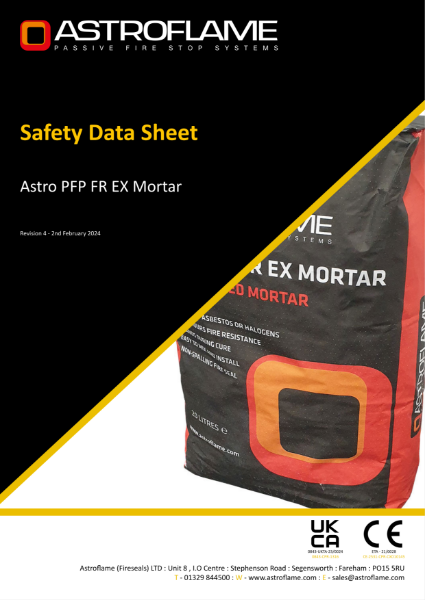

Astro PFP FR EX Mortar (SDS)

Astro PFP FR EX Mortar (SDS)

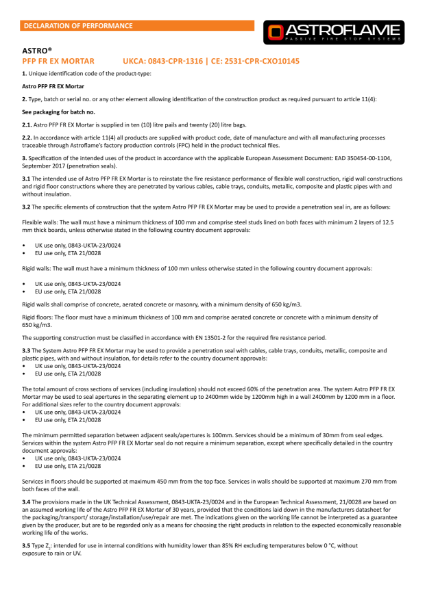

Astro PFP FR EX Mortar (DoP)

Astro PFP FR EX Mortar (DoP)

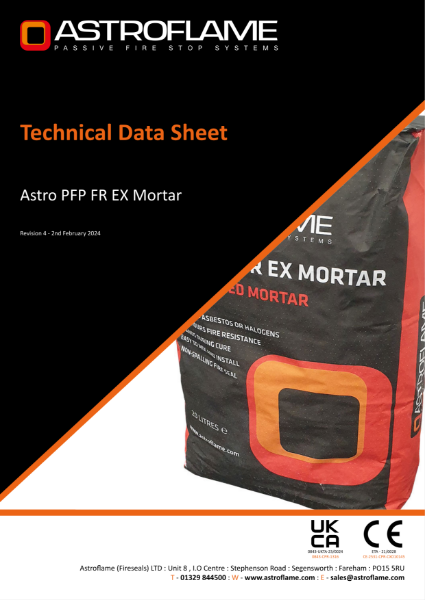

Astro PFP FR EX Mortar (TDS)

Astro PFP FR EX Mortar (TDS)

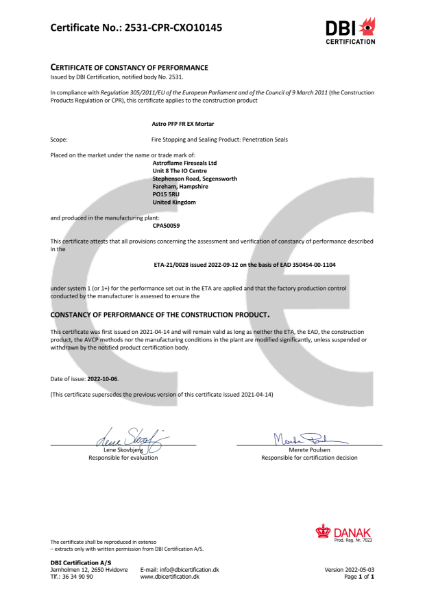

Astro PFP FR EX Mortar CE (CoC)

Astro PFP FR EX Mortar CE (CoC)

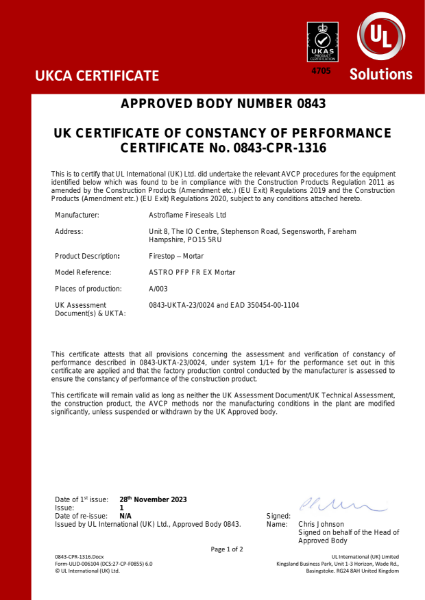

Astro PFP FR EX Mortar UKCA (CoC)

Astro PFP FR EX Mortar UKCA (CoC)
