ASTRO FRA SOCKET BOX INSERT - Fire and Acoustic Insert

Verified by manufacturer 6 months ago

Astroflame Fireseals Ltd Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

Fire and acoustic internal socket box insert.

Jump to:
+44 (0)1329 844500 Website

Application

Internal socket boxes.

Description

Astroflame's Socket Box Inserts, are manufactured from halogen free, low smoke, fire resistant, mineral fibre material and are designed to maintain the fire performance of partition (stud) wall constructions when penetrated by steel or plastic electrical back boxes. The insert will also provide resistance to the passage of sound and air movement.


In the event of a fire the Socket Box Inserts mineral fibre material will prevent the fire passing through the electrical back box aperture, providing effective fire resistance, for integrity (E) and insulation (I) from 30 to 120 minutes (EI30 to EI120) depending upon the wall construction.


Features and benefits:

  • UKCA marked certified for UK markets.
  • BS EN 1366-3 Fire Tested.
  • Fire ratings of EI30, EI60, EI90 and EI120.
  • Tested in single-layer and-double layer partition systems.
  • Tested in 75 mm-thick walls and greater.
  • Tested in "Twin Wall" fire and acoustic partitions.
  • Acoustically tested / limits air leakage.
  • Back-to-back tested in many applications.
  • Suitable and tested for both plastic pattress boxes and metal back boxes.
  • Available for single and double boxes (35 and 47 mm depths available).
  • Tested with multiple cable penetrations.
  • Pre-formed for easy installation - can be installed in seconds without assembly or adhesives.
  • No maintenance required.
  • Mess free installation - no need for adhesives, screws or drilling.
  • Can be retrofitted.

General information

Color

Cream

Finish

Other

Material

Mineral fibre

Shape

Rectangle

Length

140 mm

80 mm

Width

35 mm

47 mm

Manufacturer guidance

Depth

Height

80 mm

Uniclass

Pr_25_80_81_51 Mineral wool fire-stoppingPrimary

CAWS

P12/310 Boards

Specification data - Mineral wool fire-stopping

Material

-

Standard

To BS EN 1366-3.

Third-party certification

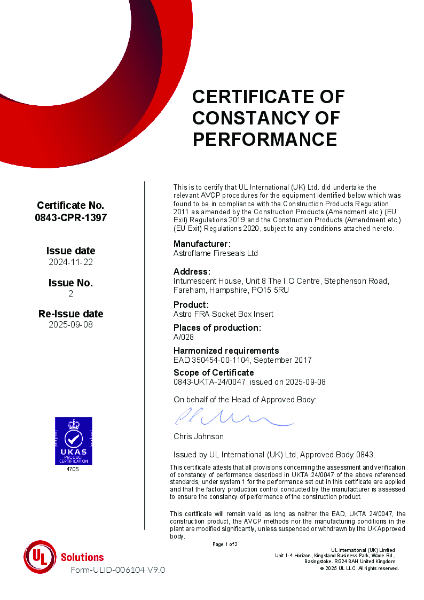

UKCA: 0843-UKTA-24/0047, 0843-CPR-1397.

Type

AFFRASOCSIN Astro FRA Socket Box Insert Single 35 mm Depth.

AFFRASOCDIN Astro FRA Socket Box Insert Double 35 mm Depth.

AFFRASOCSINX Astro FRA Socket Box Insert Single Extra Deep 47 mm.

AFFRASOCDINX Astro FRA Socket Box Insert Double Extra Deep 47 mm.

Facing

None.

Fire performance

For integrity (E) and insulation (I) from 30 to 120 minutes (EI30 to EI120) depending upon the wall construction.

Material:

Mineral fibre.

Sustainability data

Material

Mineral fibre

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

Astro FRA Socket Box Insert (UKTA)

Literature

Astro FRA Socket Box Insert (PDS)

Astro FRA Socket Box Insert (PDS)

Astro FRA Socket Box Insert (SDS)

Astro FRA Socket Box Insert (SDS)

Astro FRA Socket Box Insert (TDS)

Astro FRA Socket Box Insert (TDS)

Astro FRA Socket Box Insert (Double 35mm Diagram)

Astro FRA Socket Box Insert (Double 35mm Diagram)

Astro FRA Socket Box Insert (Double 47mm Diagram)

Astro FRA Socket Box Insert (Double 47mm Diagram)

Astro FRA Socket Box Insert (Single 35mm Diagram)

Astro FRA Socket Box Insert (Single 35mm Diagram)

Astro FRA Socket Box Insert (Single 47mm Diagram)

Astro FRA Socket Box Insert (Single 47mm Diagram)

Astro FRA Socket Box Insert (DoP)

Astro FRA Socket Box Insert (DoP)

Astro FRA Socket Box Insert (CoC)

Astro FRA Socket Box Insert (CoC)
