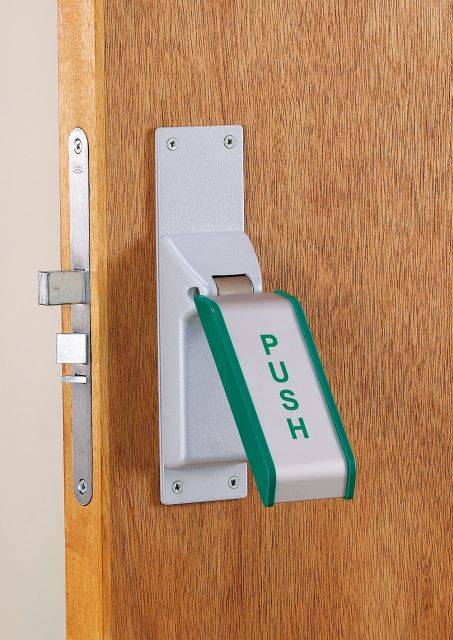

ASSURE 1520 and 8761 Pad
Description

ASSURE single-point panic escape offering two levels of security whilst ensuring safe exit at all times. Suitable for door widths 925–1300 mm.

Suitable for use on escape routes in public buildings and any area where a panic situation may arise.

Product has been successfully type-tested for conformity to all the requirements of BS EN 1125: 2008.

ASSURE 1520 Pad:

  • The door is automatically deadlocked when closed.
  • A 25 mm hardened steel deadbolt may be thrown for additional security when the premises are unoccupied.
  • Supplied with ASSA Modular 1520 escape sash lock and strike; blind rose in lieu of handle, push bar and fixings.
  • Additional door furniture including cylinder must be specified separately. May be incorporated into an ASSA master key system. Please indicate door handing.

ASSURE 8761 Pad:

  • The door is automatically deadlocked when closed.
  • Supplied with ASSA Modular 8761 deadlocking escape nightlatch and strike; blind rose in lieu of handle, push bar and fixings.
  • Additional door furniture including cylinder must be specified separately.
  • May be incorporated into an ASSA master key system. Handing is reversible on site.
  • Also available with the 8762 or 8759 lockcase in place of the 8761 (ref 8762 bar, 8759 bar).

Suitable cylinders:

Scandinavian oval or round:

  • ASSA 5-Pin.
  • ASSA Flexcore Plus.
  • ASSA 4800.
  • ASSA Twin Combi.
  • ASSA dp4400.
  • ASSA CLIQ.

Additional information for this product is available from - http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644395

General information
Uniclass 2015
Pr_30_36_08_28 Emergency exit devicesPrimary
CAWS

P21/30 Emergency exit devices

P21/571 Emergency exit devices

Specification data - Emergency exit devices
Product Reference

ASSURE 1520 Pad

Panic lock with deadbolt, for single doors.

ASSURE 8761 Pad

Panic latch, for single and double doors.

ASSURE 8761D Pad

As 8761 with packing pieces behind push bar, for use with ASSURE 200 two-point panic bolt on double doors.

Accessories

None

Modular rebate kit

10 22 84 striking plate

Product Options

Accessories:

Required when specifying ASSURE 8761D Pad.
