AssistCall Master Station - Emergency Assist Alarm call - Emergency Voice Communication System
Verified by manufacturer 1 month ago

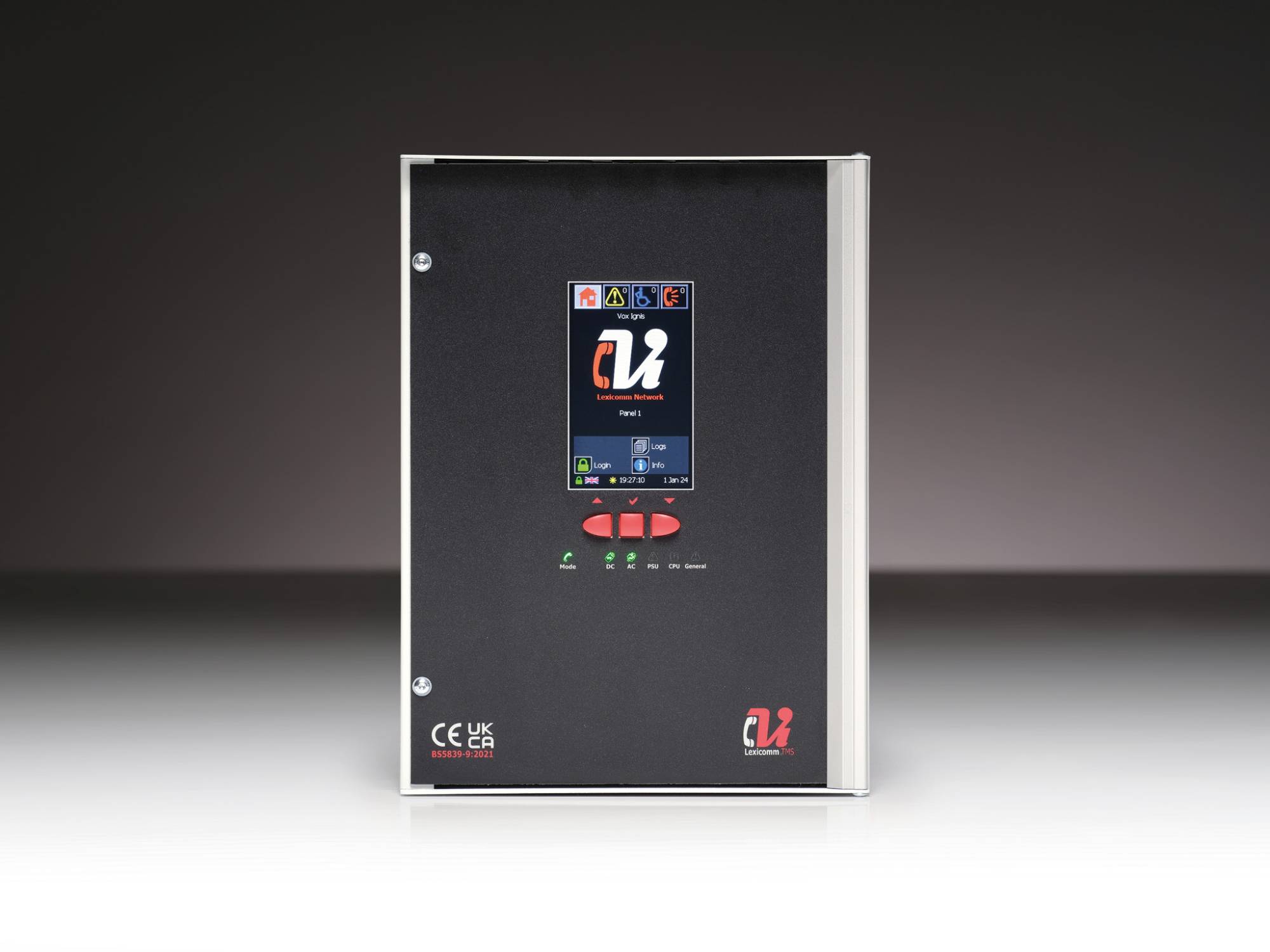

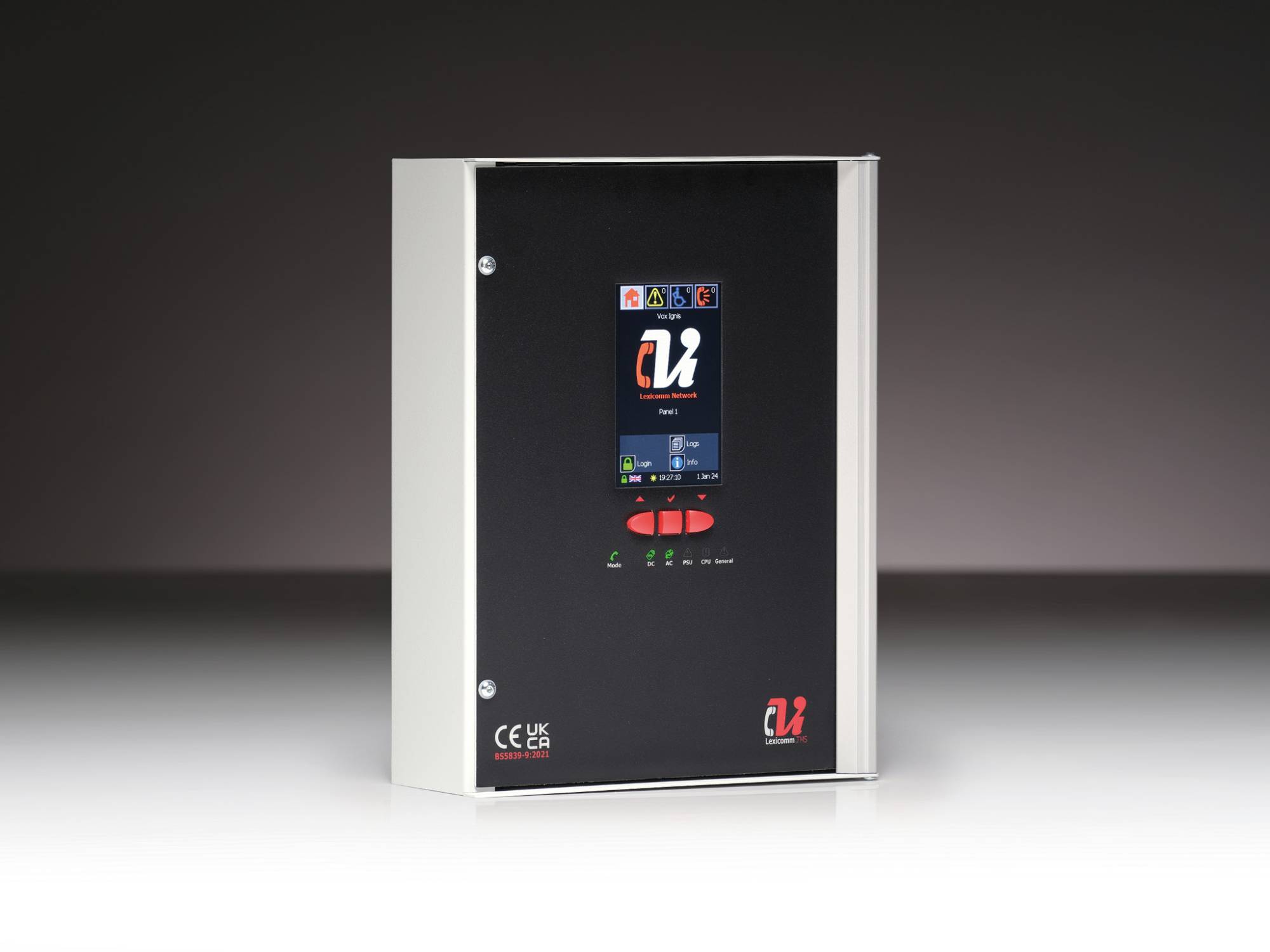

4.3" touchscreen master station for indicating assist calls with eight EVCS lines.
Application
Suitable to control or coordinate the activities of other stations in the system.
Description
The Lexicomm ViLX-ACM3 Master station can accept and display Emergency Assist Alarm calls on combined networks. The unit can additionaly accept up to eight lines of outstation, (Type A fixed phones, Type B refuge hands free points, emergency assist alarm point or jack points in Far East and Middle East applications) as required.
The touch-screen layout has four buttons allowing quick access to the main functions, and permanently displaying the number of current calls, alarms and faults.
Features and benefits:
- Fully programmable.
- Emergency assist alarm calls can be acknowledged by pressing the Icon on screen (as required by BS8300) and will return to alarm if not reset within two minutes.
- In built networking allowing it to form one of the 64 panels on a Lexicomm network installation allowing a total of 512 outstations to be accommodated.
- Each panel can be a master station or ViLX-EX8 network expander.
General information
Color | Black Silver |
Finish | Powder-coated |
Material | Zintec steel Guidance for specification option: Stainless steel. |
Shape | Rectangle |
Length | 95 mm |
Width | 220 mm |
Height | 300 mm |
Warranty description | 18 months |
Uniclass | |
CAWS | W53/355 Disabled refuge master stations |
SKU Code | ViLX-ACM3-8 |
Product range |
Specification data - Disabled refuge master stations
Classification data | |
Standard | In accordance with BS 5839-9. Manufacturer guidanceTo BS 9999 and BS 8300. |
Enclosure | |
Mounting type | Surface. |
Material | Zintec steel. |
Finish | Powder-coated. |
Colour | Black and silver. |
Number of lines | Manufacturer guidanceInsert requirements. Expandable from 2 to 512 lines. |
Communication interface | Manufacturer guidanceThe unit is compatible with Type A fixed phones, Type B refuge hands free points, emergency assist alarm point or jack points in Far East and Middle East applications as required. The ACM-8 cannot be used to answer EVC calls. |
Input voltage | 230 V a.c. 50/60 Hz. |
Supply | Monitored Open, Short, Fuses, High Impedance. |
Protection | Deep discharge, Short, Thermal. |
Battery | 12 V, 7 Ah VRSLA. 750 mA PTC. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Zintec steel Guidance for specification option: Stainless steel. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
