ASSA Smartair
Description

Smartair allows the creation of a powerful and sophisticated proximity access control system using attractive wire-free door units.

Smartair Offline Classic

The system Starter Kit includes software (for Windows XP or Vista PCs), user licence and activation key, card encoder and 50 user cards, and a portable programmer to set up the door units.

  • Licences available for 10, 30, 75 or unlimited door units per system.
  • Up to 1500 users per door.
  • Fourteen time zones with five time periods each.
  • Audit trail records the last 1,000 events.

Smartair Offline Classic UoC

Capabilities are the same as the Offline classic system, with the addition of allowing the system to be reprogrammed remotely and automatically.

The system includes an Update On Card unit. This is linked to a wall reader and connected to the system via TCP/IP. Reprogrammed User Cards then reprogram each individual Door Unit they are used on.

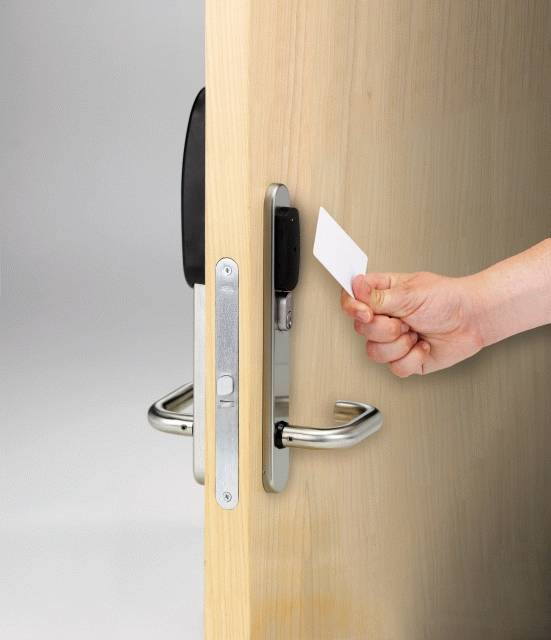

Door Unit

Door units may be used with ASSA Connect or Modular lockcases with 8 mm handle followers. They use contactless proximity access control cards to permit entry.

  • Battery powered and wire-free.
  • Suits 38-44 mm doors as standard, extended fittings for wider doors also available.
  • Mifare 1K cards as standard with 10 mm read distance. Other options available.
  • Real-time clock and calendar with time zones and scheduling capability.
  • Audit trail stores the last 1000 events.
  • Stainless steel finish.
  • External version also available, IP-54 rated.

- Four operating modes:

  • Free way.
  • First user (first authorised access converts the lock to free access).
  • Standard (access token always required).
  • Double user (two valid access tokens required for access).

Wall reader

Wall reader offering the same functionality as a door unit, for use with electric locking devices. IP-54 rated, suitable for external use. Requires 12/24 V DC power supply.

Evolution 340 lockcase

Deadlocking sash lock with a 23.5 mm hardened steel hookbolt, specifically designed for use with Smartair door units. Available with 35 mm, 50 mm and 70 mm backsets.

Additional requirements:

Mortice locks, cylinders and cylinder/thumbturn fittings (if required) need to be specified separately.

Additional information for this product is available from - http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644443&productId=644444

General information

Finish

Polished brass

Special.

Stainless steel

Standard.

Uniclass 2015

Ss_25_38_20_20 Door hardware systemsPrimary
Specification data - Door hardware systems

Product Reference

Door unit

Evolution 340 lockcase

Smartair Offline Classic

Smartair Offline Classic UoC

Wall reader

Finish

Polished brass

Special.

Stainless steel

Standard.
