Verified by manufacturer 5 months ago

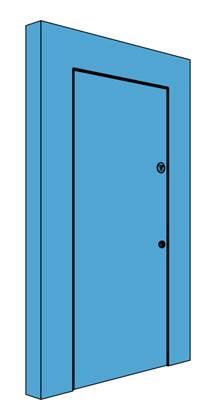

Single leaf, steel cleanroom doorset with vision panel
Typical applications for this type of door include:
The Powershield Cleanroom doorset is fully configurable with a wide range of options and features, providing a high quality door to meet a wide range of needs.
A comprehensive range of pre-engineered steel doorsets manufactured to suit project requirements. Seamless finishes are applied to all leaf edges to ensure that surfaces can be easily cleaned and that there are no areas where dirt may collect or bacteria can grow.
With exceptional aesthetic and long-lasting appeal ASSA ABLOY steel doorsets have earned a reputation for quality and high performance throughout the commercial and industrial building market.
Features and benefits:
Door leaf finished with a seamless edge to three sides, using a specialized filler.
Manufactured from high quality steel.
Overlapping astragals are required on Cleanroom double leaf doors when fire resistance is necessary or when air pressure differentials between rooms need to be regulated.
Doors feature a unique, fully-integrated astragal, ensuring no seams or fixings on the face of the door leaf.
Cleanroom Doors feature a wide range of cGMP compliant vision panels. Options include 45° vision kits for single glazing or flush glazing to one or both sides. Vision panels can be supplied with no visible fixings to ensure an easy wipe-clean surface.
Can be finished with a flush cover cap at fixing positions for a smooth easy wipe-clean surface on frames.
Door frames are supplied with a mitred, fully welded and ground-smooth connection between jambs and head.
Smartform Technology featuring a continuous "deep pocket" interlocking lock seam to all edges for superior strength and durability. Smartform Technology reduces both material and energy waste, resulting in a sustainable and environmentally friendly product.
The core is insulated and sound deadened with pre-expanded, small cell honeycomb core material and laminated under heat and pressure to the face skins.
Doors are complete with lock and hardware reinforcements engineered to give high performance throughout the life of the door.
Door edges are beveled for ease of operation and close fit.
Doors are morticed, reinforced, drilled and tapped for three templated hinges.
Powershield bespoke frame adjuster system provides enhanced security, ease of installation and a durable and permanent fixing.
Supplied fully welded for a smooth finish, optionally knockdown if too large for transportation.
Frames are morticed, reinforced, drilled and tapped for hinges and strikes.
Available in a wide range of finishes including primed, powder coated and stainless steel.
Doorsets are available in a wide range of customizable options. See technical brochure below or consult with manufacturer for more details.
To ISO 14001 standard.
Metal single doorsets.
Country of product manufacture
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
