ASSA ABLOY HS9030GAT High Speed Door - High Speed Door for Cleanrooms

Verified by manufacturer 17 days ago

Assa Abloy Entrance Systems Ltd

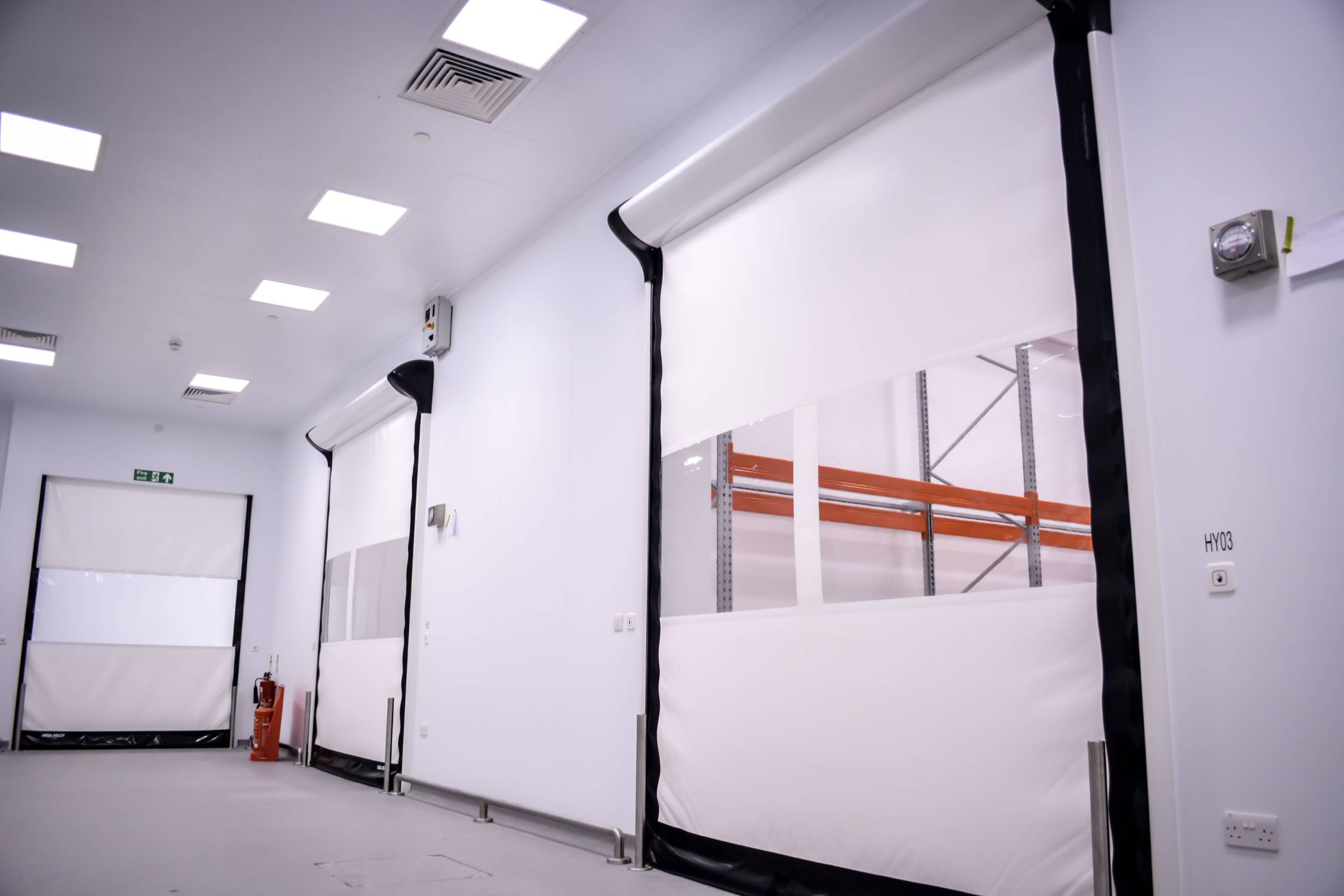

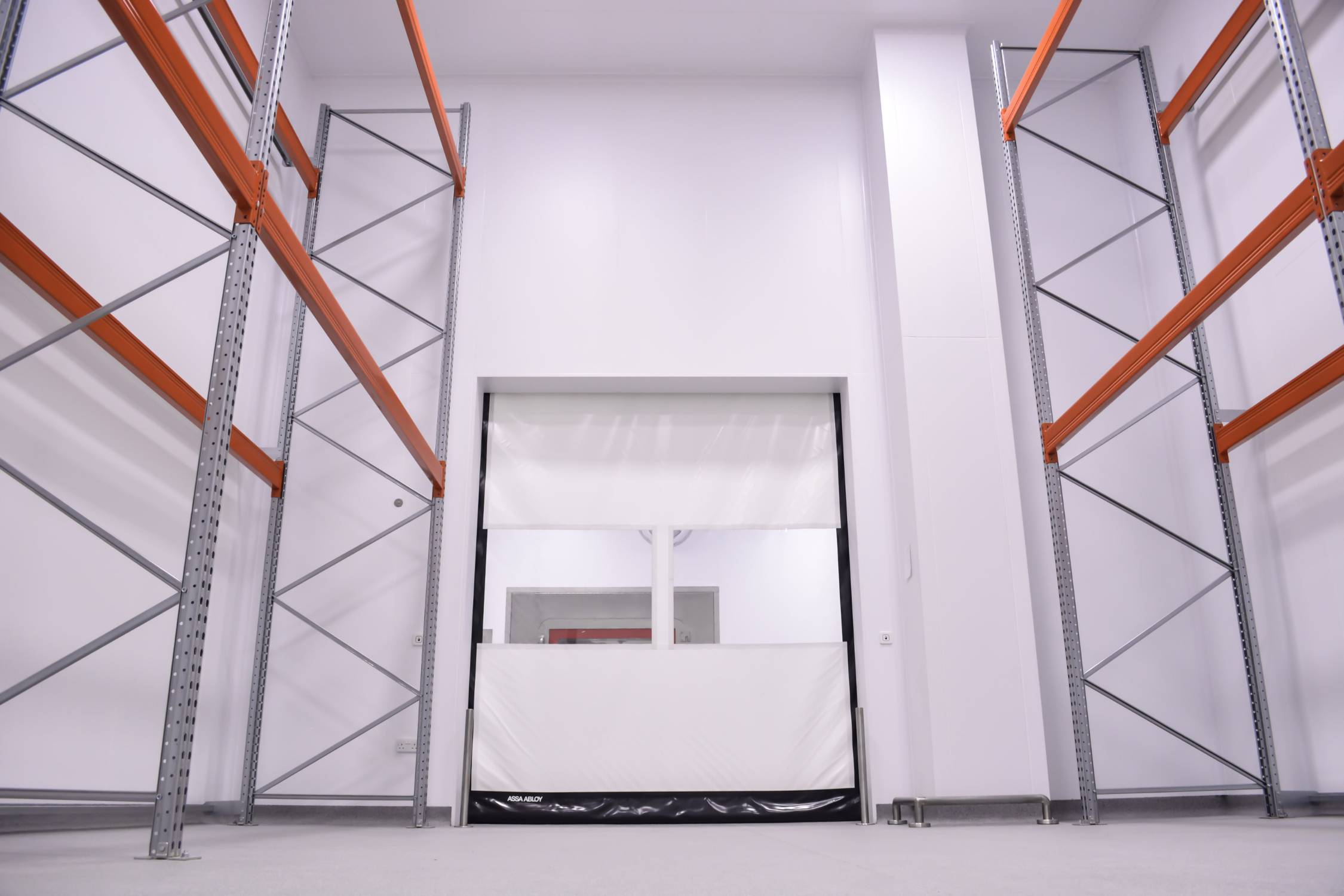

Compact airtight high speed door with integrated motor for inside environments like cleanroom applications.

Jump to:
+44 (0)333 006 3443 Website

Application

High-speed door for inside environments like cleanroom applications.

Description

A compact, airtight high-speed door featuring a modern, corrosion-resistant composite cover and an integrated motor, designed for indoor environments such as cleanrooms.

Its exclusive continuous curtain sealing within the side columns ensures a perfect seal, while a frequency converter-driven motor with soft start and stop functionality guarantees exceptional reliability and smooth operation.

The durable and versatile control unit, housed in a sturdy steel enclosure, allows for precise door setup and diagnostics.

A user-friendly display provides clear information, including an easy-to-read cycle counter.

Features and benefits:

  • Medium-sized, maximum 4000 x 4000 mm.
  • Airtight/ cleanroom applications.
  • Air permeability, Class 4.
  • Space saving design.
  • Inside usage.
  • Stainless steel 304, option galvanized steel construction.
  • Gravity drive system.
  • Opening speed up to 2.7 m/s.
  • The soft bottom profile has no rigid parts, it gives way should an obstruction be in the line of closing.
  • If the door is hit, the fabric curtain absorbs the impact and releases itself from its side guides without causing damage or being damaged itself.

General information

Color

Yellow

Red

Green

Black

White

Show more

Finish

Smooth

Material

Polyvinyl chloride (PVC)

Steel

Shape

Rectangle

Square

Width

Bespoke

Guidance for specification option:

Maximum 4000 mm.

Height

Bespoke

Guidance for specification option:

Maximum 4000 mm.

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/570 High-speed doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

Up to 2.7 m/s.

Guidance for specification option:

Dependent on door size, consult manufacturer for details.

Closing

Up to 0.5 m/s.

Format

Roll up.

Arrangement

Face-fitted across opening.

Curtain material

PVC.

Guidance for specification option:

The door curtain is constructed from one single piece of PVC fabric.

  • 0.8 mm-thick; 900 g/m².
  • High resistance; tearing resistance to DIN 53363, 600 N.
  • Tensile strength, length: 4.0 kN/50mm; width: 3.5 kN/50mm.

Top:

  • The top of the fabric is connected to a steel roll, located in the header box above the door opening.

Bottom:

  • The soft bottom beam of the door curtain does not contain any stiffeners. This makes the door curtain completely safe as it gives way if an obstruction is in the line of closing.

Side:

  • The left and right sides of the door curtain are constructed with a patented retaining strap. If the door is hit by a vehicle, the retaining strap is pulled out of the side column.
  • The self-reset function acts as a zipper to put the retaining strap back in the side column.

Manufacturer guidance

Specify colour below (Curtain colour).

Frame and guides

-

Material

Steel structure/ reinforced plastic covers.

Finish and colour

Galvanized structure/ silver-grey covers.

Operation

Automatic.

Guidance for specification option:

Consult manufacturer for automation options and insert requirements.

Manufacturer guidance

Manual opening: manual by crank operated from ground.

Accessories

None.
Window(s), clear PVC, 2 mm-thick, 640 x 580 mm.

Guidance for specification option:

Height x width.

Any combination of rows is possible dependent on specified curtain height and width; consult manufacturer's literature for details and insert requirements.

Vision panel(s), clear PVC, 2 mm-thick, 400 mm high.

Guidance for specification option:

A vision panel can be installed at any daylight width.

Number of panels allowed vertically is dependent on specified curtain height; consult manufacturer's literature for details and insert requirements.

Vision panel(s), clear PVC, 2 mm-thick, 800 mm high.

Guidance for specification option:

A vision panel can be installed at any daylight width.

Number of panels allowed vertically is dependent on specified curtain height; consult manufacturer's literature for details and insert requirements.

Manufacturer guidance

Vision panel material:

  • Weight: 2.5 kg/m².
  • Tearing resistance to DIN 53515, 100 N.
  • Tensile strength: 1.6 kN/50mm.

Dimensions

Guidance for specification option:

Insert requirements:

  • Daylight width: 1000–4000 mm.
  • Daylight height: 2000–4000 mm.

Manufacturer guidance

Consult manufacturer's literature for details of space required for maintenance and repairs (top/ motor side and front).

Other sizes available on request.

Power supply

220–240 V; single-phase; 0.75 kW; 16 A.

Guidance for specification option:

Standard.

Manufacturer guidance

Frequency: 50/ 60 Hz.

Degree of protection: operator: IP56; control unit: IP65.

Thermal Conductivity:

6.02 W/m²K.

Curtain colour

Signal Yellow, RAL 1003.

Pure Orange, RAL 2004.

Flame Red, RAL 3000.

Ultramarine Blue, RAL 5002.

Gentian Blue, RAL 5010.

Show more

Manufacturer guidance

RAL colours are as close as possible to the official RAL HR collection. Maximum deviation is 1.0 DE.

Differing colours for drum cover, side column cover and motor cover can be specified; insert details as required.

Operating temperature

+5°C to +40°C.

Safety

Photocells in side columns.
Flexible soft bottom beam including wireless detection device.
Break-away and self-reset function.

Wind load

To EN 12424, Class 1 (300 N/m²); maximum wind load while closing 50 N/m².

Air permeability

To EN 12426, Class 4 (3 m³/m²h), overpressure; Class 3, underpressure (6 m³/m²h).

Guidance for specification option:

At 50 Pa.

Water penetration

To EN 12425, Class 3 (>50 N/m²).

Guidance for specification option:

Water spray for 20 minutes.

Connectivity

Not required.

ASSA Abloy Insight.

Guidance for specification option:

Consult manufacturer for details.

Sustainability data

Material

Polyvinyl chloride (PVC)
Steel

Literature

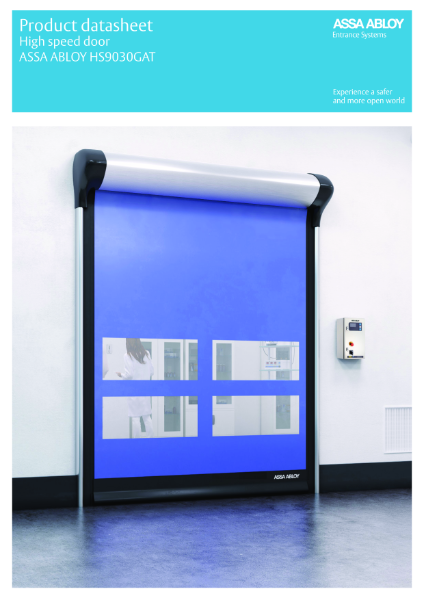

ASSA_ABLOY_HS9030GAT_Product_Datasheet

ASSA_ABLOY_HS9030GAT_Product_Datasheet

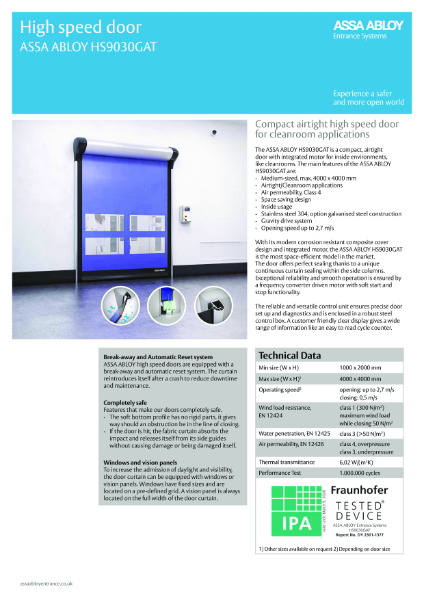

ASSA_ABLOY_HS9030GAT_Product_Leaflet
