ASSA ABLOY - Exidor TB400 Touch bar EN1125 Panic Bar for Double Doors
Verified by manufacturer 4 months ago
TB400
TB400

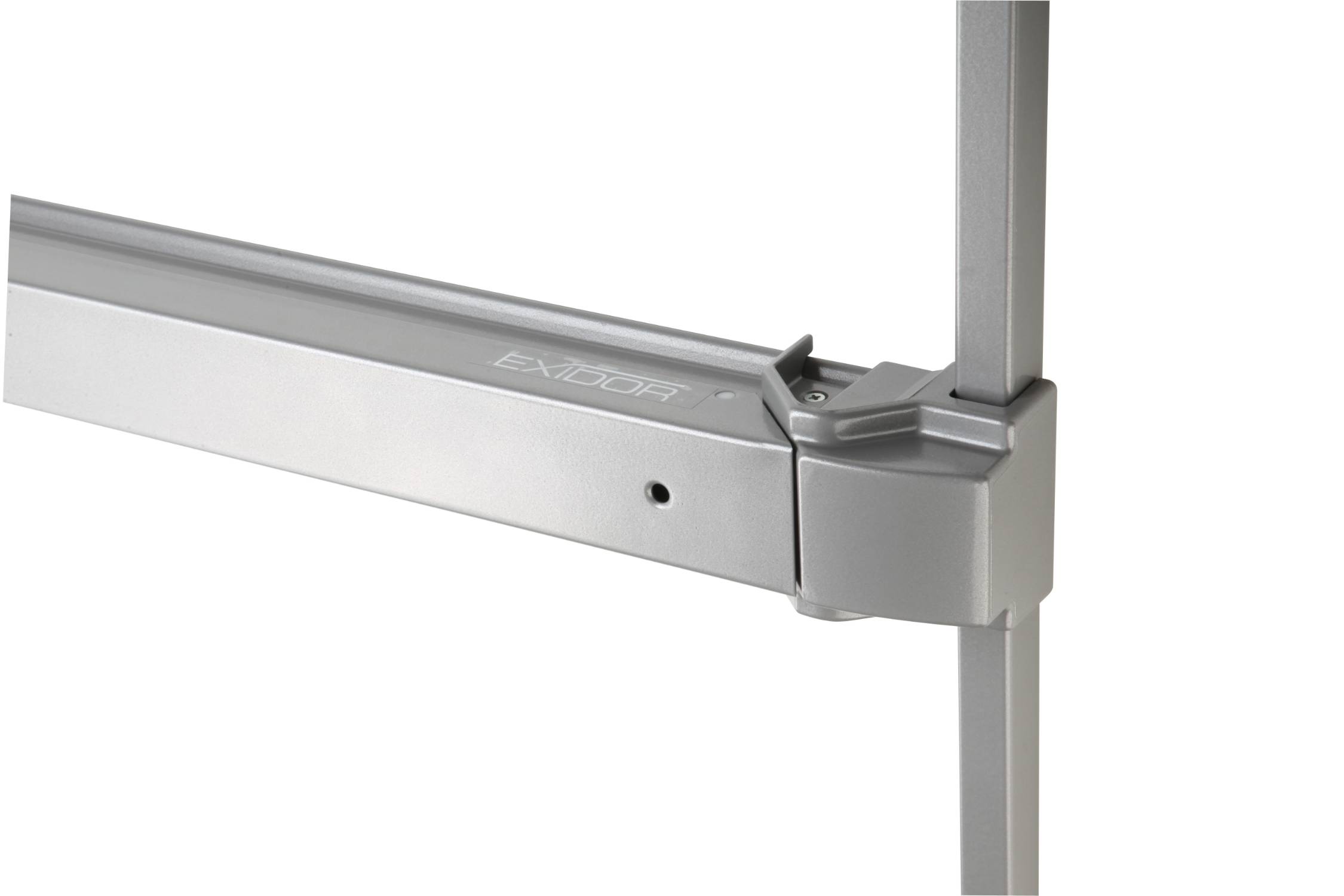

Modular touch bar rebated double door set with three point locking.
Application
Suitable for fire doors.
Description
Modular set for doors up to 900 mm wide, consisting of a touch bar panic latch (400) and a touch bar panic bolt with vertical Pullman latches (402).
This product is supplied with timber door fittings as standard, though alternative options are available for steel and aluminium doors.
Features and benefits:
- Non-handed.
- CE marked for safety.
- Surface mounted.
- Suitable for fire doors.
- Deadlocking latch bolt.
- Other sizes available on request.
- Pullman latches giving a smoother latching action.
General information
Color | Silver White Black Green |
Shape | Rectangle |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/32 Panic exit devices P21/30 Emergency exit devices P21/577 Panic exit devices P21/571 Emergency exit devices |
Specification data - Panic exit devices
Standard | To BS EN 1125.Certifire. |
Classification grades (minimum) | |
Category of use | To BS EN 1125, grade 3. |
Durability | To BS EN 1125, grade 7. |
Door mass | To BS EN 1125, grade 6. |
Suitability for use on fire and smoke doors | To BS EN 1125, grade 1. |
Safety | To BS EN 1125, grade 1. |
Corrosion resistance | To BS EN 1125, grade 3. |
Security | To BS EN 1125, grade 2. |
Projection of bar | To BS EN 1125, grade 2. |
Type of bar operation | To BS EN 1125, grade B. |
Field of door application | To BS EN 1125, grade A. |
Colour | Silver.White/ Green.Black/ Green.Stainless Steel.Brass. |
Execution | Fasteners for hardware. |
Lock/ latch type | Touch bar panic latch. |
Dimensions | 653.5 x 79 x 62 mm. |
Sustainability data
Contains Red List materials | No |
Recyclability | Manufacturer guidanceMetals widely recycled. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
Literature
400 Series Brochure
