NBS Source

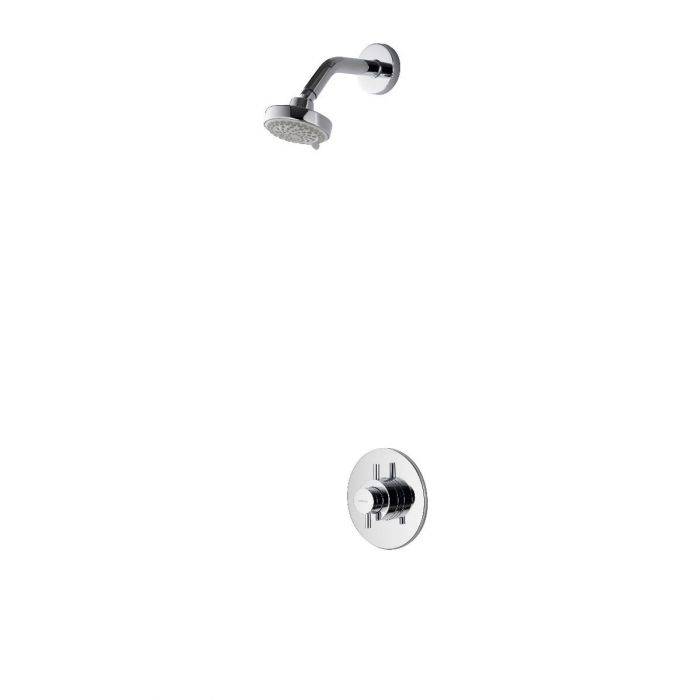

Aspire DL concealed mixer shower with wall fixed head

Verified by manufacturer 15 days ago

Aqualisa Products Ltd

Built-in dual lever mixer shower with a wall fixed shower head.

Jump to:
BIM object icon
+44 (0)1959 560000 Website

Application

Suitable for all water systems.

Description

Built-in dual lever mixer shower with a wall fixed shower head.


Features and benefits:

  • 105 mm Harmony shower head.
  • All-metal valve.
  • Dual lever controls for water flow and temperature.
  • Eco-spray setting can deliver water savings of up to 25% without compromising the showering experience.
  • 4 spray patterns including an eco-spray setting.
  • Easy to install with adjustable inlet centres and suits all approved domestic UK water systems.

General information

Color

Silver

Finish

Chrome

Material

Metal

Plastic

WarrantyDescription

Five year

For valve; two year guarantee for head and kit.

Size

165 x 165 x 65 mm

  • Fixed head diameter : 105 mm.
  • Fixed head width from the wall: 250 mm max.
  • Diameter of the wall plate: 165 mm.

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/40 Shower units

N13/375 Shower units

Product range

Mixer Showers

Specification data - Shower fittings package

Form

Concealed mixer shower with wall fixed head.

Materials

-

Finish and colour

Chrome plated.

Flow rate (maximum)

28.2 L/min. at 3 bar.

Water supply temperature (maximum)

65°C.

5–20°C, cold supply; 55–65°C, hot supply.

Shower head

105 mm.

Projection

250 mm.

Fixed head width from the wall: 250 mm max.

Wall plate

165 mm.

SKU

ASP001CF.

Environmental information

Country of material origin

Italy

Country of product manufacture

Italy

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC
-

1

Revit
-

1
