ASLON Gravel Grid - Gravel Mat
Verified by manufacturer 2 months ago
ISO 9001 Quality Management
Certificate type

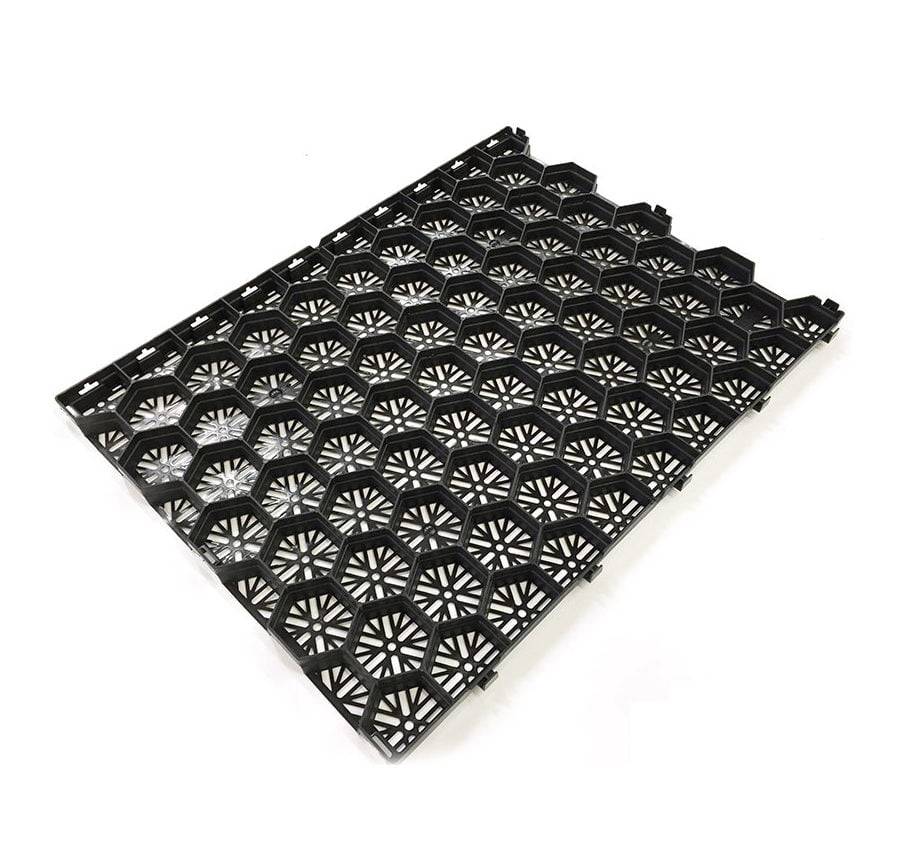

Interlocking gravel grid.
Application
- Suitable for use on gravel driveways, paths, camping sites, golf courses, parking spaces and more.
- Manufacturer recommends the installation of a weed protection fabric under the grids before laying.
Description
Interlocking gravel grid manufactured from recycled polypropylene.
Features and benefits:
- Provides reinforcement and retention to areas with gravel.
- Interlocking format provides easy installation.
- Available in a range of colours.
- Reduced gravel migration.
- High water permeability.
- Maintenance free.
- Environmentally friendly.
- Can be placed, removed and re-placed if required.
- Suitable for gravel sizes from 10-32 mm (it is recommended to over-fill the grids by 20 mm - consult manufacturer for details).
General information
Color | Black White |
Material | Polypropylene |
Shape | Rectangle |
Length | 790 mm |
Width | 592 mm |
Height | 3 mm |
Warranty description | Five year |
Uniclass |
Product range |
Specification data - Plastics cellular pavers
Physical properties | |
Material | Recycled polypropylene (PP). |
Colour | Black.Green.White. |
Top surface finish | Plastic matting. |
Profile | |
Paver type | Hexagonal infills. |
Interlocking features | Required. |
Dimensions | |
Plan size | 790 x 592 mm. |
Thickness (minimum) | 30 mm. |
Load carrying capacity (minimum) | 256 tonne/m² (unfilled); 3186 tonne/m² (gravel filled). |
Recycled content (minimum) | 100%. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
Literature
Gravel Grid - Data
