Ashzip Standing Seam Roofing System - Standing seam roofing system
Verified by manufacturer 5 months ago
BBA Agrément Certificate
Certificate type
Standing seam roofing system.
Application
Suitable for new build and refurbishment roofing applications in the residential, commercial and industrial sectors.
Description

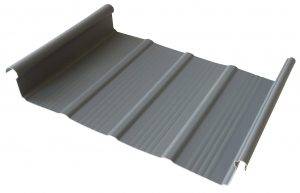

Standing seam roofing system designed to achieve pitches as low as 1.5°. Available in a wide range of materials including 3000 series aluminium, G275 prepainted galvanized steel, copper and zinc.
Features and benefits:
- Available in 300 mm and 400 mm standard cover widths and a range of rib configurations.
- BBA approval incorporating thermal expansion test requirements.
- Thermally efficient GRP Nylon halter bracket system option available.
- Halter spacing constant, irrespective of curvature of the sheet.
- No fixing penetrations through the weathering face of the sheet, all fixings are below the sheet.
- Specialist site welding details available.
- Can be naturally curved or pre-curved depending on required radius- convex, concave and waveform curvature achievable.
- Tapered and tapered curved sheets available.
General information
Color | Grey Beige Blue Gold Copper |
Finish | Coated Lacquered Brushed Mill |
Material | Aluminium Steel Copper Zinc |
Shape | Other |
Length | Bespoke |
Width | 400 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal |

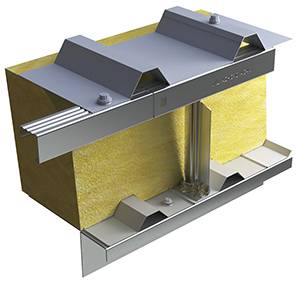

Specification data - Metal profiled sheet self-supporting roof covering systems
Liner sheets | |
Material | 0.7mm solid steel liner.0.7mm pan perforated steel liner.Long Span structural decking profile.Long Span Web perforated structural decking.Long Span structural tray. |
Spacers | Bar and bracket and extruded halter.Bar and bracket and nylon halter.Bar and bracket ABV and nylon halter. |
Acoustic insulation | Manufacturer guidanceA range of acoustic build-ups are possible; consult manufacturer and insert requirements. |
Thermal insulation | Manufacturer guidanceInsert requirements. |
External sheets | |
Material | Aluminium sheets.Steel sheets.Copper sheets.Zinc sheets.Stainless steel. |
Glazing | None.Zip up rooflights, 400 mm wide.Zip up rooflights, 800 mm wide. |
System accessories | Single skin verge clip.Ridge filler block.Ridge shroud.Drip angle.Ridge retainer.Eaves filler block.Liner profile filler.Verge clip.One piece verge extrusion.Verge channel.Ridge support zed.Verge tolerance clip.Proprietary maintenance access walkway. |
Colour/ Finish | Stucco embossed. Guidance for specification option: Aluminium finish. A typical 0.9 mm thick stucco embossed aluminium is normally expected to last the life of the building without maintenance – BS 5427: 1976. PVF2 / PVdF. Guidance for specification option: Aluminium finish. This finish usually provides a long-term aesthetic life in excess of 25 years on an aluminium substrate. Available in a spectrum of RAL colours. Consult manufacturer and insert requirement. ARS (Abrasive Resistant System). Guidance for specification option: Aluminium finish. An abrasion-resistant coating for aluminium with good handling characteristics. 20 years aesthetic life span can be achieved. Plastic Coatings (Steel). Guidance for specification option: The established high performance coating on pre-painted steel. Tata HPS 200 ULTRA is available with a projected lifespan of up to 40 years. Mill finish. Guidance for specification option: Aluminium finish. A typical 0.9 mm thick plain mill finish aluminium is normally expected to last the life of the building without maintenance – BS 5427: 1976. |
Cover Width | 300 mm. 400 mm. |
Sustainability data
Country of material origin | Spain |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
BBA Agrément Certificate

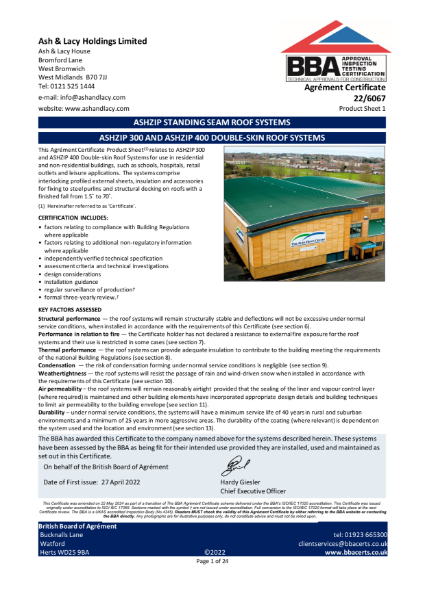

BBA Certificate - AshZip Standing Seam
