ASF Concrete Infill Bollard - Security Bollard
Verified by manufacturer 14 days ago

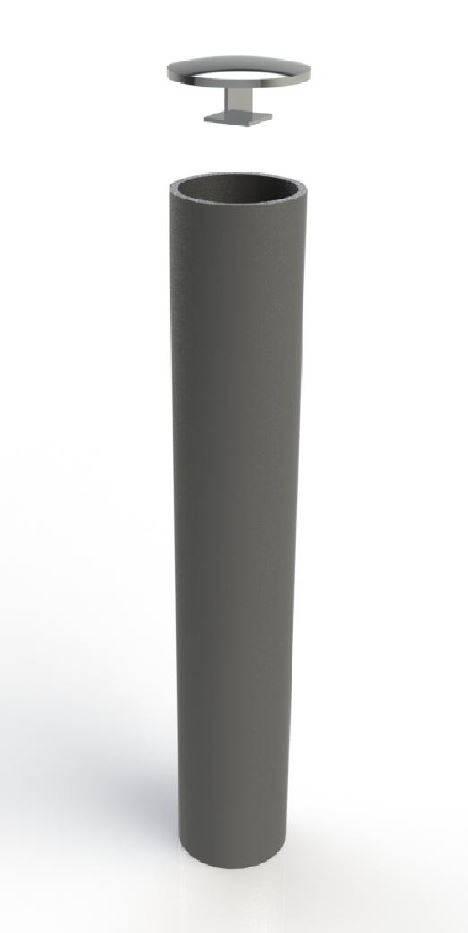

Steel bollard for onsite concrete infill with cap to cast into the ground and retrospectively fill with concrete before fixing the cap.
Application
A utilitarian product to be used anywhere that bollard impact is a greater risk than standard:
- Loading bays
- Storefronts
- ATM machines
- Entrance/exit ways
- Corner protection
- Wall Protection
- Parking bays
- Parking
- Footpaths
- Shopfronts
Description
- Concrete infill bollard manufactured from carbon steel for use in a variety of applications.
- Heavy duty steel bollard shank manufactured to any length and any standard tube diameter.
- Cap supplied loose with tag on underside so that it can be cast into the concrete infill before it is fully set, giving the finished appearance of a fully capped steel bollard
- Can also be supplied in stainless steel
- Can be manufactured to any height, root depth or tube diameter
- Machined recess can be added
- Painted Bands or Reflective bands can be added
General information
Color | Other Beige Black Blue Bronze |
Finish | Galvanized |
Material | Steel |
Shape | Circle Triangle Square Rectangle Oval |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | Q50/31 Bollards Q50/190 Bollards |
SKU Code | ASF concrete infill bollard |
Product range |
Specification data - Carbon steel bollards
Classification data | |
Dimensions | |
Size and profile | 114 mm, 168 mm. Guidance for specification option: Diameter. Manufacturer guidanceOther sizes can be manufactured to suit individual site needs. |
Length below ground | 1500 mm. |
Accessories | None. Chain eyes/ lugs. Machined recesses. Reflective bands. Logo. Ornamental detail. Reflectors. Single eye bolt. Two eye bolts. |
Colour/ Finish | Galvanized steel. Powder coated. Guidance for specification option: Any standard RAL or BS colour, insert requirements. |
Materials | Carbon steel from recycled sources. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
Literature
ASF Concrete Infill Bollard
