ASF 8009 Stainless Steel/ Steel Cycle Stand - Cycle Stand
Verified by manufacturer 20 days ago

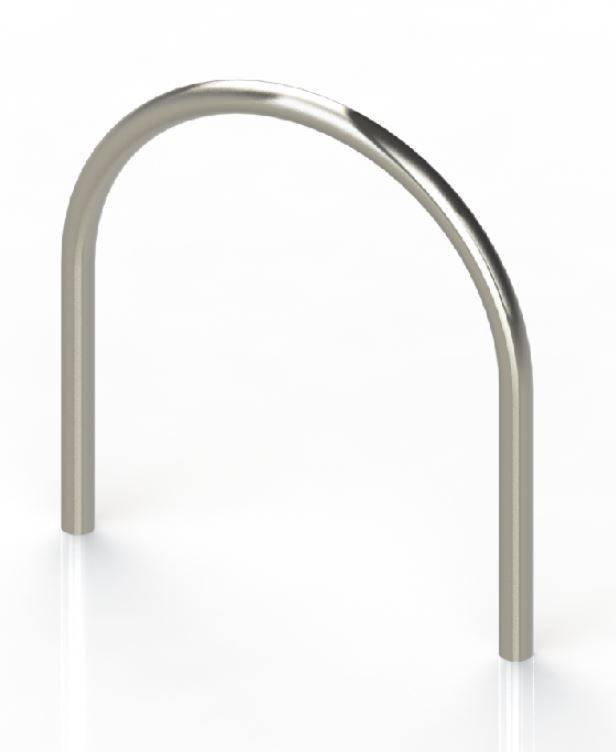

Half round stainless steel cycle stand.
Application
Versatile and flexible applications: Pavements, parking-lots, outside of malls, petrol stations, etc.
- Public Realm
- Education: Schools, Colleges and Universities
- Urban and rural applications
- Inside Cycle Shelters
- Can also be used as barrier systems
Description
Half round stainless steel cycle stand.
Features and benefits:
- These cycle parking hoops can be used to chain up a bike, but can also form permanent barrier systems, demarcation rails and leaning posts.
- ASF can adapt all cycle stands to comply with the Equalities Act with the addition of contrasting colours and reflective banding.
- Can also be manufactured in mild steel and finished galvanised and polyester powder coated if desired
- Can have solid bar internal reinforcement in the leg sections for increased ram raid protection.
- Base plate or root fixed available
- Can be supplied as part of a toast rack assembly
- Tapping rails or feature sign plates can be added
- Logo's, coats of arms, signage and wording can be incorporated
- LED lighting can be made integral to the hoops
- Bespoke adaptions are available
- Removable options are available
General information
Color | Silver Beige Black Blue Bronze |
Finish | Polished |
Material | Steel Stainless steel |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | Q50/32 Cycle stands Q50/210 Cycle stands |
SKU Code | ASF 8009 |
Product range |
Specification data - Stainless steel cycle stands
Classification data | |
Stand type | Cycle. |
Number of stands | One. |
Base | Base plate fixing. Guidance for specification option: For fixing above ground. Root base fixing. Guidance for specification option: For fixing below ground. |
Finish as delivered | Manufacturer's standard. Guidance for specification option: Satin brush finish. Highly polished. Guidance for specification option: Optional. Bead blasted. Guidance for specification option: Optional. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85%. |
Frame (tube) diameter | 42 mm. 48 mm. Guidance for specification option: Standard. 60 mm. 76 mm. |
Overall height | 1100 mm. |
Height (above ground) | 800 mm. Guidance for specification option: (300 mm below ground). |
Width | 48.3 mm. Guidance for specification option: diameter. |
Depth | 750 mm. |
Type | Stainless steel, marine grade 1.4401 (316). |
Accessories | Not required. Reflective banding. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel Stainless steel |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
Literature
Literature type
ASF Stainless Steel and Steel Cycle Stands
ASF 8009 Cycle Stand
