ASF 502 Cast Iron Seat

Name: ASF 502 Cast Iron Seat
Brand: Architectural Street Furnishings part of WB White Foundry
SKU: tPGLs8J5mHQzJUoAgcxezU

Verified by manufacturer 27 days ago

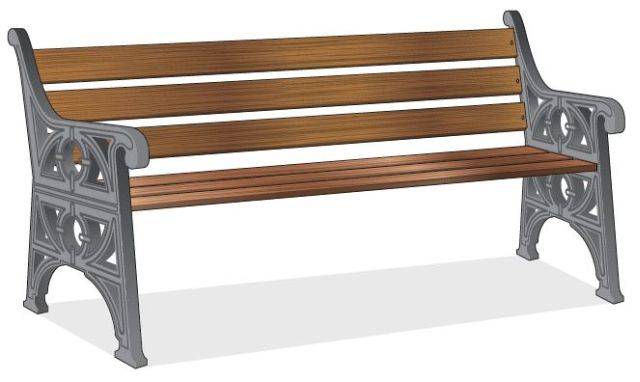

Cast iron seat with timber slats and seat ends.

Jump to:

Description

Cast iron seat with timber slats and seat ends.

Features and benefits:

Using engineering grade cast iron for the seat ends, and FSC certified Iroko hardwood (non-endangered timber) for the slats, this is a traditional, strong, durable and elegant seat offering practicality, looks and environmental responsibility.
ASF can also manufacture the seats with steel slats and hidden fixings for both increased vandal protection and the freedom to paint the whole seat in a colour that compliments the scheme it inhabits.
Logos, emblems, coats of arms etc. can be incorporated, consult manufacturer and insert requirements.

Color	Black
Finish	Gloss Guidance for specification option: Rust resistant gloss; oven backed, black. Weathershield rust resistant gloss, manufacturers standard. Manufacturer guidance Available in a range of RAL colours, consult manufacturer and insert requirements.
Material	Cast iron Guidance for specification option: Legs/ seat ends: Cast iron (grade 250) Wood Guidance for specification option: Hardwood slats (with FSC certification).
Length	1800 mm
Height	850 mm

Uniclass	Pr_40_30_29_85 Street and site seatsPrimary
CAWS	Q50/34 Seats Q50/225 Seats

SKU Code	ASF 502

Product range	Seats

Classification data
Length	1.8 m.
Base	Anchor.
Material	Cast iron. Iroko hardwood.
Finish as delivered	Gloss. Guidance for specification option: Rust resistant gloss; oven backed, black. Weathershield rust resistant gloss, manufacturers standard.
Colours	Black. Manufacturer guidance Available in a range of RAL colours, consult manufacturer and insert requirements.
Accessories	Logo.
Adaptations	Not required. Hidden fixings. Steel slats. Curved. Guidance for specification option: Consult manufacturer and insert requirements. Increased length. Guidance for specification option: Consult manufacturer and insert requirements. Reduced length. Guidance for specification option: Consult manufacturer and insert requirements.
Anchor fixing	Above ground via resin anchor bolts.
Dimensions	1800 x 850 x 630 mm. Guidance for specification option: l x h x d.

Material	Cast iron Guidance for specification option: Legs/ seat ends: Cast iron (grade 250) Wood Guidance for specification option: Hardwood slats (with FSC certification).
Recyclability	100
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
Expected Life	100 year
