Verified by manufacturer 27 days ago

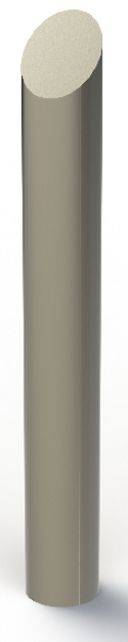

Stainless steel bollard with mitred top.
Stainless steel bollard with chamfered top.
ASF 5006/ 114 is available in any height and in any standard tube or pipe size. Manufactured in stainless steel as standard but also available in mild steel, finished galvanized and painted/ powder-coated if required.
Features and benefits:
Adaptations:
Consult manufacturer and insert requirements, for a range of adaptations that can be achieved such as (but not limited to):
Color | Silver Other |
Finish | Satin Guidance for specification option: Manufacturers standard. Polished Guidance for specification option: Optional. Brushed |
Material | Stainless steel Guidance for specification option: Marine grade 1.4401 (316). |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | 1200 mm 1300 mm 1470 mm 1500 mm 1800 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/31 Bollards Q50/190 Bollards |
SKU Code | ASF 5006 |
Product range |
Classification data | |
Dimensions | |
Size and profile | 89 x 89 mm. 101 x 101 mm. 114 x 114 mm. Guidance for specification option: Standard diameter 141 x 141 mm. 168 x 168 mm. Bespoke. Guidance for specification option: Insert requirements. |
Height | 1200 mm. Guidance for specification option: Standard overall height. Height above ground 900 mm. 1300 mm. 1470 mm. 1500 mm. 1800 mm. Bespoke. Guidance for specification option: Insert requirements. |
Length below ground | 300 mm. |
Top profile | Mitred. |
Base | Manufacturer guidanceManufactured to meet site requirements. |
Finishes | |
Worked finishes | 1K/ 2K Satin polished to BS EN 10088-2. Satin brushed. Bead blasted. Highly polished. Bespoke. Guidance for specification option: Finish to any site requirement. |
Applied finishes | Not required. Retro-reflective tape. Transfers. |
Accessories | Not required. Coats of arms. Logos. Signage. Words/ lettering. Rail apertures. Chain eyes. Rope fixings/ cores. |
Ram raid protection | Not required. Required. |
Lighting | Not required. LED lighting required. Guidance for specification option: Consult manufacturer and insert requirements. Manufacturers Standard material: stainless steel |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stainless steel Guidance for specification option: Marine grade 1.4401 (316). |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
